VS 2001

Technical Handbook

Installation

Page 62 Marconi Proprietary information

P/N: 779-0373/02

Revision 02

3.4.2 Installation of the control panel in a motorcycle

In the motorcycle configuration the control panel is mounted in a support that has

the dimensions shown in the Fig. 3.10.

For the fixening of the remote control assembly on the motorcycle in the control

panel support there are four threaded holes. The installation requirers an

opportune bracket.

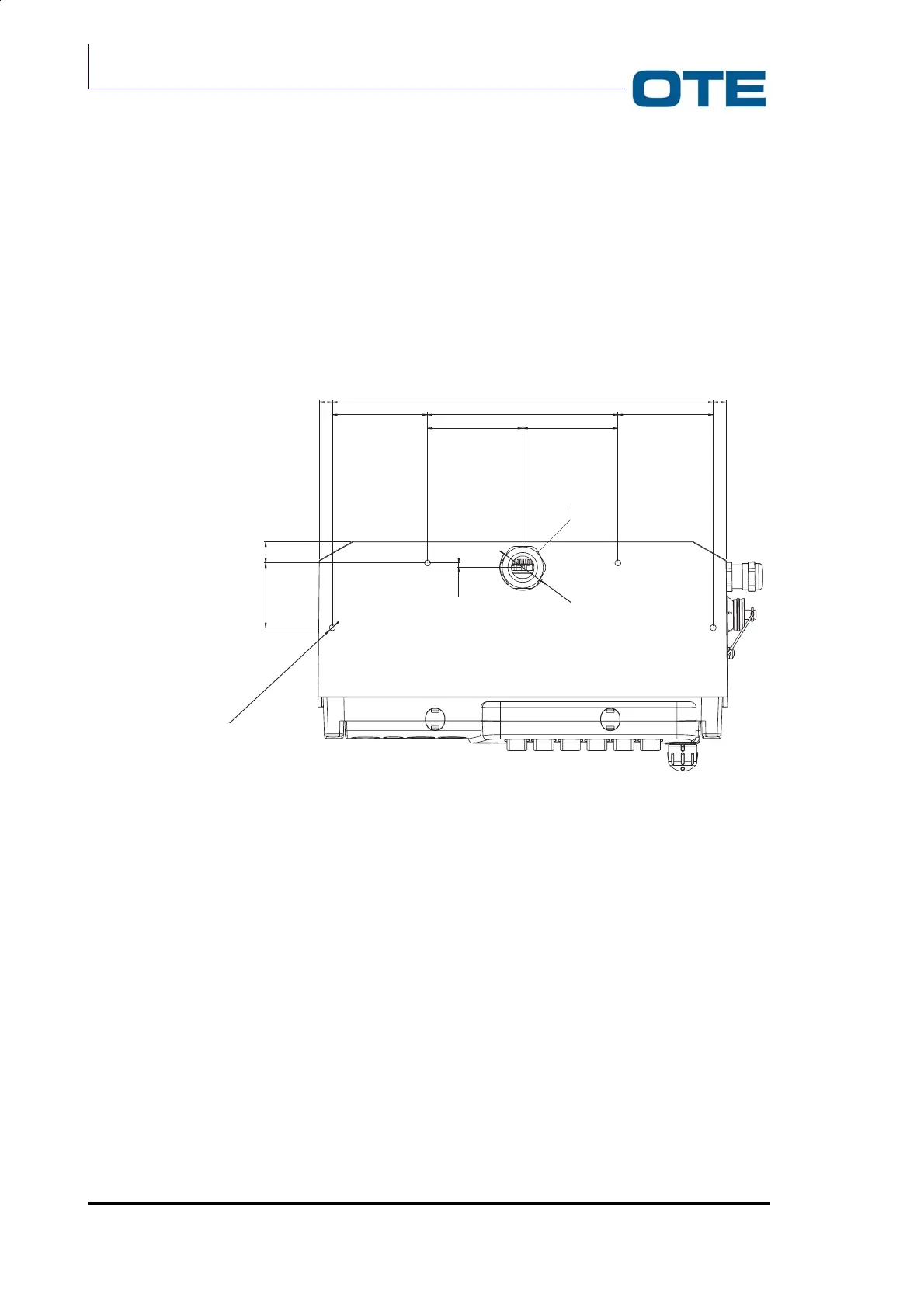

Fig. 3.10: Remote control assembly

The control panel support presents the cables for the connection with the other

blocks of the system. These connection are displayed in the Fig. 3.11.

100

±0,10

200

±0,10

= =

± 0,10

2,4

N° 4 fori M4

prof. utile 9mm

Ø 24

Pressacavo PG13,5
