1.3.1 E-WHERE/FPG1/A Module
For the localization of the vehicle VT in which the VT equipment is installed we can
install also, the E-WHERE/FPG1/A interface.
The E-WHERE module (P/N 771-0940/01) is used in the vehicle configuration
equipped with a GPS E-WHERE module.
The equipment by means of the interfacing with FPG1/A, allows the use of
equipment like VT and VS (vehicle radio).
E-WHERE module make available the PEI serial line for a connection for PC on
FPG1/A; it avoid possible conflict with the GPS equipment that also used, of
default, the PEI serial line.

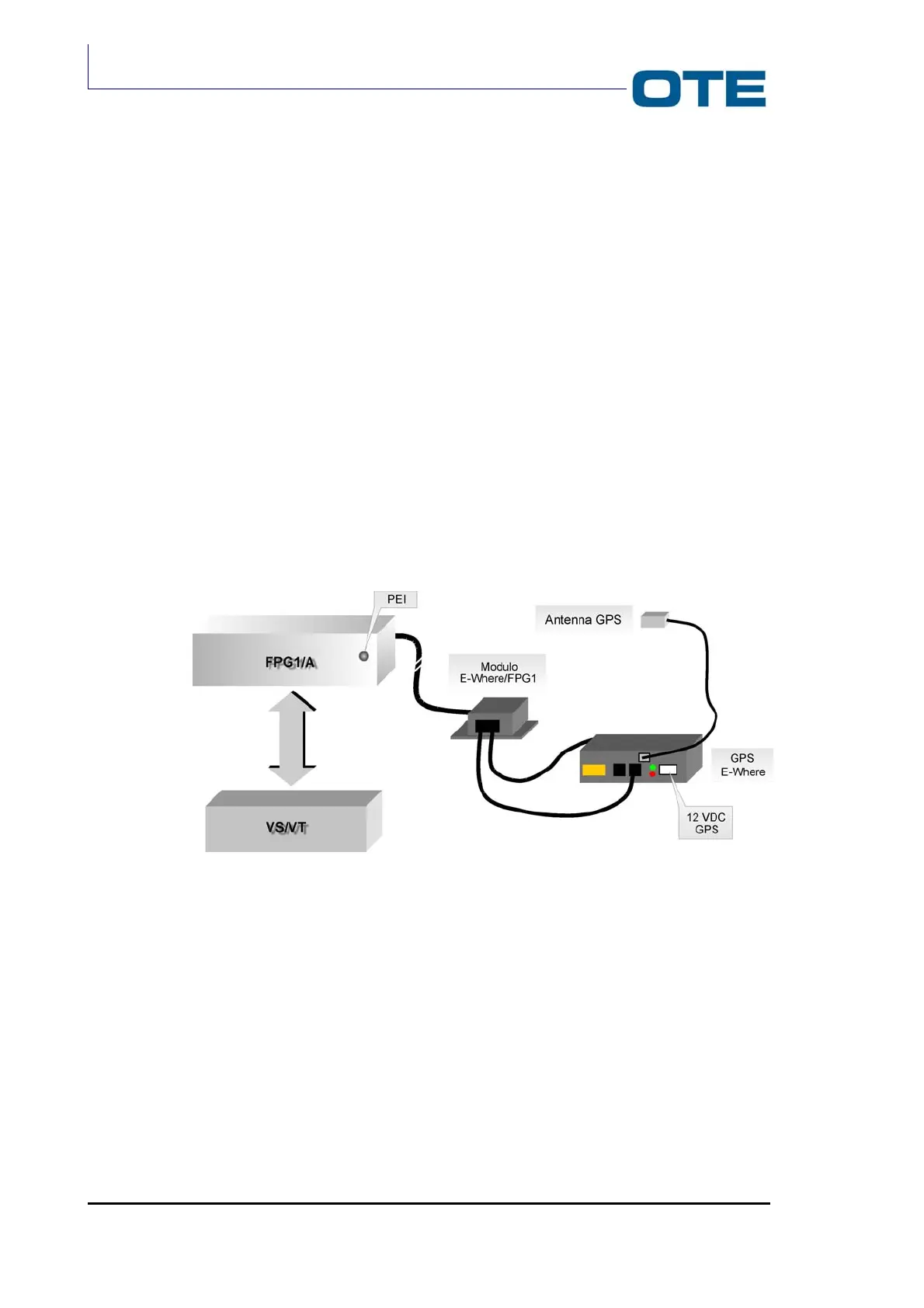

In the Fig. 1.3 the configuration is shown:
Fig. 1.3: E-WHERE/FPG1/A Module
