3.4.1.3
Installation with lite bracket
Follow the instructions of the next list referring to Fig. 3.9.

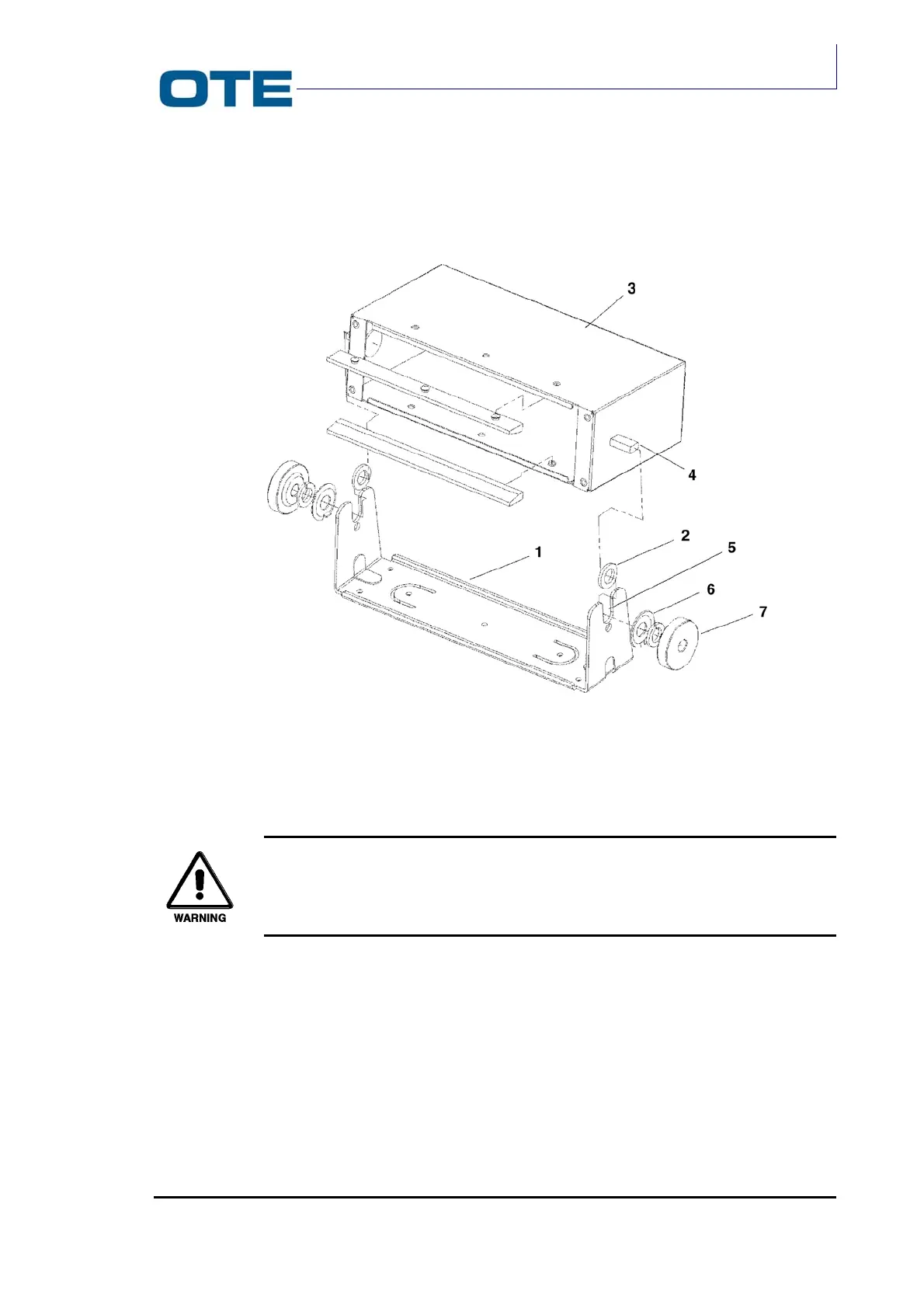

Fig. 3.9: Installation of the Control Panel in the lite bracket
1. Mount the bracket (1) to the surface where the control panel is required.
By means of holes fix the bracket (1) with a fastening system that fits
with the mechanical characteristics of the support base.
2. Stick the washers (2) on the box (3), fitting in pins (4).
3. Mount box (3) on bracket (1), using the relevant holes (5).
4. Mount on pins (4) washers (6).
5. Mount knobs (7).
6. Connect cables to the rear connectors of the control panel.
7. Mount the control panel by fixing the captive screws.
