(Only for Lead-Acid Batteries)
Check the uid level in the battery and top it up if required.
❒ Flat screwdriver, wide
1. Open the battery strap and remove the cover.
2. For standard version: Raise the battery case slightly higher than the drive unit sustainer and
pull it out.
With drive wheel suspension: Pull up slightly on the locking handle at the bottom rear of the
battery case and unlock the slide, then pull out the slide with the battery case.
3. Pull out the fuse.
4. Disconnect all cables.
5. Lift the batteries out by the handles and set them down on a level surface.
6. The uid level is visible from the outside. Compare it against the “Min” and “Max” labels on
the front and rear of the batteries.
7. If the uid level is too low, open the cover of the corresponding cell.
8. Add distilled water until the uid level is between the “Min” and “Max” labels.
Properly reassemble all components upon completion of the work.

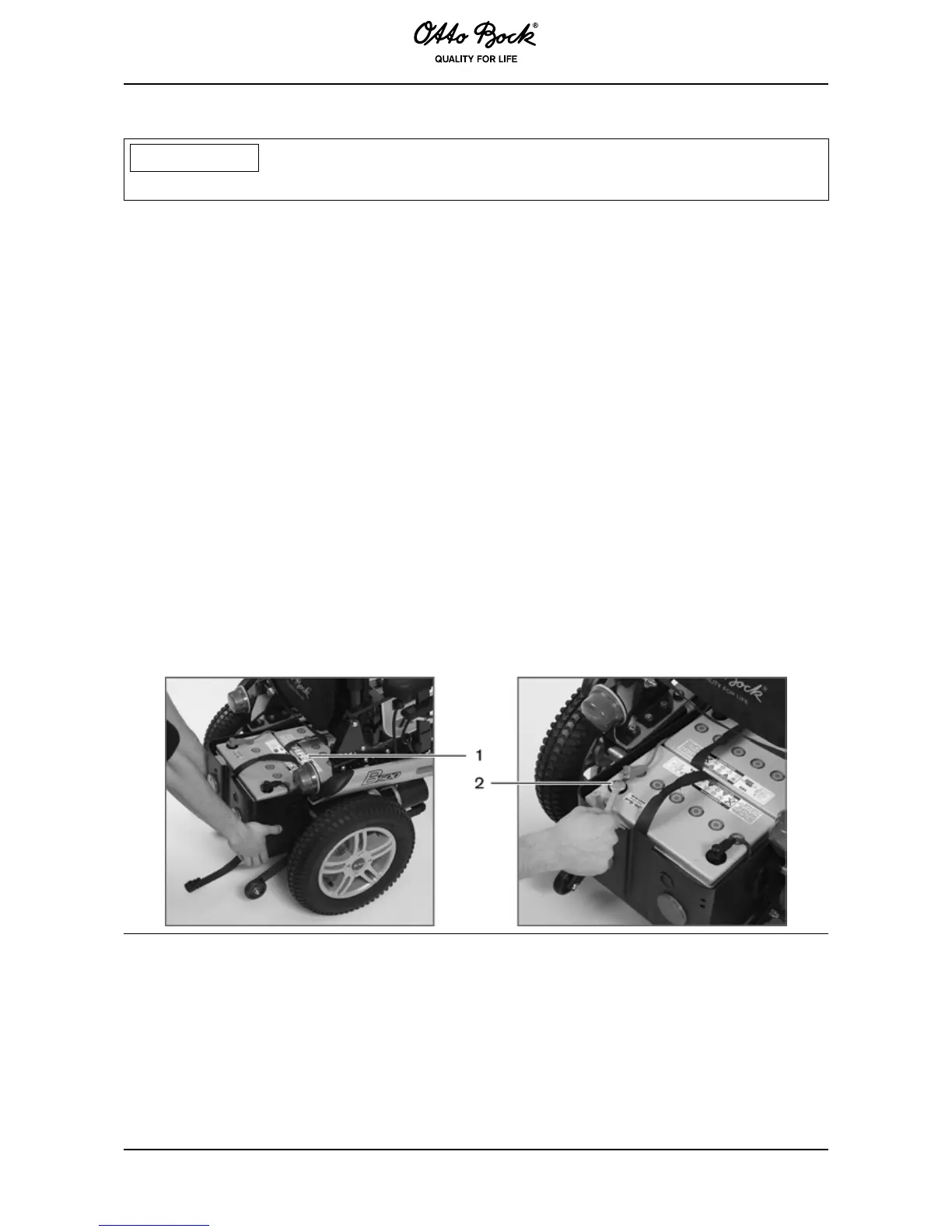

1 Battery case with gel batteries installed
2 Disconnect cables
