 (Option)
The lap belt is available for both seat models, and is attached to the sides in a similar manner
as the four-way chest strap but not to the back of the seat frame.
For the standard seat, the belt is attached and screwed to the bearing plate with a bracket and
eyelet.
On the Recaro® seat, the lap belt is attached to the sides in the same way as the four-way chest
strap.
  
6.12 Mechanical Seat Function
 
An adapter for the gas compression spring is attached to the seat frame of the B500/B500-S
power wheelchair.

❒ Allen wrench, size 3
❒ Open-end or combination wrench, size 10


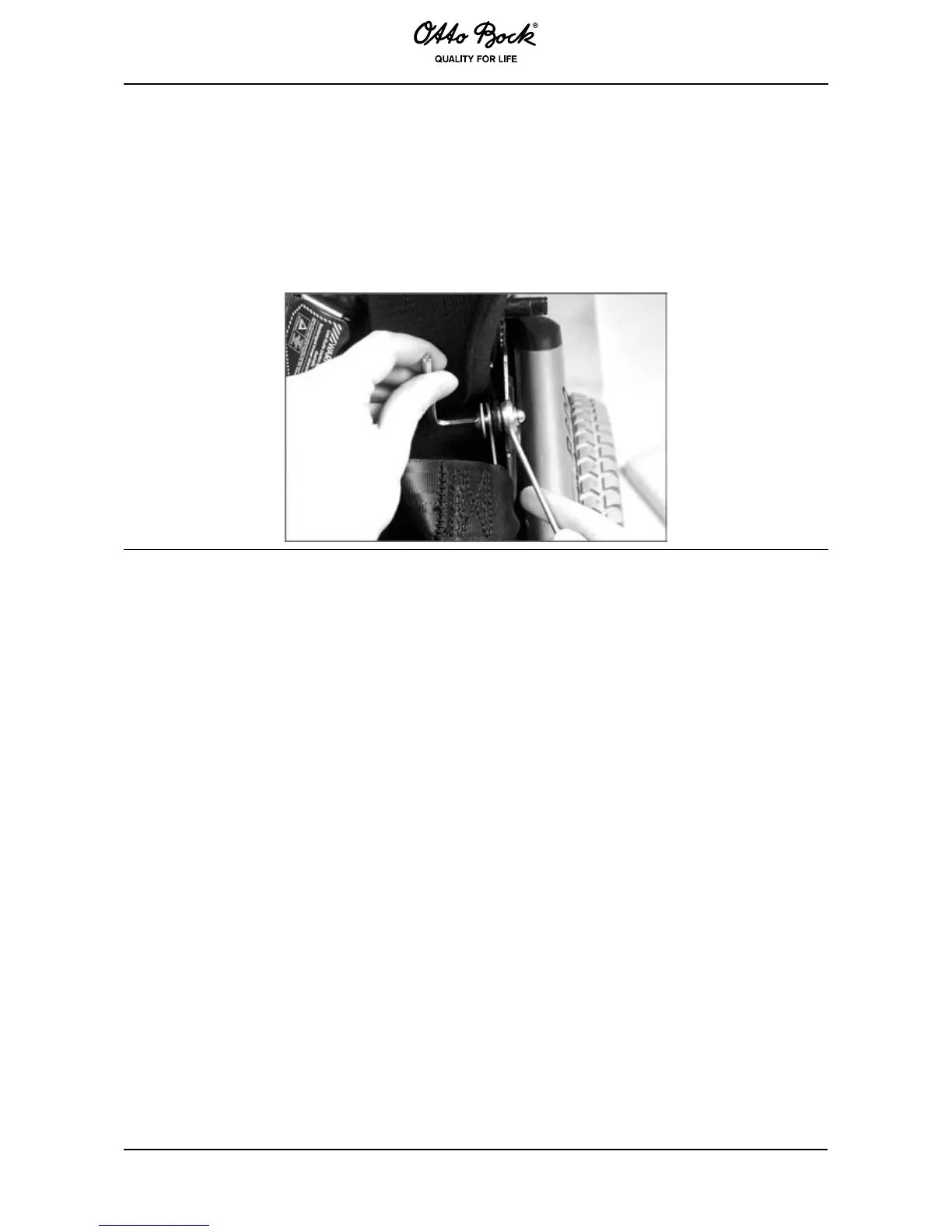

1. Insert the upper end of the gas compression spring between the two lugs on the adapter.
2. Insert a spacer between the lug and spring on either side.
3. Insert the metal sleeve and screw into place.
4. Attach the Bowden cable (see Section 6.12.2).
