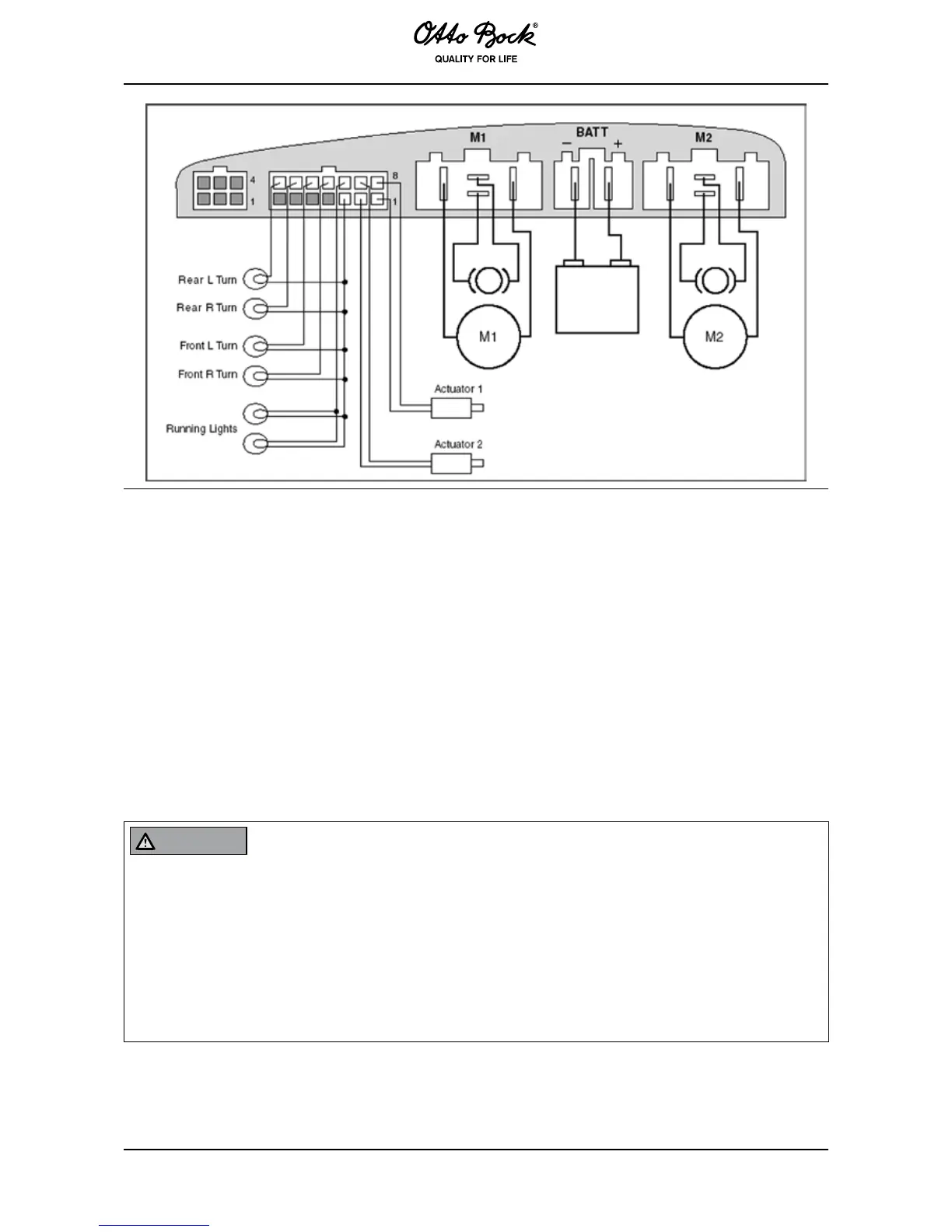

The pin assignment of the 14-pin controller plug is as follows:
Pin 1 Seat motor 1 + Pin 8 Seat motor 1 –
Pin 2 Seat motor 2 + Pin 9 Seat motor 2 –
Pin 3 B + Pin 10 Headlights –
Pin 4 B – Pin 11 Direction indicator light front right –
Pin 5 Multi-function input 1 Pin 12 Direction indicator light front left –
Pin 6 Multi-function input 2 Pin 13 Direction indicator light rear right –
Pin 7 Multi-function input 3 Pin 14 Direction indicator light rear left –
7.3 Programmable Parameters
Modied parameter settings in
the conguration can lead to changes in driving characteristics. In particular, changes to the speed,
acceleration, braking or joystick settings can lead to unexpected and therefore uncontrollable operating
performance with a risk of accidents.
Always test the driving characteristics of the power wheelchair after conguration / programming is
complete.
Programming must only be completed by authorised personnel. Neither Otto Bock nor the control
unit manufacturer are liable for damages (especially in combination with special controls) caused by
programming that was not properly / professionally adapted to the abilities of the wheelchair user.
