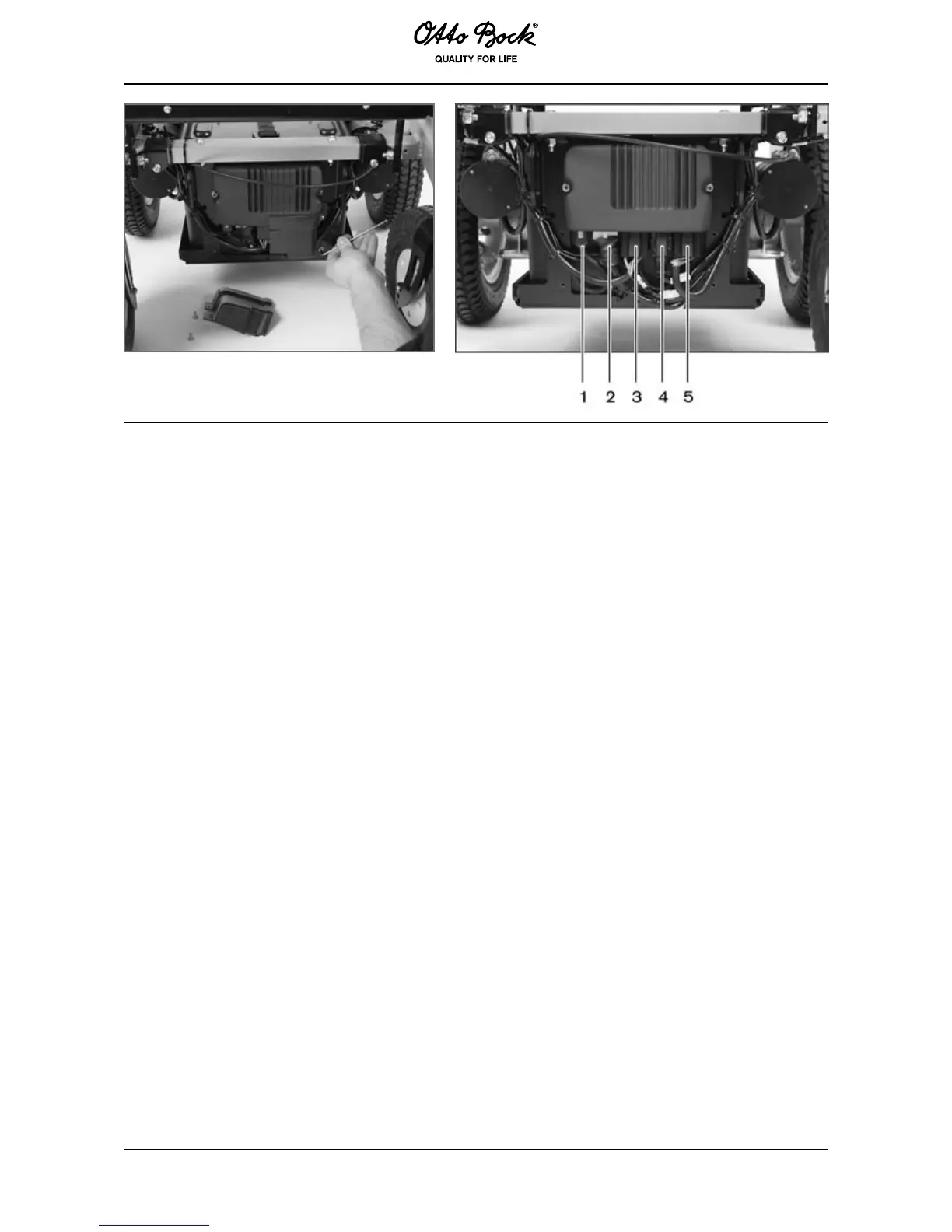

1 Control device connector
2 Lighting / actuator connector
3 Motor 1 connector
4 Battery connector
5 Motor 2 connector
6.5 Side Panels
A side panel attachment device is located on the left and right sides of the seat frame. The side
panels with arm rests are inserted into these adapters. The height and position of the side panels
can be individually adapted to the arm length of the wheelchair user.
❒ Allen wrench, size 3
1. Loosen the two Allen head screws (Figure 9).
2. Change the position of the arm rests by moving them forward or back, or remove and re-
place them if required.
1. Loosen the lock cams in the C-prole (Figure 9).
2. Adjust / replace the arm rest and tighten the lock cams.
