36
(Option)
NOTICE
Use suitable objects such as wooden
blocks to secure the B500/B500-S power wheelchair against sliding or tipping. The drive wheels must
rotate freely.

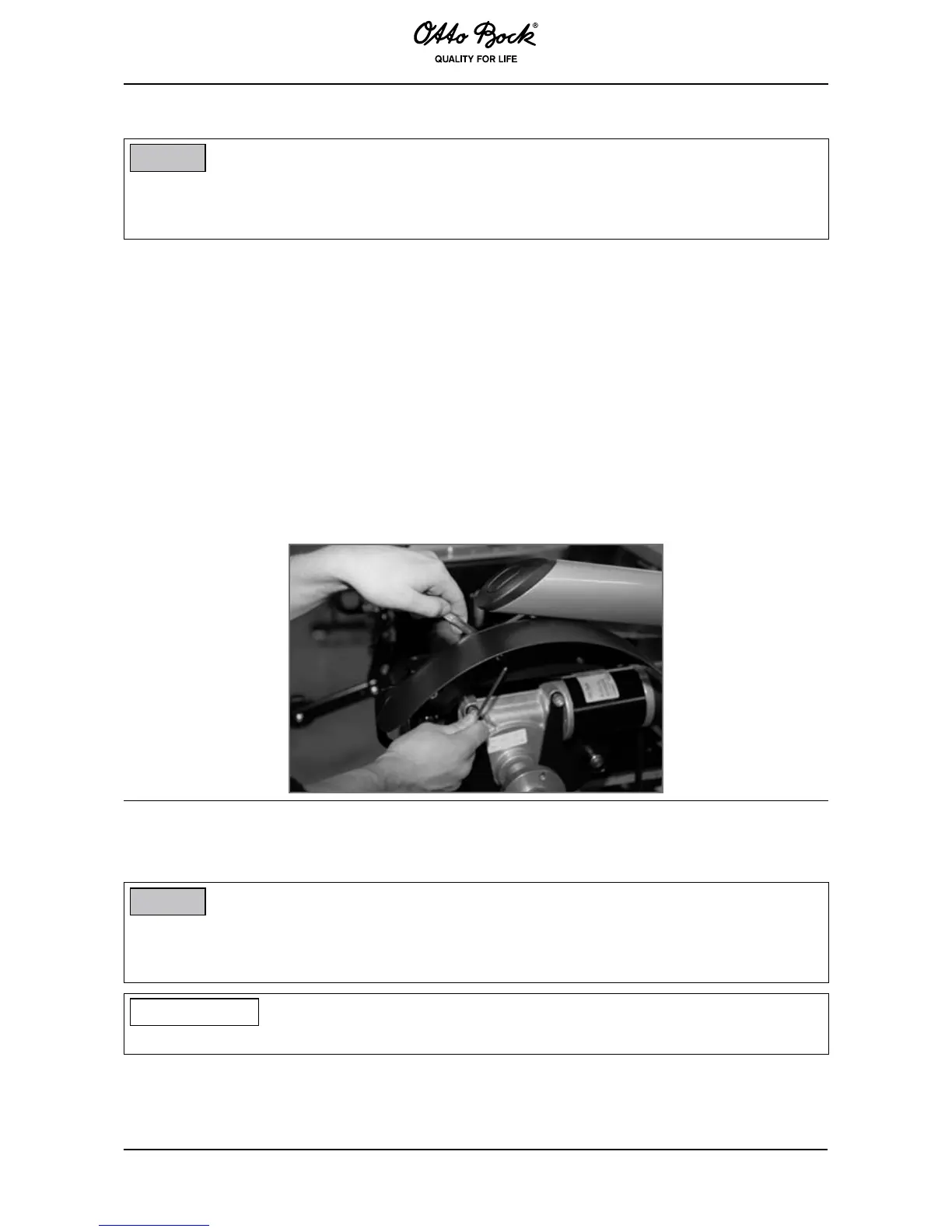

The splash guard is screwed to the motor mount.
❒ Remove the drive wheels.
❒ Allen wrench, size 4
❒ Open-end or combination wrench, size 10
1. Hold the splash guard up against the motor mount so that the mounting holes line up.
2. Insert two carriage screws through the holes and attach them with self-locking nuts.
NOTICE
Use suitable objects such as wooden
blocks to secure the B500/B500-S power wheelchair against sliding or tipping. The drive wheels must
rotate freely.
When installing the steering caster, ensure that the steering caster and drive wheel are aligned.
