❒ Allen wrench, size 5
1. Pull the latch underneath the seat, slightly lift the seat and push it back.
2. Remove the seat.
3. Unscrew the seat brackets from the front and rear of the frame.
4. Remove both parts of the Recaro® mobility base and replace if required.
Properly reassemble all components upon completion of the work.
The seat attachment device of the Recaro® seat is screwed to the underside of the seat.
❒ Allen wrench, size 4
1. Unlock and remove the seat.
2. Lay down the seat and loosen the three Allen head screws on each side of the seat attach-
ment device.
3. Remove the seat attachment device and replace if required.
Properly reassemble all components upon completion of the work.

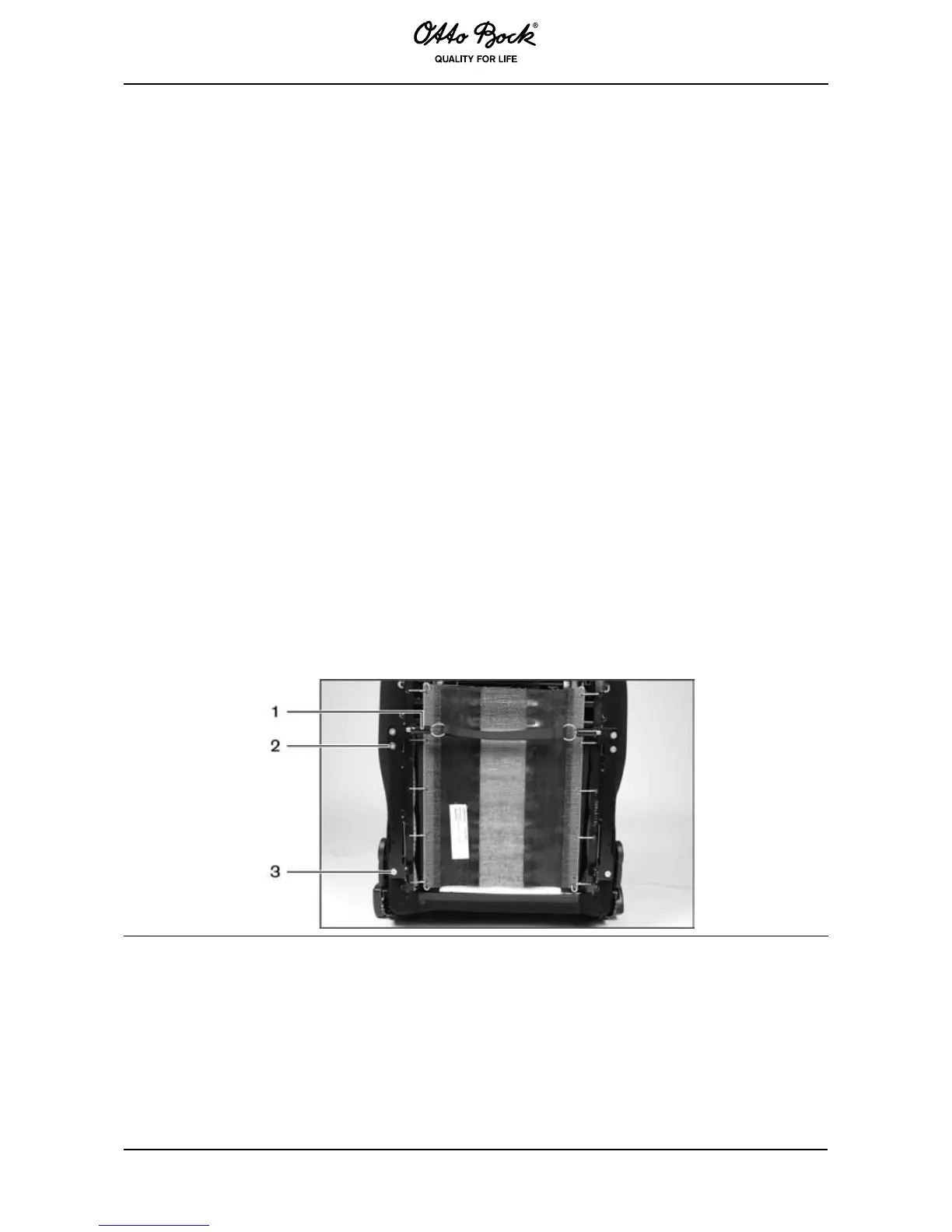

1 Release mechanism pin
2 Seat bracket attachment, front
3 Seat bracket attachment, rear
