57
❒ Screw the gas compression spring to the intermediate bar.
❒ Allen wrench, size 3

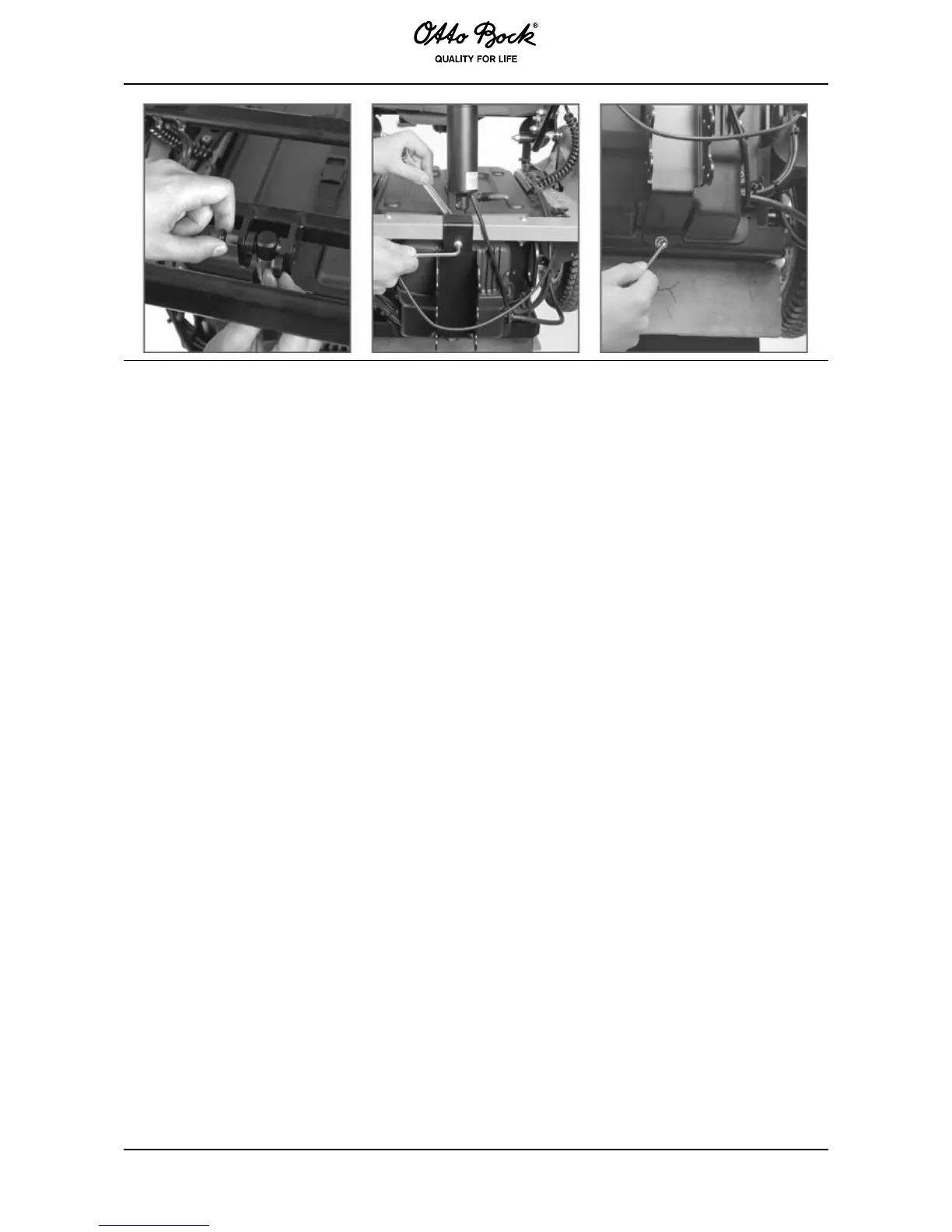

1. Hook in the end of the Bowden cable with spring.
2. Select a hole and attach the spring to the bottom of the adapter.
3. Position the end of the spring between the two bore holes of the adapter and guide it through
the brass bushing.
4. Apply spacers to the brass bushing on each side (spring has to be centred).
5. Tighten the two Allen head screws on the left and right.
6. Bring the Bowden cable to the spring from the rear.
7. Route the Bowden cable underneath the seat frame and bring it to the side panel from the
rear.
8. Slide the clamp piece of the release lever into the arm pad track.
9. Tighten the Allen head screw.
A frame with mounting struts, which is included in the replacement kit, is required for the back
rest in order to mount the mechanical back angle adjustment option.
❒ Allen wrench, size 3
❒ Two Allen wrenches, size 4
