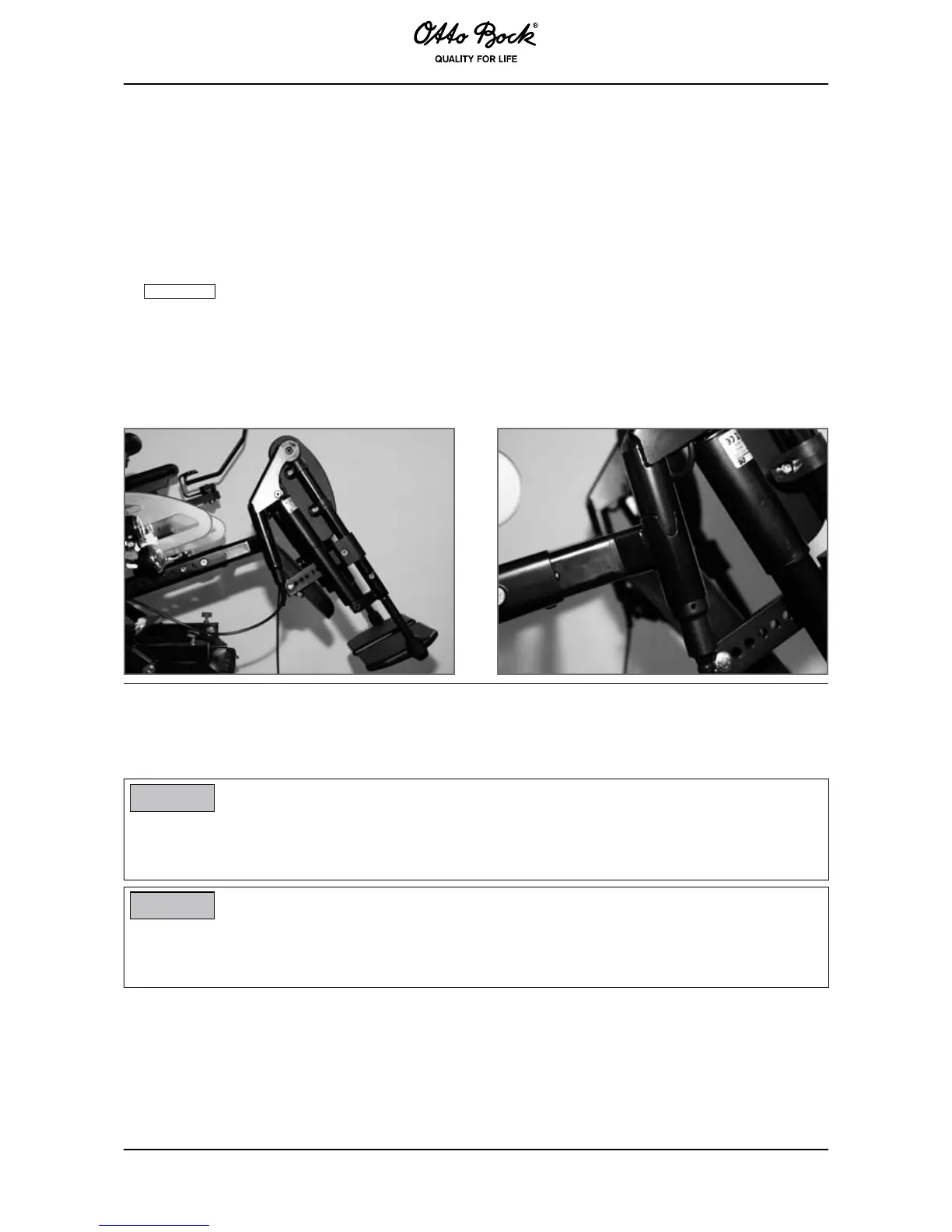

1. Insert the footrest adapters for the electric footrests into the seat frame and screw them into
place (Figure 57-1).
2. Insert the electric footrests into the footrest adapters until they lock in place (Figure 57-2: The
footrests / footrest adapters are self-contacting).
3. Fasten the additional cables to the frame with cable ties to prevent them from extending into
the adjustment range.
Ensure the cable length is sufcient when the footrest option is activated and that the
cables cannot be crushed.
4. Connect the additional cable to the actuator.
5. Connect the additional cable to the controller.
6. Program the control unit.
6.14 Replacing the Frame
NOTICE
Turn off the B600 power
wheelchair prior to performing any work on the frame. Secure the product to prevent it from tipping
over or falling, e.g. off the workbench.
NOTICE
Take care of the cables attached to the seat frame with cable
ties. Carefully cut the cable ties with side-cutting pliers or a knife. Ensure that you do not damage the
cables during this process!
The frame of the B600 power wheelchair is set on top of the drive unit sustainer.
