50

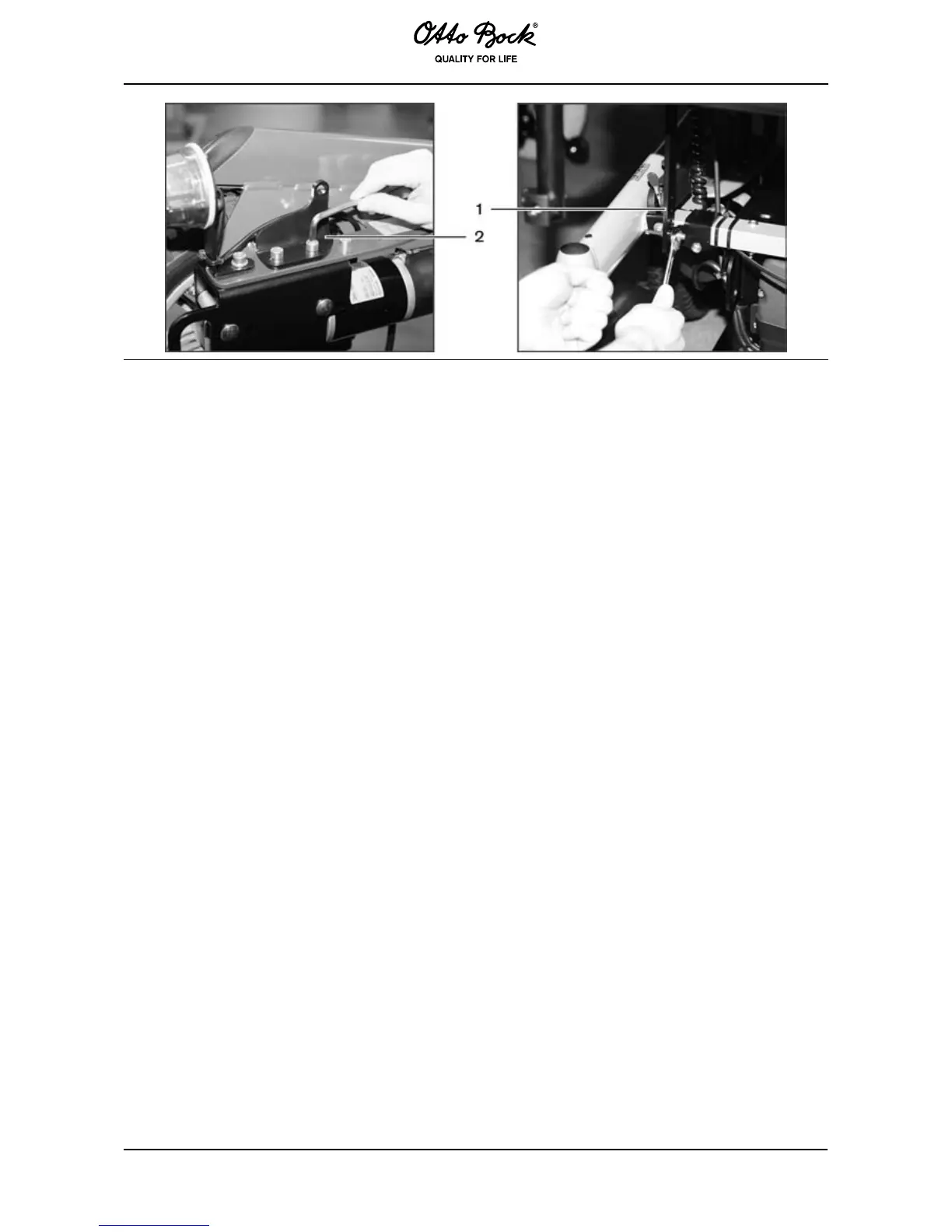

1 Front seat bracket
2 Rear seat bracket
(without electrical or mechanical seat tilt)
The two front seat brackets are used to adjust the seat angle. These brackets have several bore
holes on their lower end. The angle of the seating unit is changed by using a different bore hole:
e.g. upper bore hole 0° / middle bore hole 3°/ lower bore hole 6°.
❒ Allen wrench, size 5
❒ Open-end or combination wrench, size 13
1. Loosen the screw connections between the seat brackets and the adjustment brackets.
2. Push the seating unit up or down until the desired seat angle is achieved.
3. Screw the seat brackets to the adjustment brackets.
Properly reassemble all components upon completion of the work.
The attachment device is located on either side on the rear cross brace under the seat.
❒ Allen wrench, size 3
1. Loosen both set screws.
2. Remove the side panel attachment device and replace or readjust as required.
Properly reassemble all components upon completion of the work.
