28

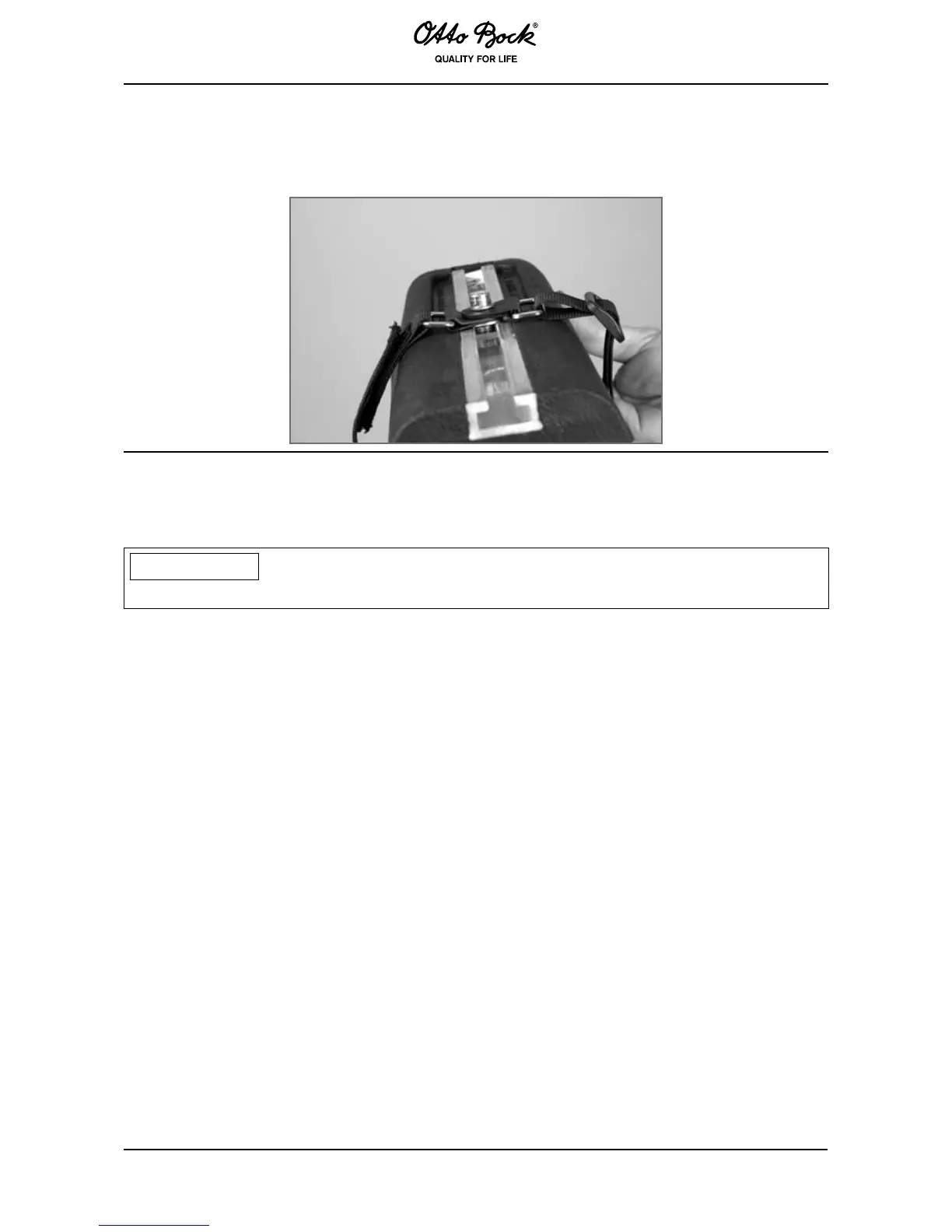

1. Insert lock cams into the track and position them as desired.
2. Place both strap ends with eyelets onto the set screw and secure with nuts.
6.6 Footrests
For mounting the power footrests, please see section 6.13.4.
Various footrest systems with the same adjustment and mounting options are available for the
B500/B500-S power wheelchair. The length and position of the footrests can be individually
adjusted to the wheelchair user.
As an option to the standard version, elevating footrests with calf and knee pads may be
installed.
❒ Allen wrench, size 5
❒ Allen wrench, size 6
❒ Open-end or combination wrench, size 10
1. Pull the footrest lock lever back and pull the footrest up and out (see Figure 14).
2. Loosen the two set screws (see Figure 15).
3. Adjust the length by pulling out or pushing in the footrest tube.
Properly reassemble all components upon completion of the work.
