31

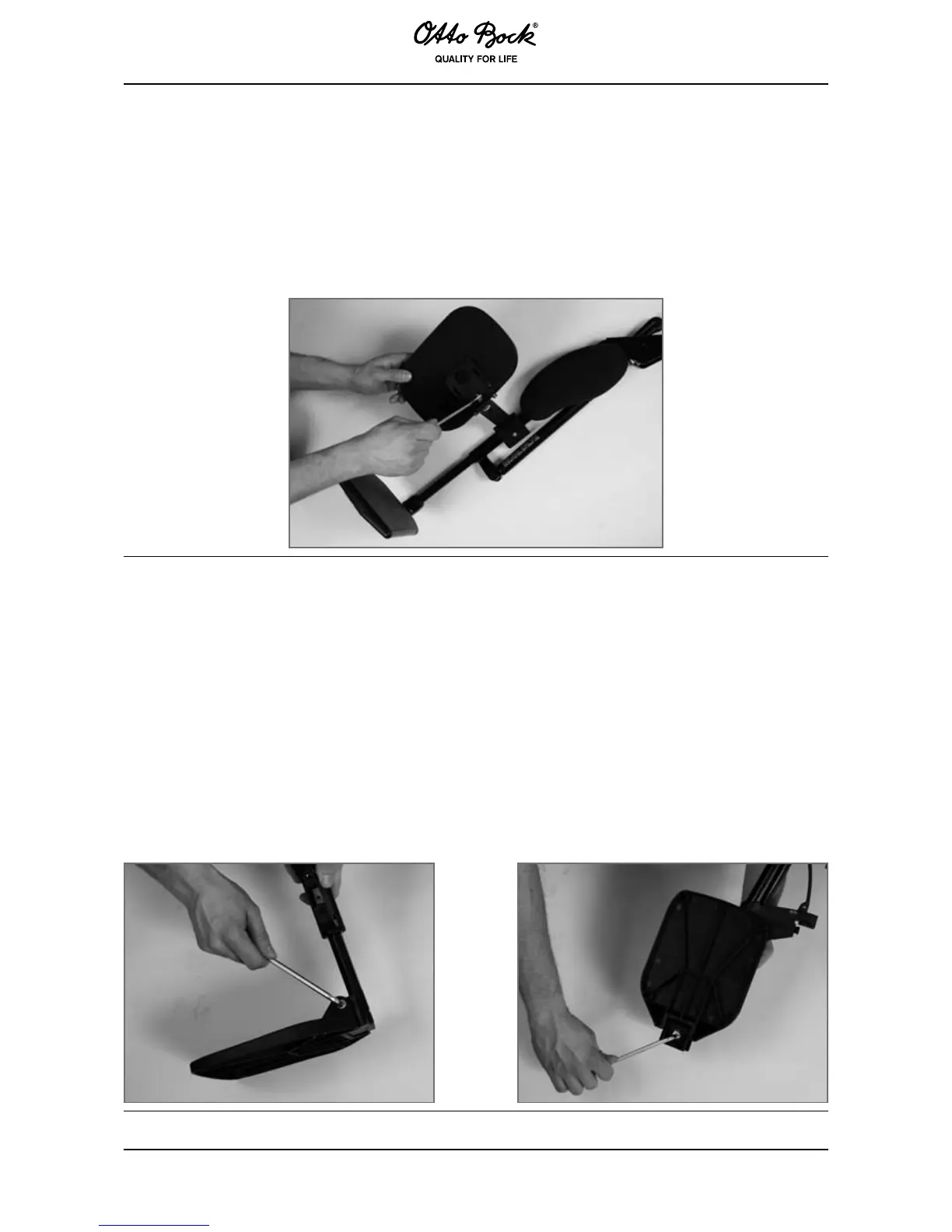

The calf pad is attached to the footrest tube.
1. Remove the footrest.
2. Loosen the Allen head screw.
3. Remove the calf pad or replace if required.
Properly reassemble all components upon completion of the work.
Various footplates are available for the B500/B500-S power wheelchair. As an alternative to the
standard version with segmented footplate, a single-panel aluminium footplate may be installed.
❒ Allen wrench, size 6
1. Loosen the Allen head screw that connects the footplate to the installation kit.
2. Remove the footplate and replace if required.
Properly reassemble all components upon completion of the work.
