30
❒ Allen wrench, size 3
❒ Open-end or combination wrench, size 10
1. Remove the standard footrest holder.
2. Install the footrest holder for elevating footrests.
3. Loosen the Allen head screws.
4. Remove and replace the standard footrests.
1. Remove the footrest.

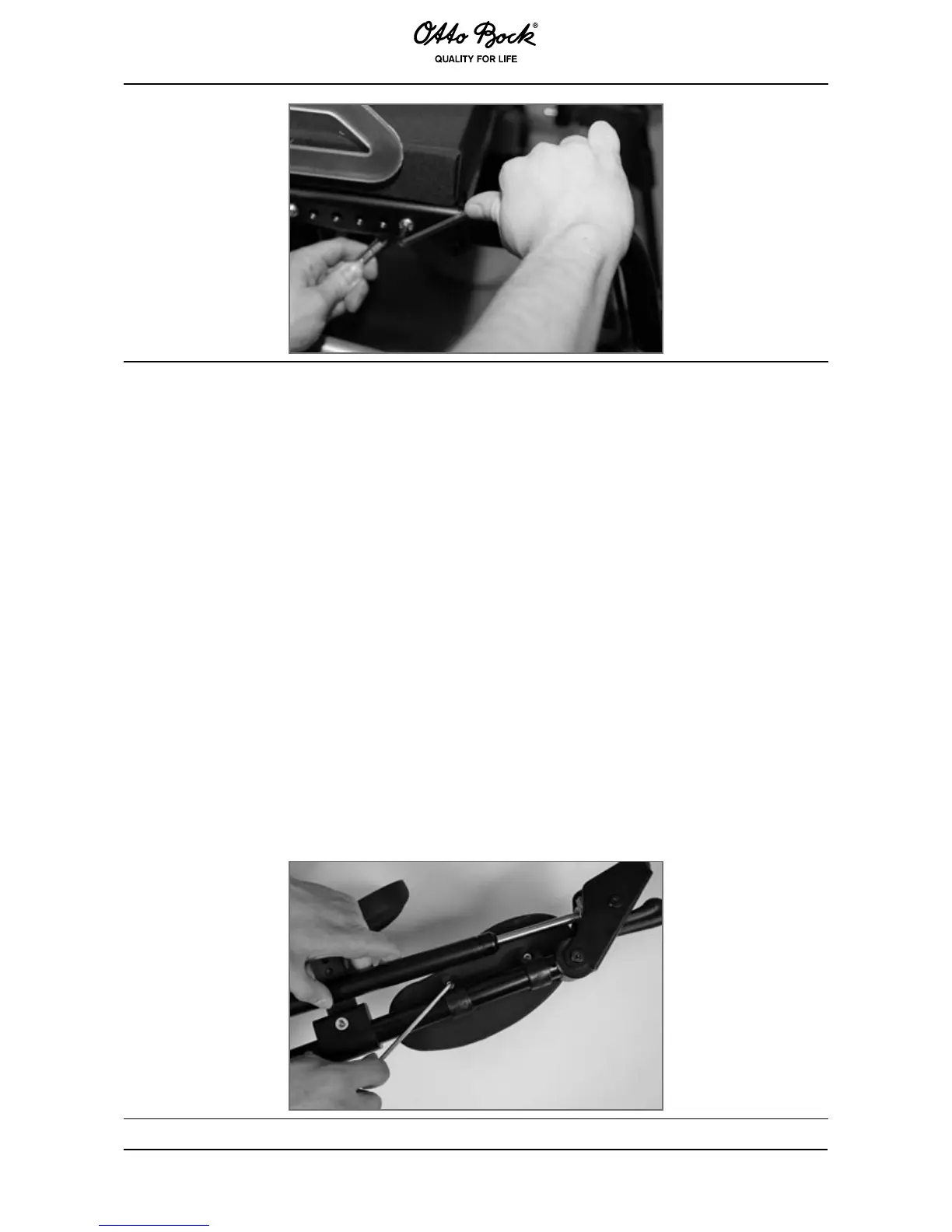

2. Loosen the Allen head screw (Figure 17).
3. Remove the knee pad or replace if required.
Properly reassemble all components upon completion of the work.
