1. Loosen the two screws and remove the protective glass.
2. Pull the bulb from the socket towards the bottom and replace it.
Properly reassemble all components upon completion of the work.
During installation, ensure that the lug on the bulb engages in the notch on the socket.
Ensure the protective glass is properly positioned in the housing during installation.
Tighten the screws for the protective glass thoroughly so that moisture cannot penetrate the lamp.
1
2

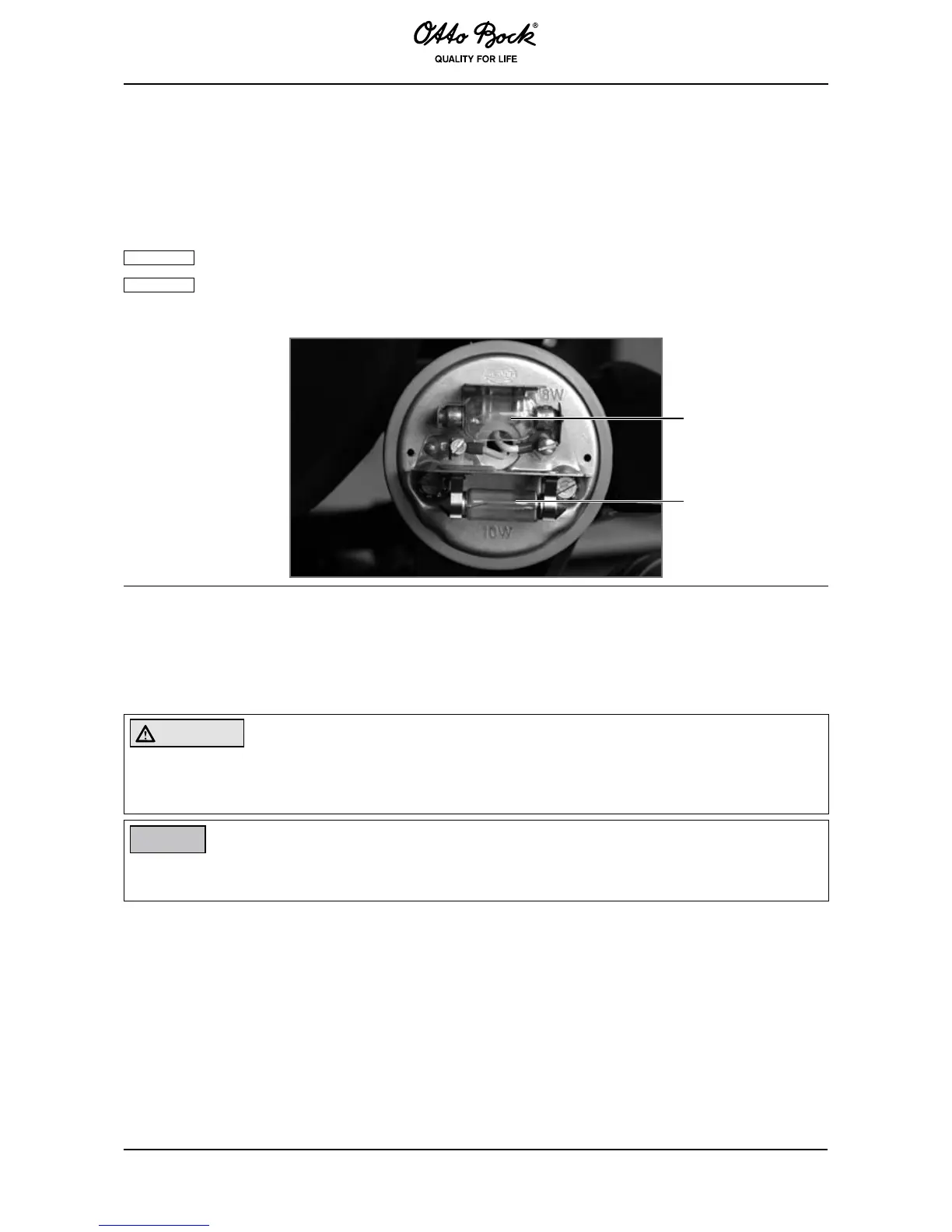

1 Direction indicator bulb
2 Tail light bulb
6.10 Seats
The back rest and seat of the B500/B500-S power wheelchair
are ame retardant but nevertheless ammable. Therefore utmost caution near any sources of open
ame or sparks, especially lit cigarettes, is required.
NOTICE
During any work on the seat, the upholstery must be adequately
protected against mechanical and chemical damage.
❒ Allen wrench, size 5
❒ Open-end or combination wrench, size 13
1. Loosen the three Allen head screws identied with arrows.
