❒ Remove the old seat including the seat plate and seat frame (see Section 6.10).
❒ Allen wrench, size 5 mm
❒ Ring or open-end wrench, size 13

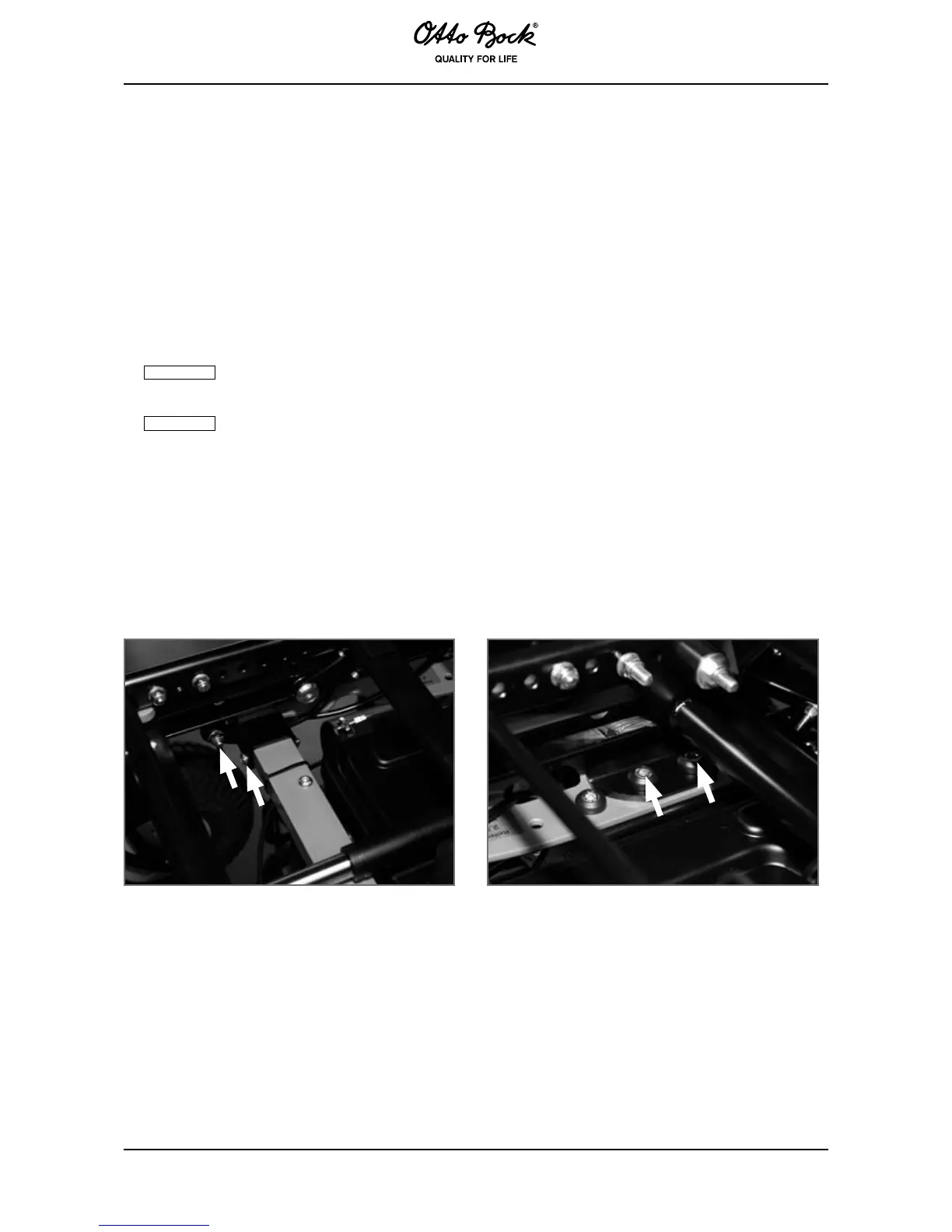

1. Install the frame of the seat tilt installation unit with supplied seat brackets (Figure 54-1: Front
seat brackets, Figure 54-2: Rear seat brackets) on the wheelchair frame.
2. Install the cables.
Ensure the cable length is sufcient when the seat tilt option is activated and that the
cables cannot be crushed.
If the lift seat is equipped with a seat tilt option, also ensure that the spiral cable of
the seat tilt motor is centred on the crossbrace for the lift seat unit and attached with cable ties
(Figure 54-4).
3. Connect the additional cable (Figure 54-3) to the actuator.
4. Connect the additional cable to the controller (or seat module if applicable).
5. Install the seat back on the bearing plate (see Section 6.10.1).
6. Fully assemble the seat with side panels, footrests etc.
7. Program the control unit.
