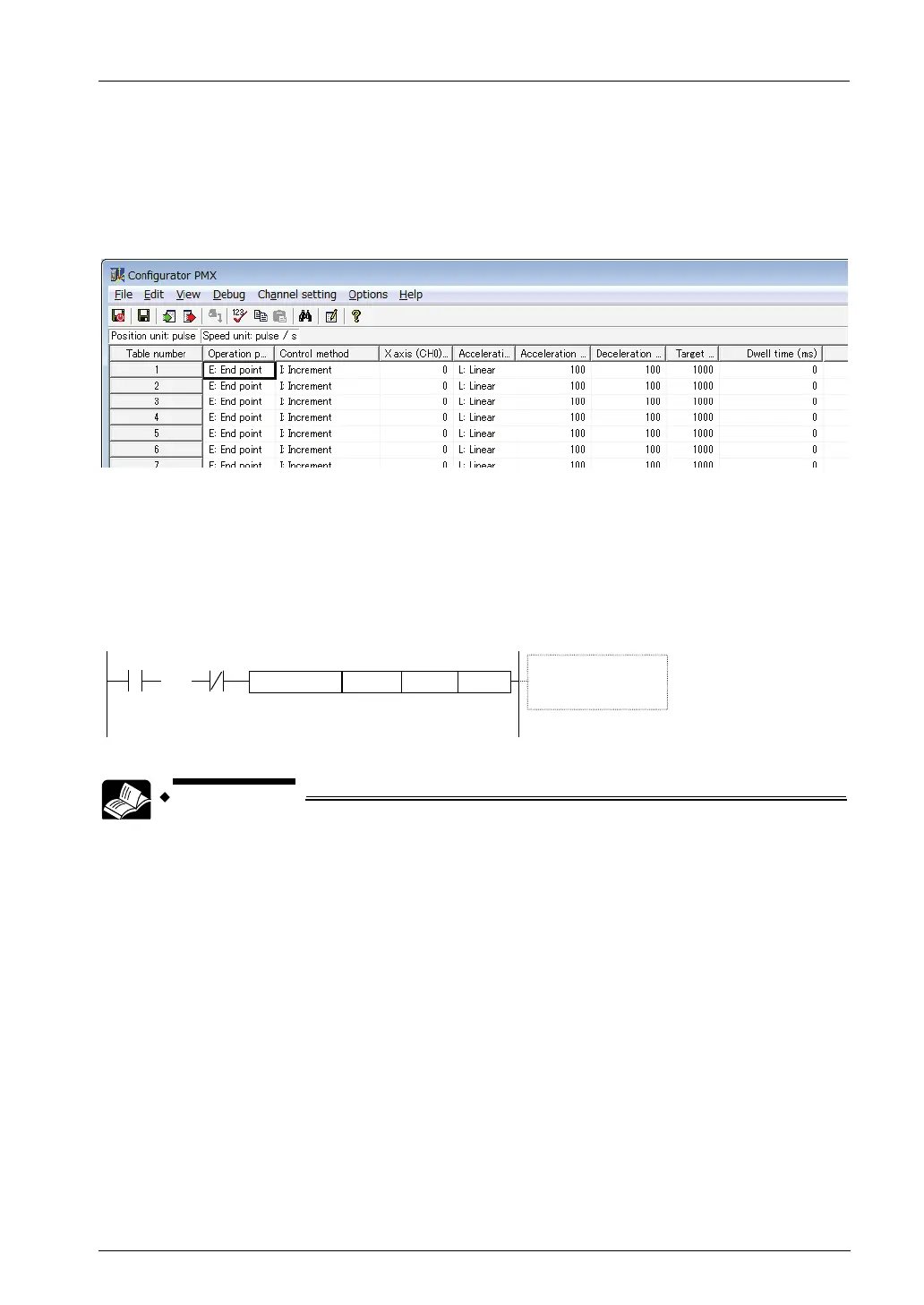

Selection of positioning operation patterns
• For the E-point control, enter settings in one row.
• For P-point control (speed change control), C-point control (continuance point control) and J-
point control (JOG positioning control), they should be combined with E-point control of the
next step as a pair and the settings should be input in two rows.
Table numbers and activation of positioning
• Execute the positioning start instruction (F380) in the user program to specify table numbers
in the Configurator PMX.
• The unit executes the control under the conditions set in the table by turning on the
positioning start contact corresponding to a desired channel number (axis number) and table
number. Specify the first data table number for each control in the program.
R1
（ ）
DF
K1K0
F380 POSST
K0
X808
CH0
BUSY
CH No.0
Table no. 1
Position control starts.
For details, refer to "Chapter 5 Operation Patterns". For details of instructions, refer to
"Chapter 7 Instruction References".
