Panasonic Lumix S1R

1. Introduction
26
5
2
8
9
10
11
12
13
6
4
3
1
14
7
1

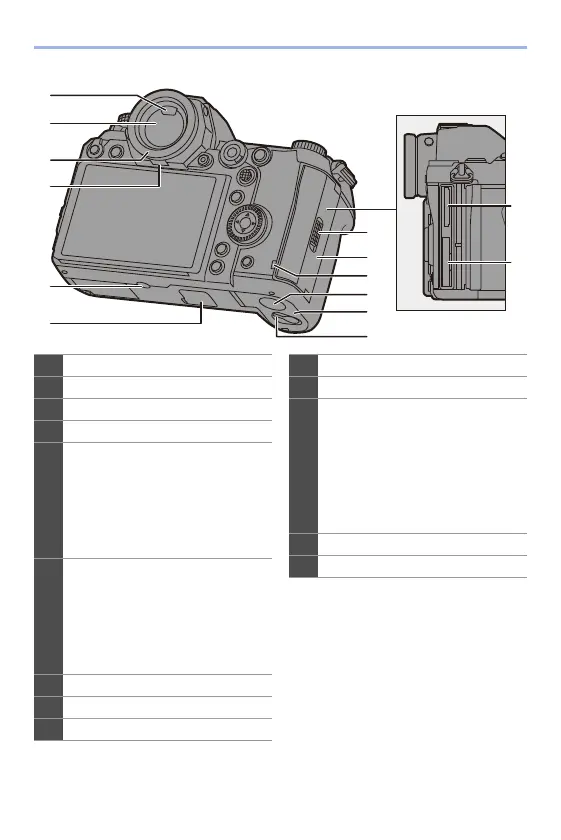

Eye sensor (l 67)
2 Viewfinder (l 67)
3
Eye cup (l 473)
4
Eye cup lock lever (l 473)
5
Tripod mount (l 478)
0 If you attempt to attach a tripod
with a screw length of 5.5 mm
(0.22 inch) or more, you may not
be able to securely fix it in place
or it may damage the camera.
6
Battery grip connector (cover for
the battery grip connector)
(l 445)
0 Keep the cover for the battery
grip connector out of reach of
children to prevent swallowing.
7
Card slot 2 (l 46)
8
Card slot 1 (l 46)
9 Card door lock lever (l 46)
10
Card door (l 46)
11 Card access lamp (l 47)
12
DC Coupler cover (l 447)
0 When using an AC adaptor,
ensure that the Panasonic DC
Coupler (DMW-DCC16:
optional) and AC Adaptor
(DMW-AC10: optional) are
used.
13 Battery door (l 36)
14
Battery door release lever (l 36)
