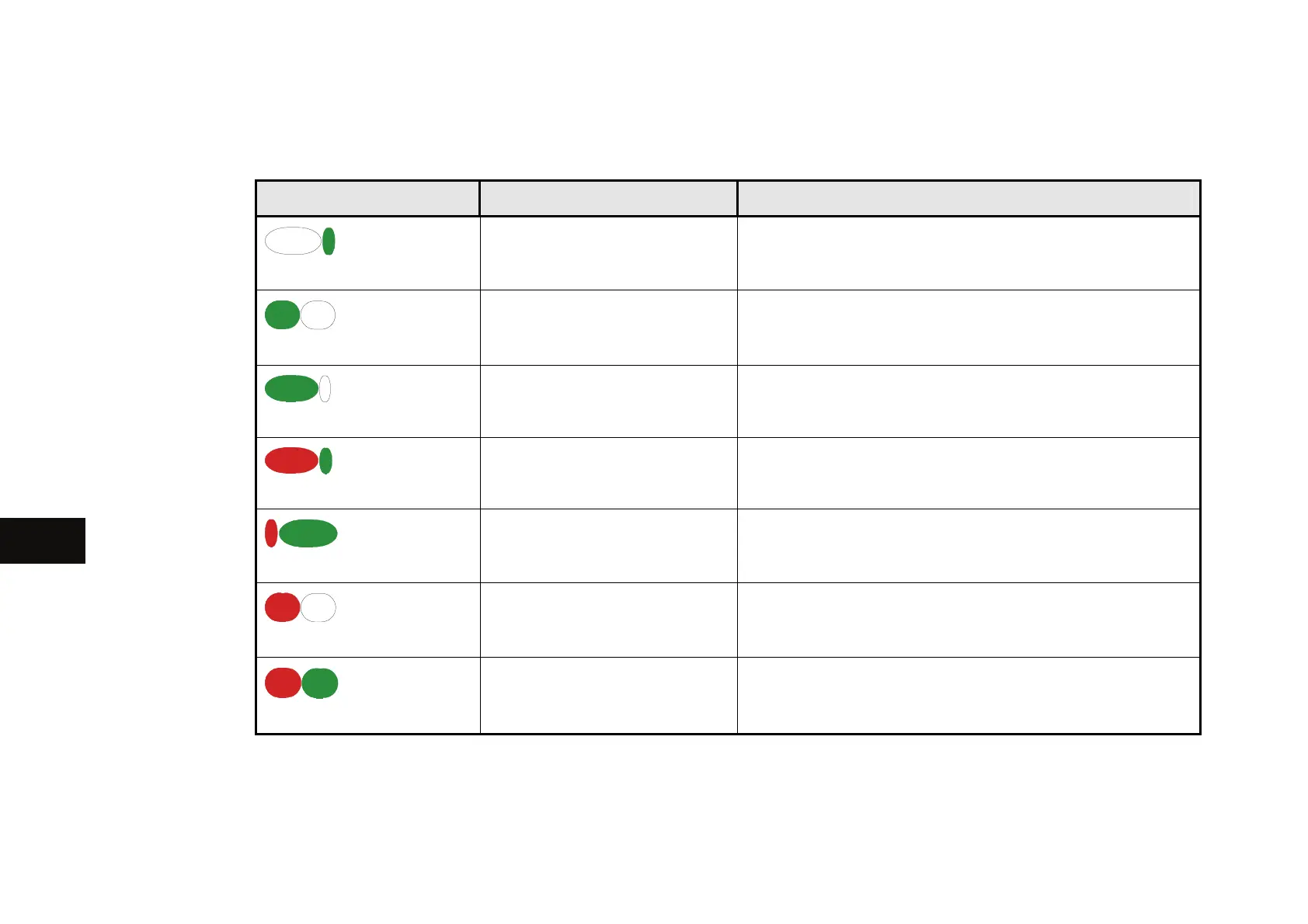

Control Board STATUS LED Indications
Colour LED Indication Description
OFF/GREEN
FLASH
Off 95 : Green 5
Initialization, checking for network
GREEN/OFF
FLASH
Green 50 : Off 50
OK – application running, no network
GREEN/OFF
FLASH
Green 95 : Off 5
OK – application running, network OK
RED/GREEN
ALTERNATING
Red 95 : Green 5
Node halted
RED/GREEN
ALTERNATING
Red 5 : Green 95
Duplicate address in network
RED/OFF
FLASH
Red 50 : Off 50
No configuration
RED/GREEN
ALTERNATNG
Red 50 : Green 50
Application error
