Parker Hauser COMPAX-M Series Interface Manual

1. Introduction
Interbus-S
8
1.4.1 Bus – Setting using the front cover

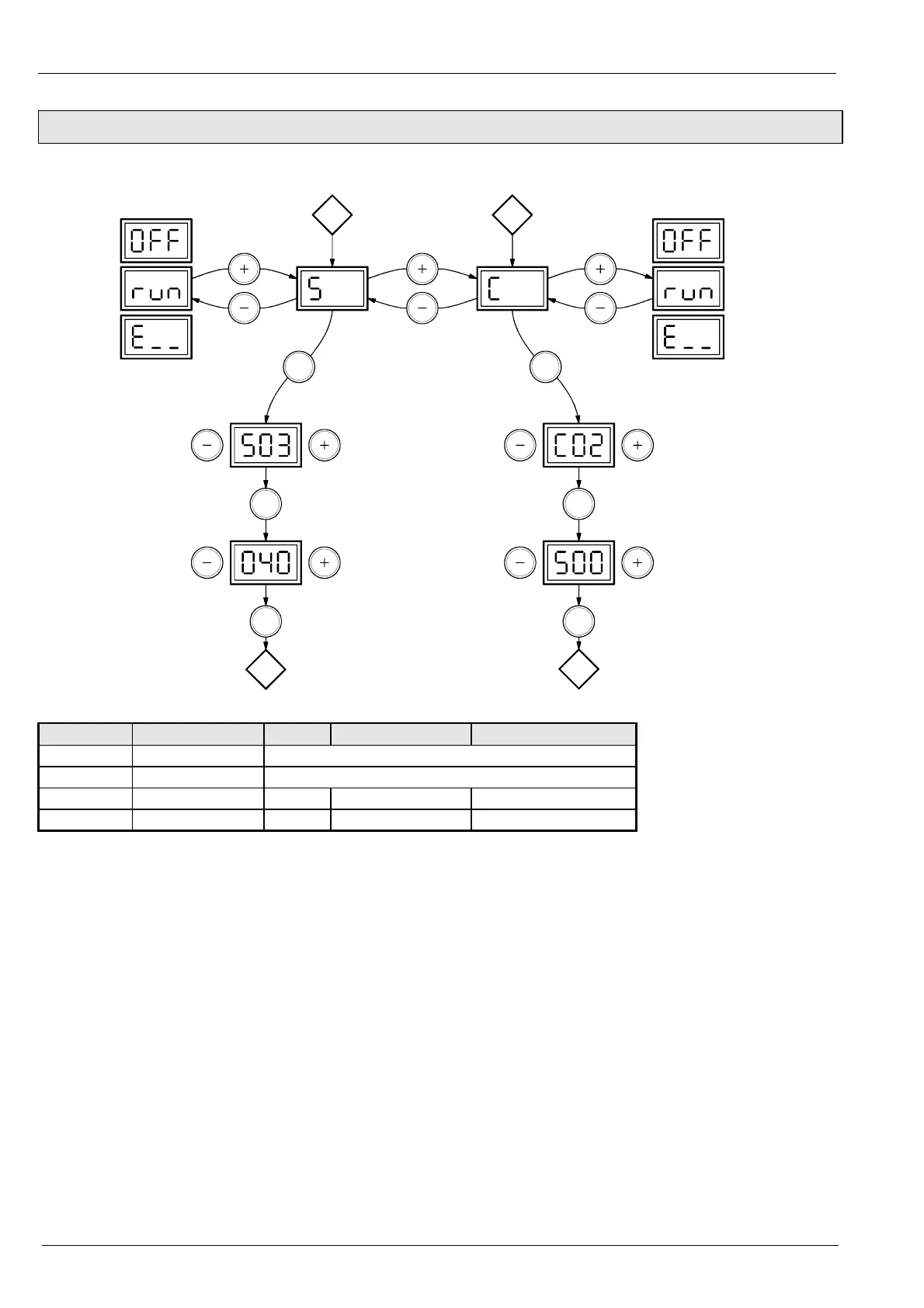

The bus protocol (P196) can be set using the COMPAX front cover. Procedure:
call smaller
Status
number
without
function
decrease
value
increase
value
choose
Status
number
choose
number of
C-parameter
status
indicator
change
C-parameter
without
function
call higher
Status
number
call smaller
C-parameter
number
call higher
C-parameter
number
Enter
Enter
Enter
A
Enter
B
A
B
Enter
Enter
choice of operation
modes
Meaning:
C parameters Meaning Range COMPAX parameters Active on
C01 Address of unit Automatically set!
C02 Baud rate: Automatically set!
C03 Bus protocol 0...255 P196
Power on!
C04 - C11 reserved
