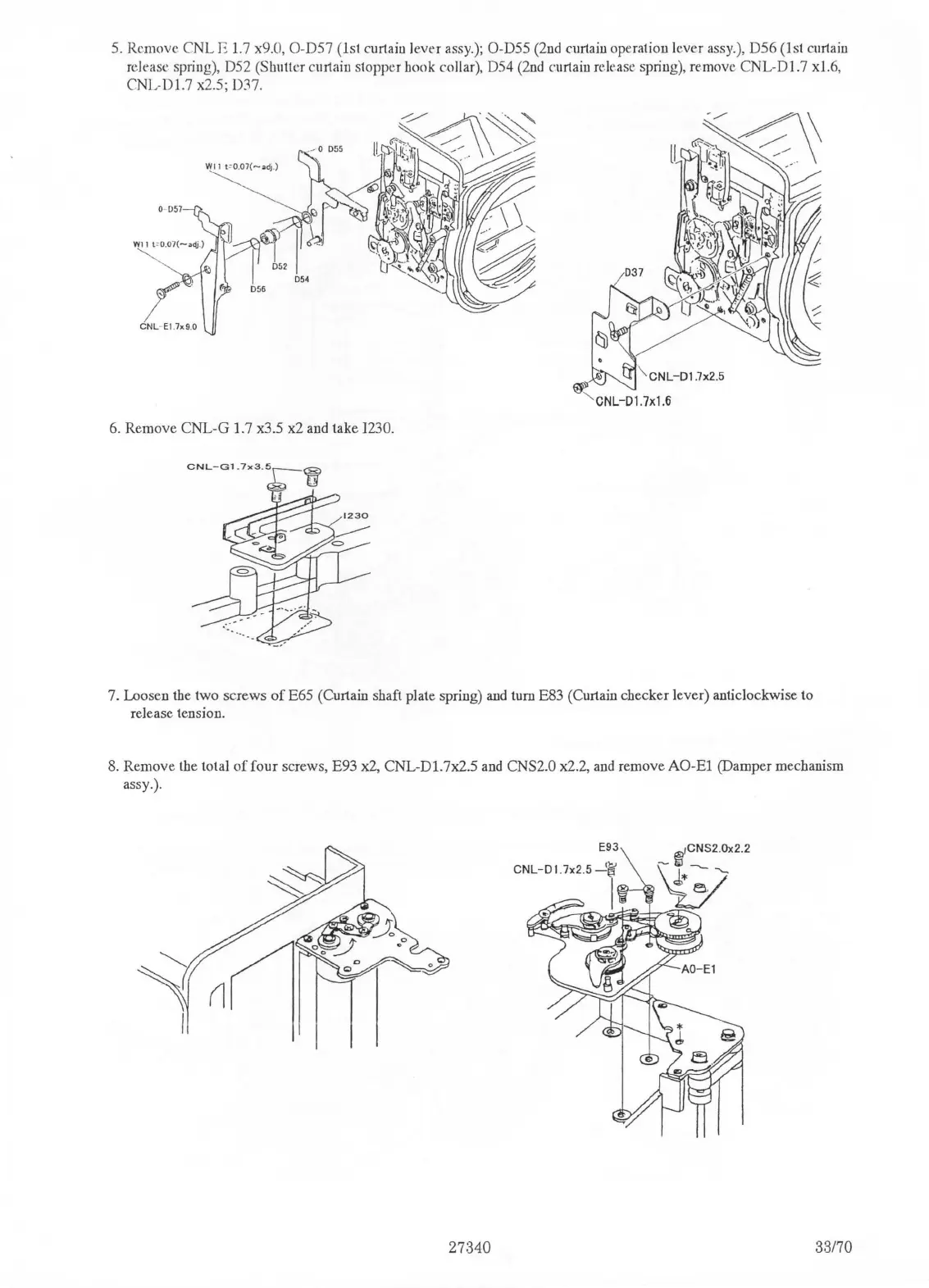

5. Remove CNL E
1.7
x9.0, O-D57 (ls1 curtain lever assy.); 0-DSS (2nd curtain operation lever assy.), D56 (1st curtain
release
spring), D52 (Shutter curtain stopper book collar), D54 (2nd curtain rekase spring), remove CNL-Dl
.7
xl.6,
CNL-Dl.7 x2.5; D'.'7.
6.
Remove CNL-G 1.7 x3.5 x2 and take 1230.
"-
cNL-01
.7x2
.5
""-
CNL-Dl
.
7x1
.6
7. Loosen the two screws
of
E65 (Curtain shaft plate spring)
and
turn E83 (Curtain checker lever) anticlockwise
to
release tension.
8. Remove the total
of
four screws, E93 x2, CNL-Dl.7x2.5
and
CNS2.0 x2.2,
and
remove
AO-El
(Damper mechanism
assy.).
27340
33170
