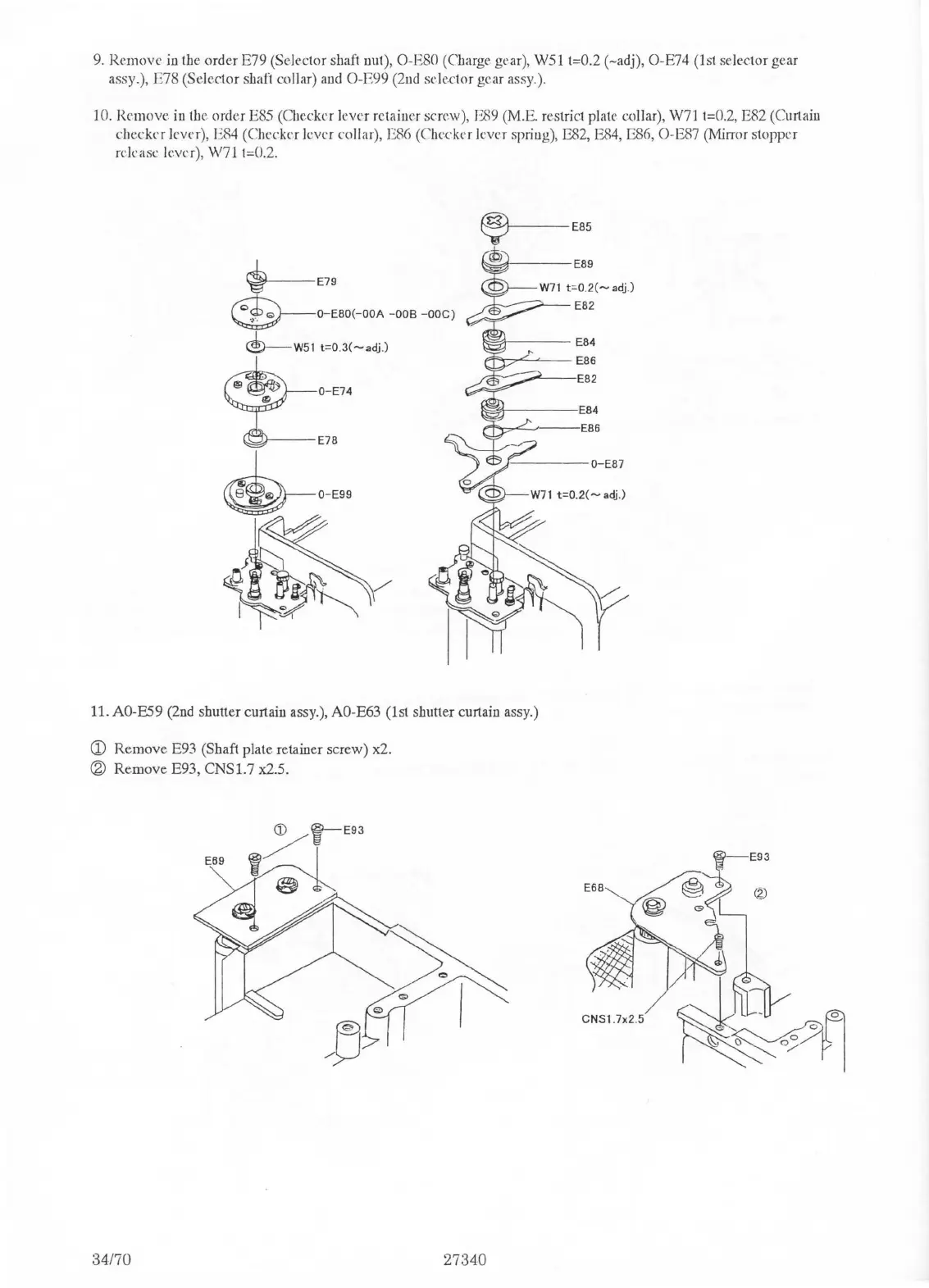

9. Remove in the order E79 (Sek ct or shaft nut), O-E80 (Charge gear), WS l t=0.2 (-adj), O-E74 (I st selector gear
assy.), E78
(Scle.ctor shaft collar) and O-E99 (2nd selector gear assy.).
10. Remove in the , order E85 (Checker lever retainer screw), E89 (M.E. restrict plate collar), W71 t=0.2, E82 (Curtain
checker Irver), E84 (Checker lever collar), E86 (Checker lever spring), E82, E84, E86, O-E87 (Jv1irror stopper
release
lever), W7 l t=0.2.
~4----E84
PT">r.>"""'---'-- E86
~"---E82
-------------
~'l-----E84
l""F-~~--E86
11. AO-E59 (2nd shutter curtain assy.), AO-E63 (1st shutter curtain assy.)
CD Remove E93 (Shaft plate retainer screw) x2.
® Remove E93, CNSl.7 x2.5.
