11.1 Working with sample files
1. Please unzip your "AS-i/Ethernet IP gateway with AS-i Scanner for Allen-Bra-
dley CompactLogix" sample file.
2. Please start the software RSLogix 5000.
3. Please open the file "F01_Module.ACD". This sample file contains a program
that shows you, how to use the command interface (mailbox).
4. If it is needed, please adjust your controller and the ip of your gateway.

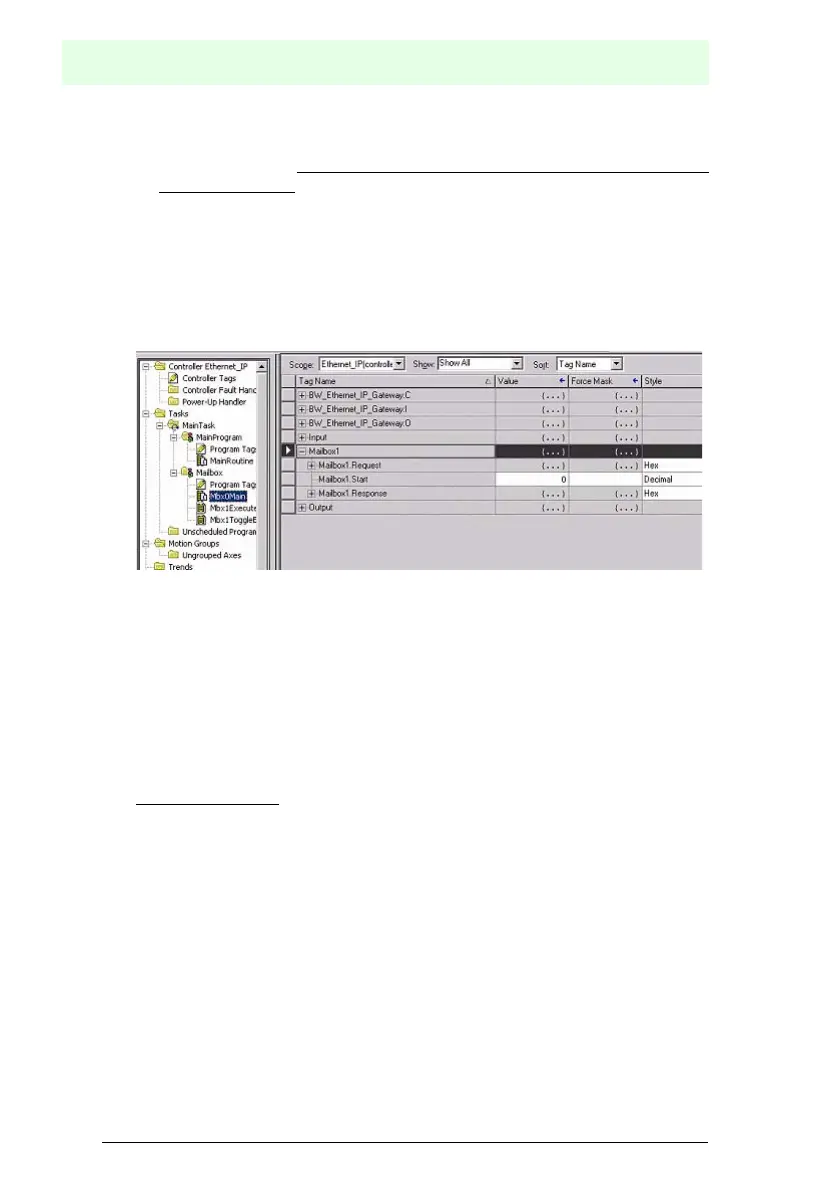

5. Please look at the description of the controller tags, where you can find the tag
Mailbox1.
Here you can edit the command interface instructions. You can find an appropriate
description in the Mbx0Main routine in the Mailbox.
6. Further sample files:
F02_RD_RW.ACD, F03_Get_LAS.ACD, F04_READ_IDI.ACD,
F05_GET_DELTA.ACD, F06_GET_TECA.ACD, F07_SET_LOS.ACD,
F08_GET_LOS.ACD, F09_GET_LCS.ACD, F10_GET_LPF.ACD,
F11_SafeDiagSort.ACD, F12_ACYCLIC_TRANS.
The task MainProgram of these examples shows, how to use some instructions of
the Command Interface with help of the task Mbx0Main.
DataExchange.ACD
This sample file contains a very simple program that shows you how to read and
write digital AS-interface inputs and outputs.
