7 Operating in Advanced Display Mode
1.12A
Klassischer Modus / Classic Mode
grün markierte Werte sind editierbar
green marked data can be edited

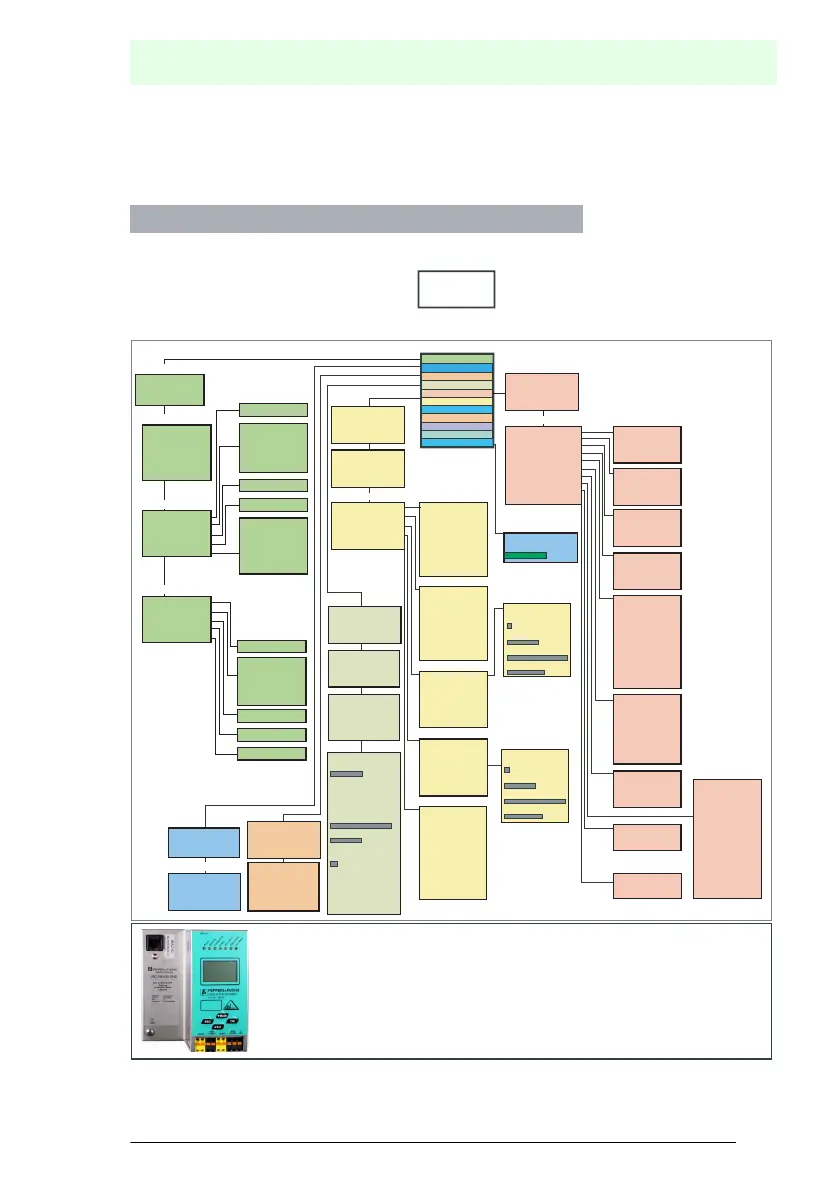

Erweiterter Anzeigemodus / Advanced Display Mode
Grundsätzliche Bedienung
Das Gerät startet im traditionellen Modus. Mit ESC oder OK kann zwischen beiden Modi gewechselt werden. Im erweiterten
Modus wird ein Cursor mit den beiden Pfeil-Tasten bewegt. OK bringt ins nächsthöhere Menü (in der Zeichnung weiter nach
rechts). ESC bringt zurück ins vorherige Menü. Wenn Werte editiert werden, werden sie zunächst mit dem Cursor markiert,
dann mit OK ausgewählt, mit den Pfeiltasten verändert und schließlich mit OK übernommen. ESC bricht das Editieren ab.
Basic Operation
The device starts in the traditional mode. You can switch between the two modes with ESC or OK. In the advanced mode the
cursor is moved by both arrow buttons. Pushing OK puts you to the superior menue (in the drawing one step to the right side).
ESC puts you back to the previous menue. To edit data you first mark them with the cursor and then select them with OK,
change them with the arrow buttons and finally apply them with OK. Pushing ESC cancels the editing.
BINARY INPUTS
BINARY OUTPUTS
ANALOG INPUTS
ANALOG OUTPUTS
PARAMETER
BINARY OUTPUTS
1A -
0 1 0 1
2A -
0 1 0 1
..
31A -
1 1 1 1
1B -
0 1 1 0
...
31B -
0 1 0 1
BINARY INPUTS
1A - 0 1 0 1
2A - 0 1 0 1
...
31A - 1 1 1 1
1B - 0 1 1 0
...
31B - 0 1 0 1
PARAMETER
| 1A- 0
2A- 2 | 3A- F
4A- E | 5A- 3
ANALOG INPUTS
1 X (SINGLE SLAVE)
2 A (A-SLAVE)
3 B
(B-SLAVE)
..
31
ANALOG OUTPUTS
1 X
(SINGLE SLAVE)
2 A
(A-SLAVE)
3 B
(B-SLAVE)
..
31
WARNING:
OUTPUTS MAY BE
SET AND HOST MAY
LOOSE CONTROL.
WARNING:
OUTPUTS MAY BE
RESET
ANALOG OUT 1
....
0
1
2 +32767 OVERFL
3
+2 5 0 0
+17898
-20023
STORE AS-I
CONFIGURATION
STORE + RUN
STORE + PRJ MODE
ANALOG IN 1
0 +2500
1 +17898
2 +32767 OVERFL
3 -20023
....
ETHERNET/IP
ADV. DIAGNOSIS
AS-I SAFETY
IO + PARAM.TEST
DIAGNOSIS
QUICK SETUP
SLAVE ADR TOOL
SLAVE TEST TOOL
SETUP
LANGUAGE
SLAVE ADR TOOL
CONNECT
OLD ADDRESS 21A
NEW ADDRESS 03B
PRG
....
30A- 8 | 31A- 9
| 1B- 0
2B- E | 3B- 0
...
WARNING:
OUTPUTS MAY BE
LOOSE CONTROL.
SLAVE ADR 21A
OK
BINARY INPUTS
0 1
BINARY OUTPUTS
ANALOG INPUTS
0
ANALOG OUTPUTS
0
0 1
+17898
+2500
F
F
7FFE
+17898
1 +32767 OVERFL
1
PARAM
PERM PARAM
CONFIG 7FFE
PERM CONF
SET AND HOST MAY
SLAVE TEST TOOL
SLAVE ADR 21A
TEST
4B-
E
| 5B-
0
...
30B- 8
| 31B-
9
AS-I SLAVE ADDR
OLD ADDRESS
NEW ADDRESS
21A
03B
PERMANENT PARAM
| 1A- 0
2A- 2 | 3A- F
4A- E
| 5A-
3
....
30A- 8 | 31A- 9
| 1B-
0
2B- E | 3B- 0
4B- E | 5B- 0
...
30B- 8
| 31B-
9
PERMANENT CONFIG
IO ID XID1 XID2
1A - 7 F 3 4
...
31A - 7 F 3 4
1B - 7 F 3 4
...
31B - 7 F 3 4
STORE ACTUAL
CONFIGURATION
STORE
AS-I ADDRESS
ASSISTANT ON
NEXT ADDRESS TO
PROGRAM: 1A
FORCE OFFLINE
NO
CHANGE
AS-I SLAVE ADDR
FORCE OFFLINE
OPERATION MODE
STORE ACT CFG
PERMANENT PARAM
PERMANENT CFG
ADDR.ASSISTANT
LOS
AUTO ADDR ENABLE
FACTORY RESET
OPERATION MODE
CONFIG MODE
CHANGE
FACTORY RESET
FACTORY RESET
DO RESET
AUTO ADDRESS
ENABLE
CHANGE
DISPLAY CONTRAST
DISPLAY CONTRAST
DEFAULT
LOS LIST OF
OFFLINE SLAVES
CLEAR ALL
SET ALL
| 1A-
X
....
2A- | 3A-
4A- X | 5A- X
....
30A- X | 31A-
| 1B- X
2B- X | 3B- X
4B- X | 5B- X
...
30B- X | 31B- X
TEST
QUICK SETUP
AS-I CIRCUIT 1
AS-I CIRCUIT 2
AS-I CIRCUIT 1
AS-I CIRCUIT 2
AS-I CIRCUIT 1
AS-I CIRCUIT 2
AS-I CIRCUIT 1
AS-I CIRCUIT 2
SETUP
NAME:
ETHERNET/IP
VERSION:
20041020
UPDATE VIA FTP:
ALLOWED
ARM FIRMWARE
TCP/OBJECT
ETHERNET OBJ.
EtherNet/IP
IF STATUS
IF CAPABILITY
IF CONTROL
PATH TO LINK OBJ
TCP/IP CONFIG
IF SPEED
IF STATUS
PHYSICAL ADDR.
IF COUNTERS
MEDIA COUNTERS
CONFIGURED
BOOTP CLIENT
NO DNS CLIENT
DHCP CLIENT
DHCP-DNS UPD
CFG SETTABLE
USE STORED VAL.
20 - F6 - 24 - 01
IP ADDRESS
192.168.42.149
NETMASK
255.255.255.0
GATEWAY
0 .0 .0 .0
100 Mbps
LINK ACTIVE
FULL DUPLEX
A/NEGO SUCCESS
RESET NEEDED
NO HW FAULT
12-34-56-78-9A-BC
:
:
ARM FIRMWARE
TCP/IP OBJECT
ETHERNET OBJ.
