15.2.7 Addressing

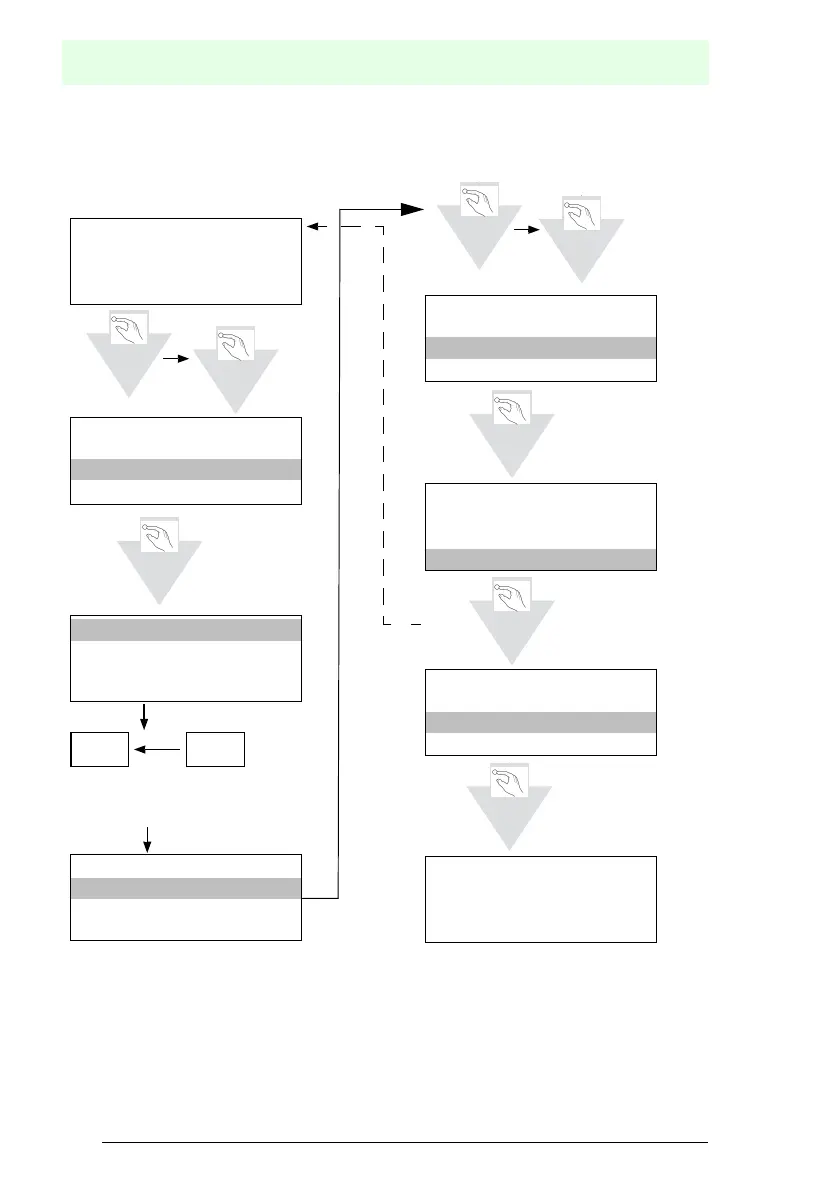

15.2.7.1 Programming slave 2 to address 6
1x ↓
1x OK
LCD
1. 41
SEARCHING SLAVE
1x OK
ETHERNET/IP
QUICK SETUP
SLAVE ADR TOOL
SLAVE TEST TOOL
LCD
SLAVE ADR TOOL
CONNECT NEW SLAVE
LCD
SLAVE ADR TOOL
OLD ADDRESS 2
NEW ADDRESS 3
PRG
LCD
SLAVE ADR TOOL
OLD ADDRESS 2
NEW ADDRESS 6
LCD
1. 6
UNKNOWN SLAVE
LCD
SLAVE ADR TOOL
OK
OLD ADDRESS
NEW ADDRESS
PRG
LCD
SLAVE ADR TOOL
OLD ADDRESS 2
NEW ADDRESS 6
PRG
Master Slave
Modul anschließen/Connect
module/Raccordez module/
Collegare modulo/Conecte modulo
2x ESC
1x OK
1x ↓
2x ↓
3x OK
LCD
