5.2 Double Master

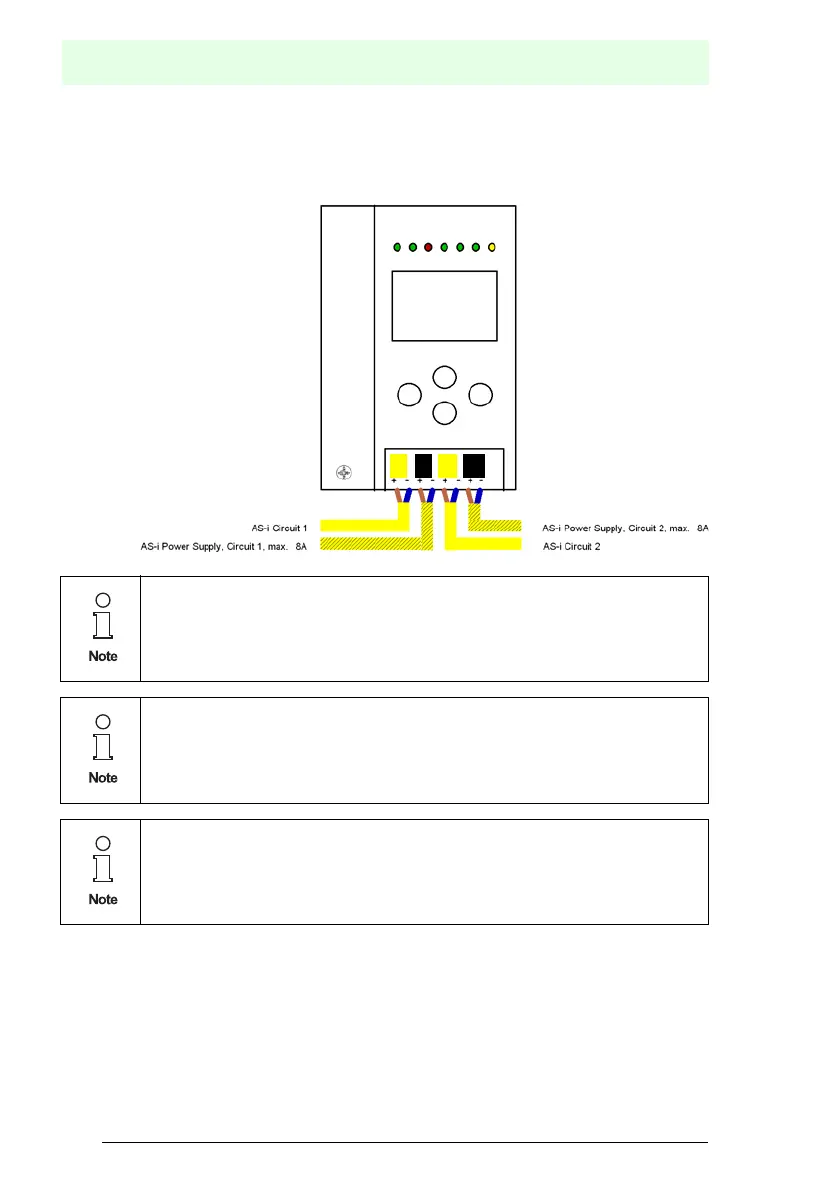

5.2.1 Connections of the AS-i 3.0 EtherNet/IP Gateway
VBG-EN-K20-DMD
AS-i circuit 1 and 2 are powered by seperate power supplies.
It is not allowed to connect slaves or repeaters to the hatched marked cable.
It is not allowed to connect AS-i power supplies or another master to the
yellow marked cable.
