Peri Trio - Assembly on panel

42
TRIO Panel Formwork
Instructions for Assembly and Use – Standard Configuration
A13 Working and concreting platforms
58.5
Fig. A13.04
Fig. A13.04a
Assembly on panel
Do not stand under suspended
loads.

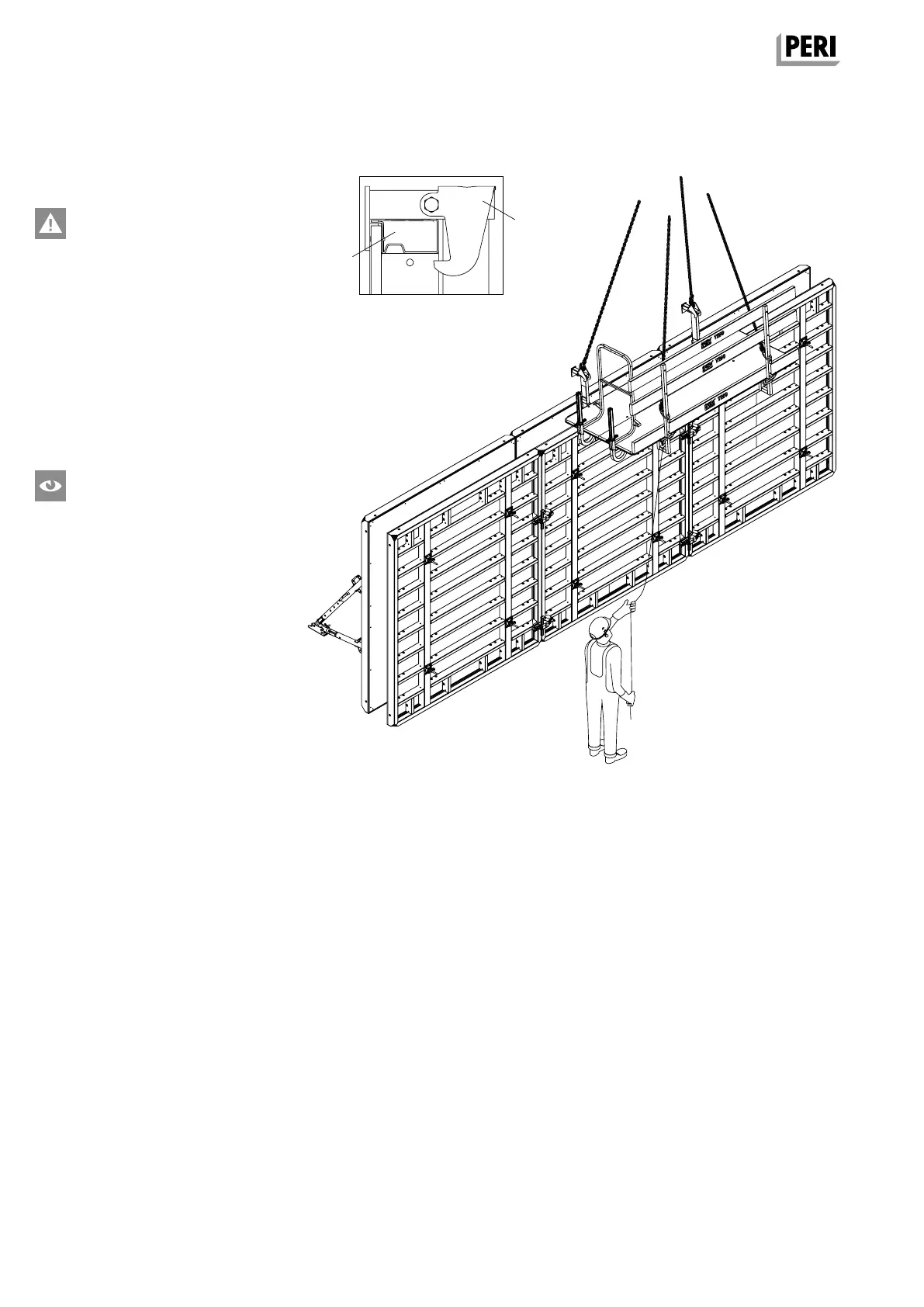

1. Attach the TRIO Concreting Platform
with the suspension beam to the top
frame profile. Guide from below using
guide rope.
(Fig. A13.04)
2. Remove 4-sling lifting gear.
J The retaining claw (58.5) grips the
frame profile (10.7) and secures.
(Fig. A13.04a)
Does the hook of the retaining claw
(58.5) grip the frame profile (10.7)?
(Fig. A13.04a)
3. Attach side protection, e.g. End
Guardrail Frame 55.
