Peri Trio - Placing the guardrail in an inclined position

43
58.2
58.2
ca. 15°

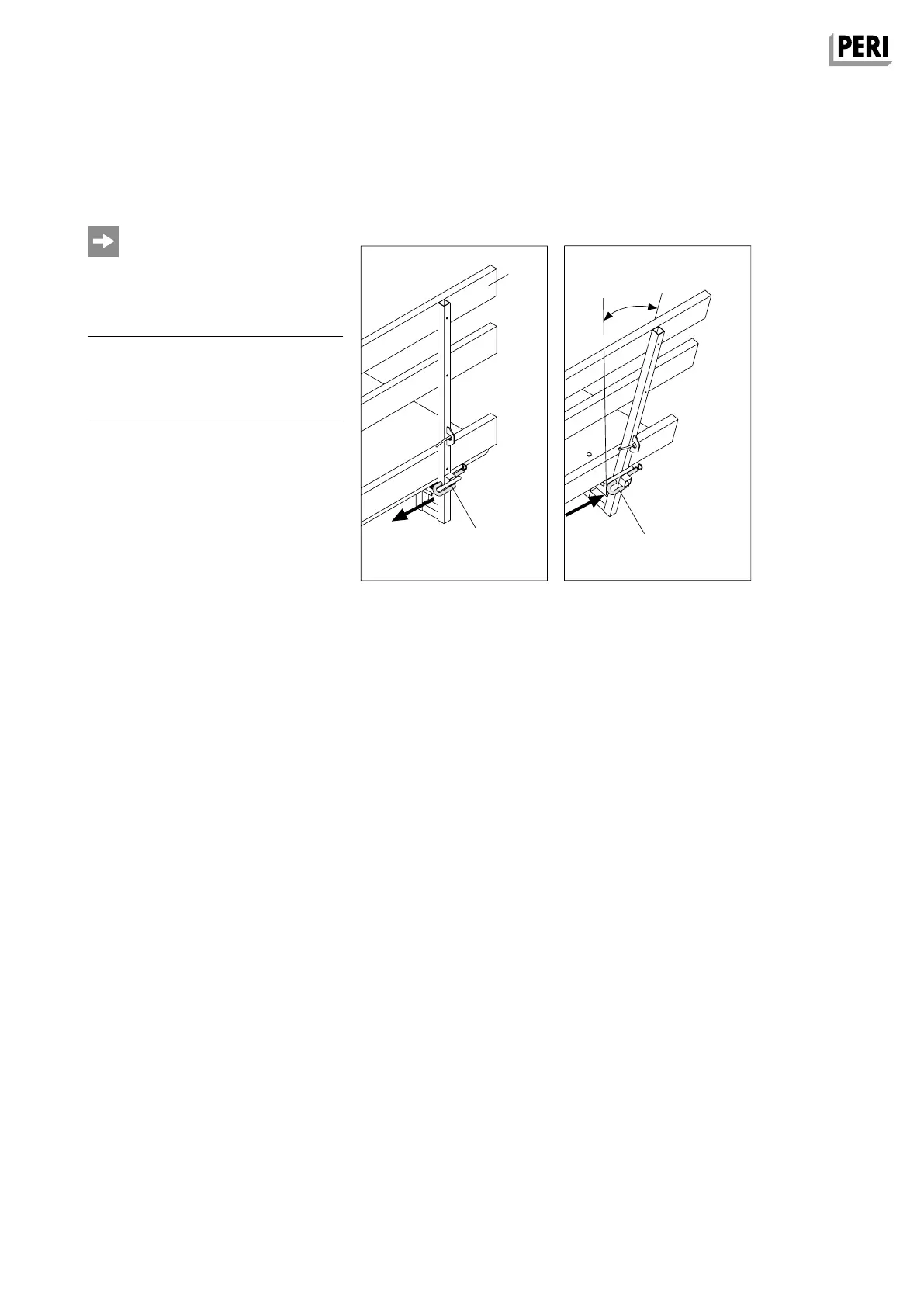

Fig. A13.05 Fig. A13.06
Placing the guardrail in an inclined
position
Always place guardrail in an inclined
position before moving with the crane.
Pos. Components Item no.
58 Concreting Platform
TRIO 120/270 022950
58.1 Guardrail
58.2 Bolt
Assembly
1. Remove securing pin and cotter pin
(58.2). (Fig. A13.05)
2. Incline the guardrail (58.1) backwards,
max. 15°.
3. Install securing pin (58.2) and secure
with cotter pin.
J Guardrail is now in an inclined
position. (Fig. A13.06)
TRIO Panel Formwork
Instructions for Assembly and Use – Standard Configuration
A13 Working and concreting platforms
58.1
