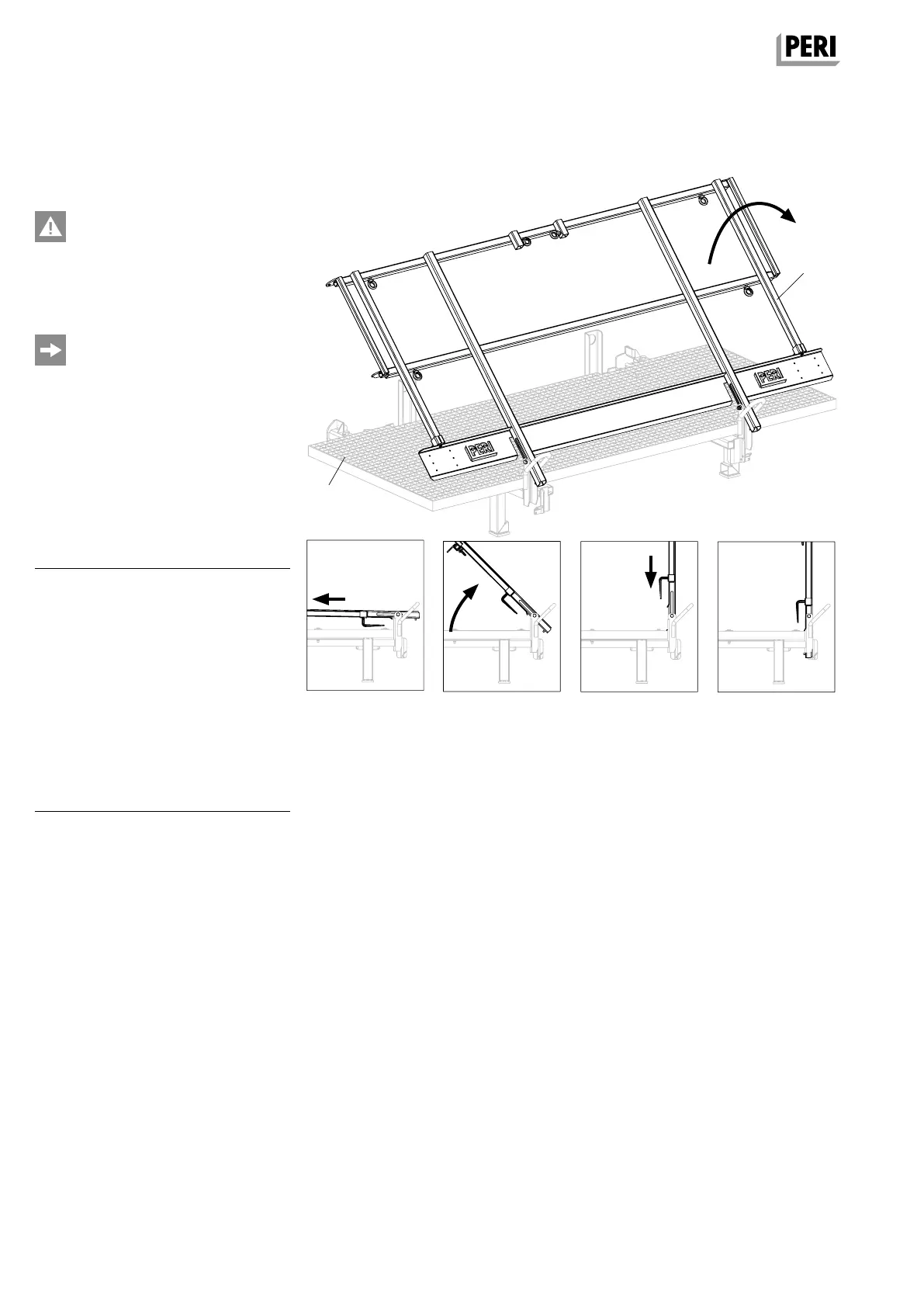

Fig. A13.07
Fig. A13.07a Fig. A13.07b Fig. A13.07c Fig. A13.07d
Concreting Platform MX
Risk of falling! When closing leading
edges which can arise between the
concrete platforms, use PPE at all
times!
The Concreting Platform MX must be
dismantled during temporary storage of
the panel.
Perm. load: 150 kg/m²
Load Class 2 according to
DIN EN 12811-1.
Concreting Platform MX 100 x 240
Pos. Components Item no.
62 Concreting Platform
MX 100 x 240 127273
62.1 Guardrail
62.2 Suspension beam
62.3 Sliding sleeve
62.4 Eyebolt
62.5 Guardrail Extension
62.6 Retaining claw
62.7 Lug
69 End Guardrail MXP
right 115946
left 1159 45
69.1 Bolt
A13 Working and concreting platforms
TRIO Panel Formwork
Instructions for Assembly and Use – Standard Configuration
62.1
AuV TRIO EX.indb 44 11.10.17 09:48
