Peri Trio - Preparing the Concreting Platform MX 100 x 240

45

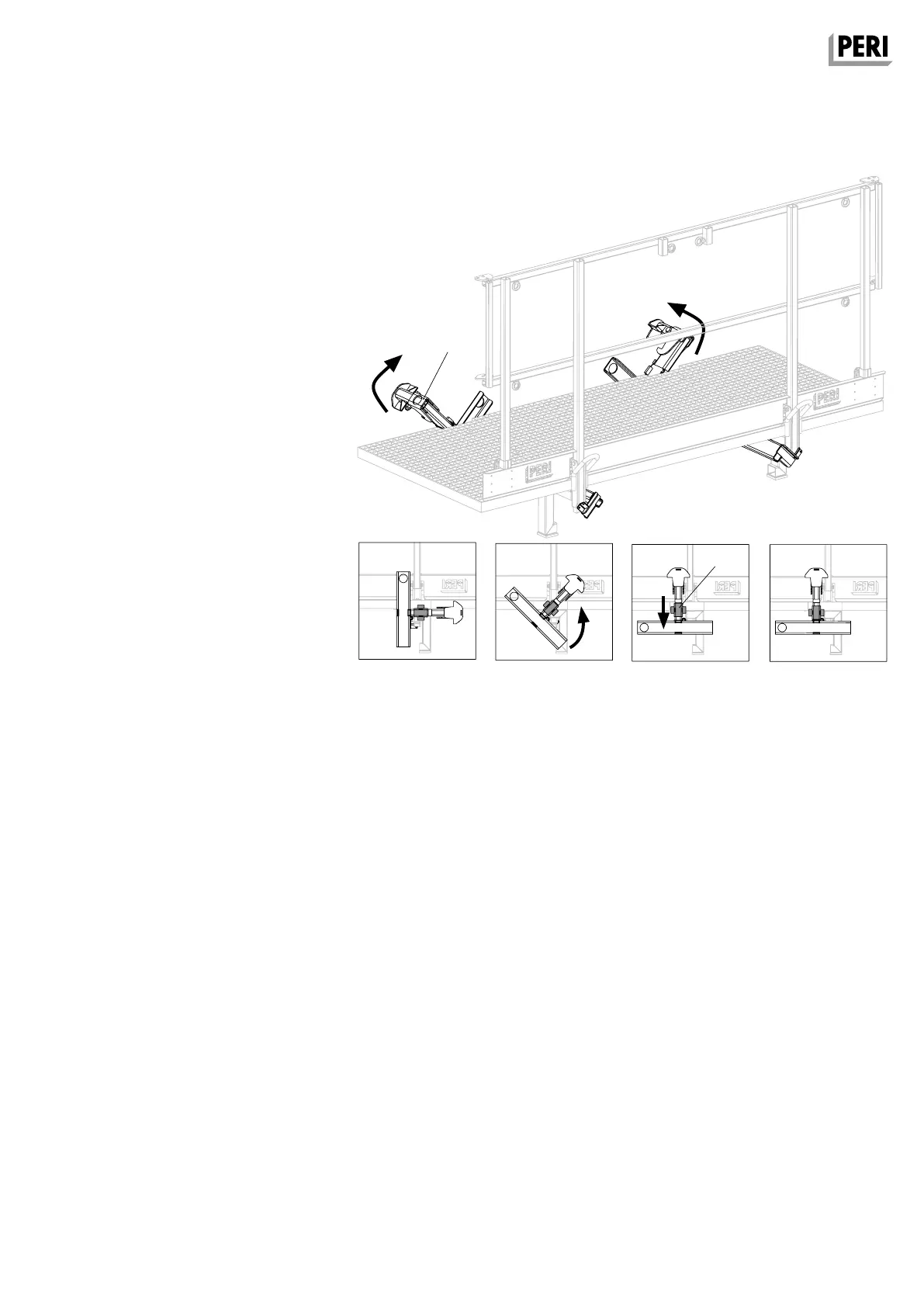

Fig. A13.08
Fig. A13.08a Fig. A13.08b Fig. A13.08c Fig. A13.08d
A13 Working and concreting platforms
Preparing the Concreting Platform
MX 100 x 240
1. Pull out guardrail (62.1) horizontally.
(Fig. A13.07a)
2. Fold up guardrail (62.1) until the
guardrail is at right-angles to the
decking.
(Fig. A13.07 + A13.07b + A13.07c)
3. Push guardrail (62.1) downwards.
J Guardrail is now secured.
(Fig. A13.07d)
4. Fold up suspension beam (62.2).
Ensure that the sliding sleeve (62.3)
is at the top.
(Fig. A13.08 + A13.08a + A13.08b)
5. Push the sliding sleeve (62.3)
downwards.
J The suspension beam is now
engaged.
(Fig. A13.08c + A13.08d)
TRIO Panel Formwork
Instructions for Assembly and Use – Standard Configuration
