49

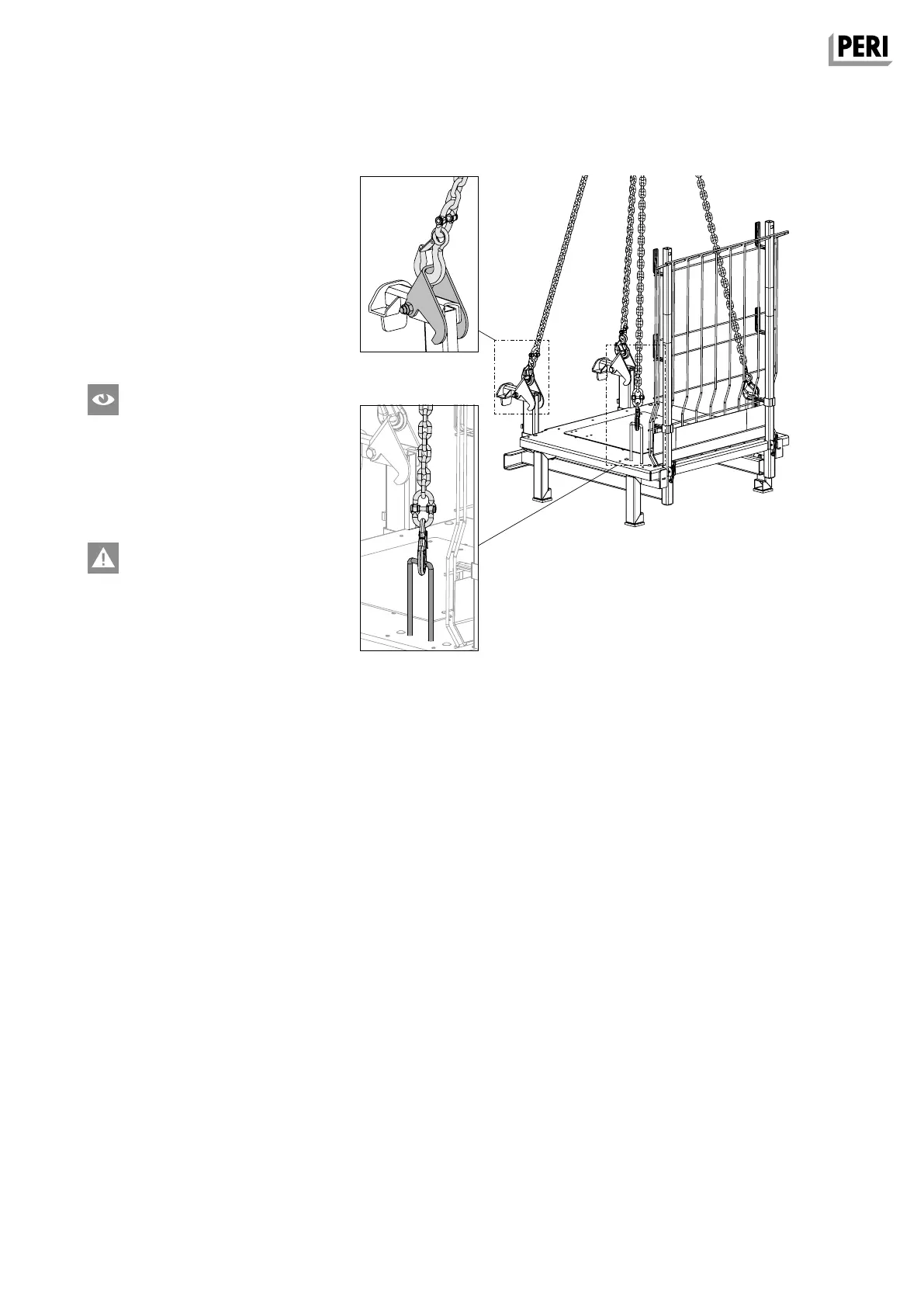

Fig. A13.15
Fig. A13.15a
Fig. A13.15b
TRIO Panel Formwork
Instructions for Assembly and Use – Standard Configuration
A13 Working and concreting platforms
Attaching the Concreting Platform
with Hatch
1. Take hold of the suspension bracket,
pull upwards and attach to the crane
hook of the 4-sling lifting gear – 2x.
2. Attach crane hook of the 4-sling
lifting gear to the suspension beam
(63.3) – 2x.
(Fig. A13.15 + A13.15a + A13.15b)
J The chains are positioned inside of
the Side Mesh Barrier.
Does the hook of the retaining claw
(63.3) grip the frame profile (10.7) of
the panel? (Fig. A13.12a)
Mounting the Concreting Platform
with Hatch on the panel
Do not stand under suspended
loads.
1. Attach the Concreting Platform (63)
with the suspension beams (63.1) to
the top frame profile of the formwork.
Guide from below using guide rope.
(Along the same lines as the
Concreting Platform MX 100 x 240.)
2. Remove 4-sling lifting gear.
J The retaining claw (63.3) grips the
frame profile and concreting
platform is secured.
(Fig. A13.12a)
