A17 Shaft formwork
TRIO Panel Formwork
Instructions for Assembly and Use – Standard Configuration
Height 270
Shaft Corner TRIO
Two TRIO Shaft Corners 330 and
two Corners TE 270-2
Height 270
Wall thickness 150/200/250
Internal shaft wall
Pos. Components Item no.
6 Corner TE 270-2 022580
20 Alignment Coupler BFD 023500
45 Panel TRIO 270 x 120 022510
89 Shaft Corner TRIO 330 129945

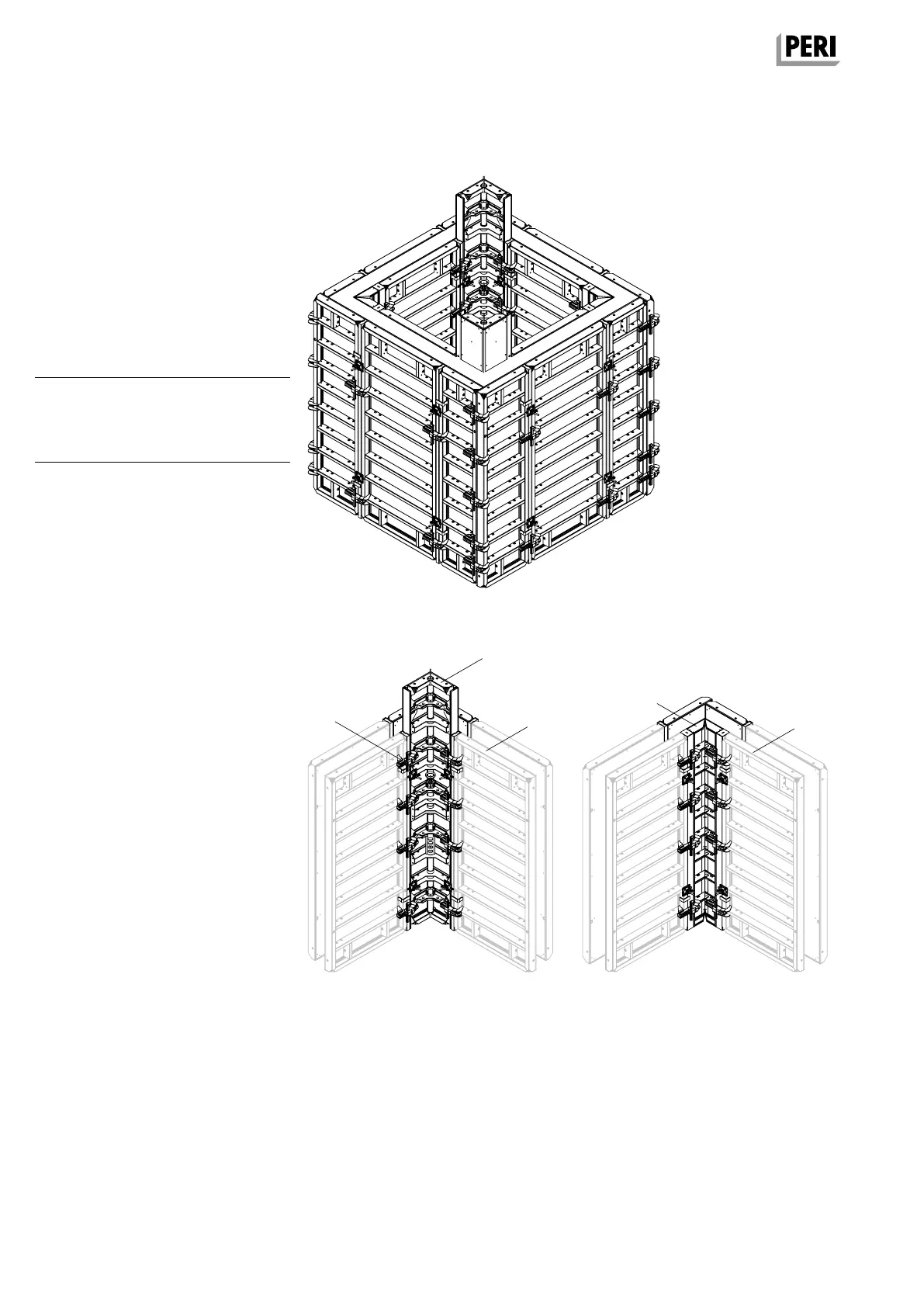

Arrangement of the Alignment
Couplers BFD
Shown:
– Shaft dimensions: 2.50 m x 2.50 m
– Wall thickness 20 cm
(Fig. A17.10 + A17.10a + A17.10b)
Fig. A17.10
Fig. A17.10a
Fig. A17.10b
