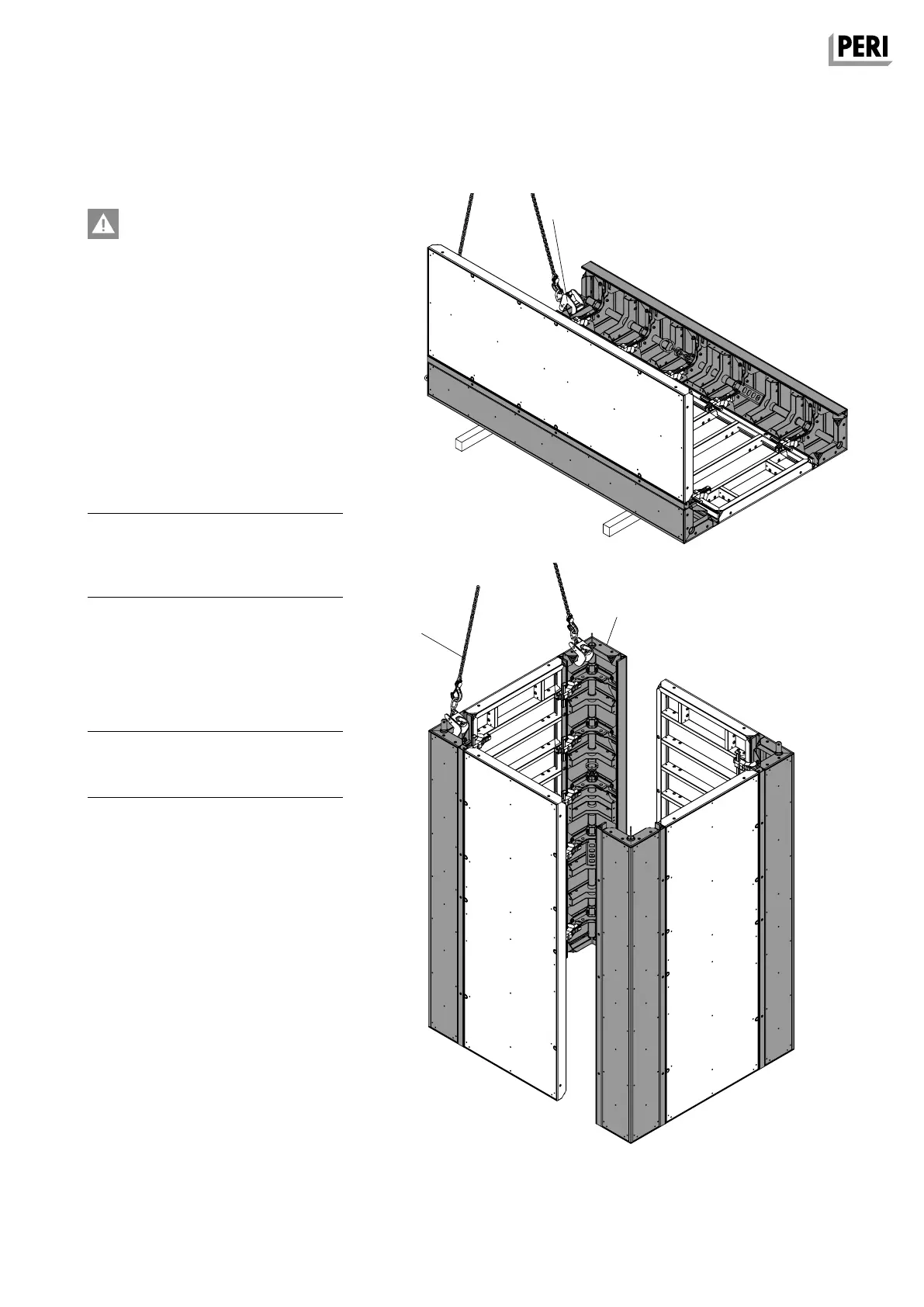

Crane suspension
– Perm. load-bearing capacity of the
lifting hook: 1.5 t.
– Follow Instructions for Use for the
Lifting Hook MAXIMO 1.5 t.
Lifting Hook MAXIMO 1.5 t
For use with:
two Shaft Corners TRIO (89) and two
TRIO Corners TE (5) height 270/330.
(Not shown)
Pos. Components Qty
5 Corner TE/4 330 2
11 Lifting Gear Combi MX 1
13 Lifting Hook MAXIMO 1.5 t 2
89 Shaft Corner TRIO 330 2
For use with:
four Shaft Corners TRIO height 330 (89).
(Fig. A17.09a + A17.09b)
Pos. Components Qty
11 Lifting Gear Combi MX 1
13 Lifting Hook MAXIMO 1.5 t 2
89 Shaft Corner TRIO 330 4
A17 Shaft formwork
TRIO Panel Formwork
Instructions for Assembly and Use – Standard Configuration
