66
89
7
46
46
20
A17 Shaft formwork
TRIO Panel Formwork
Instructions for Assembly and Use – Standard Configuration
Height 3300
Shaft Corner TRIO
Two TRIO Shaft Corners 330 and
two Corners TE/4 330
Height 330
Wall thickness 150/200/250
Internal shaft wall
Pos. Components Item no.
7 Corner TE/4 330 054374
20 Alignment Coupler BFD 023500
46 Panel TRIO 330 x 120 054314
89 Shaft Corner TRIO 330 129945
Arrangement of the Alignment
Couplers BFD

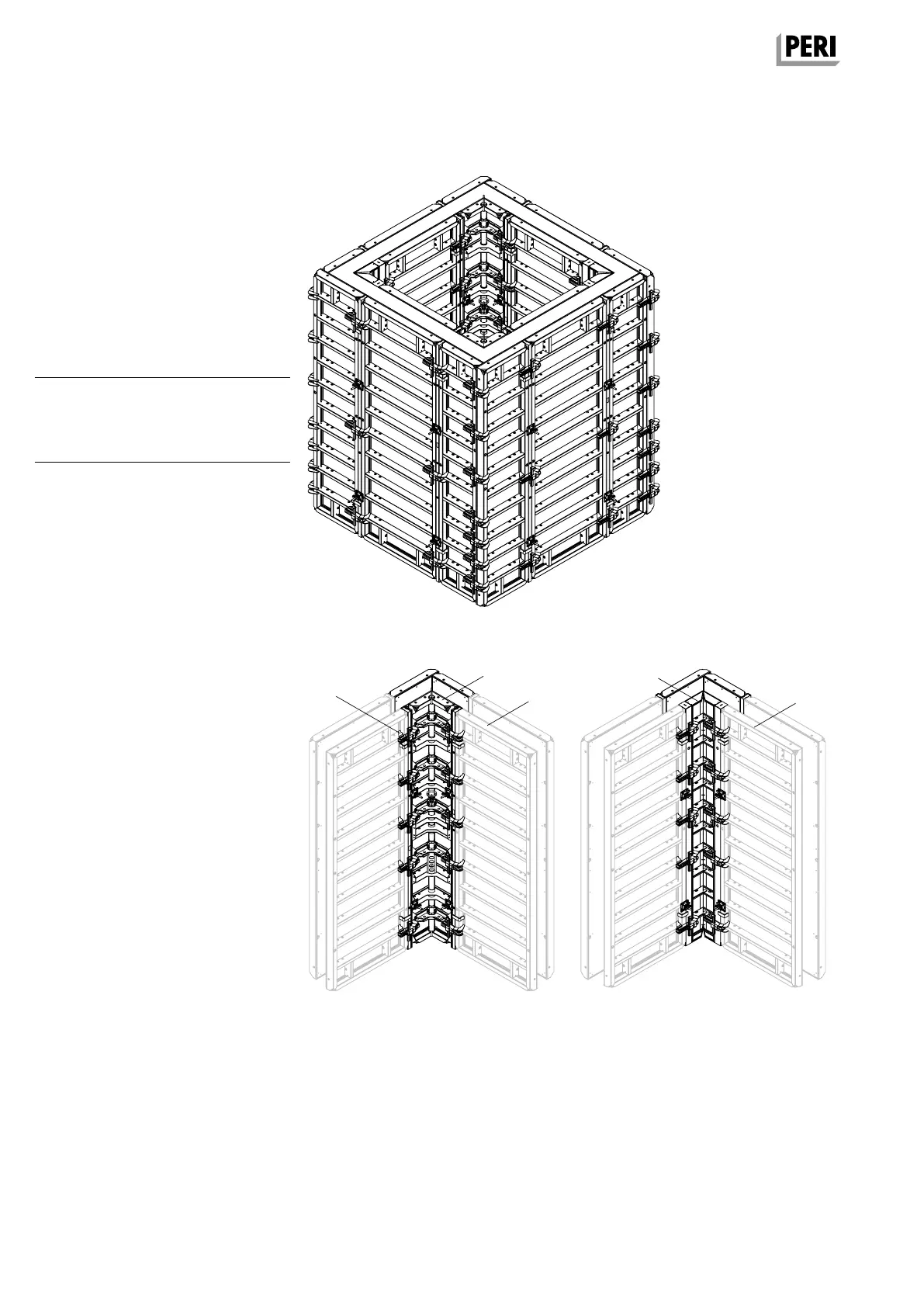

Shown:
– Shaft dimensions 2.50 m x 2.50 m
– Wall thickness 20 cm
(Fig. A17.12 + A17.12a + A17.12b)
Fig. A17.12
Fig. A17.12a
Fig. A17.12b
