A17 Shaft formwork
TRIO Panel Formwork
Instructions for Assembly and Use – Standard Configuration
Height 330
Shaft Corner TRIO
Four Shaft Corners 330
Height 330
Wall thickness 150/200/250
Internal shaft wall
Pos. Components Item no.
20 Alignment Coupler BFD 023500
46 Panel TRIO 330 x 120 054314
89 Shaft Corner TRIO 330 129945

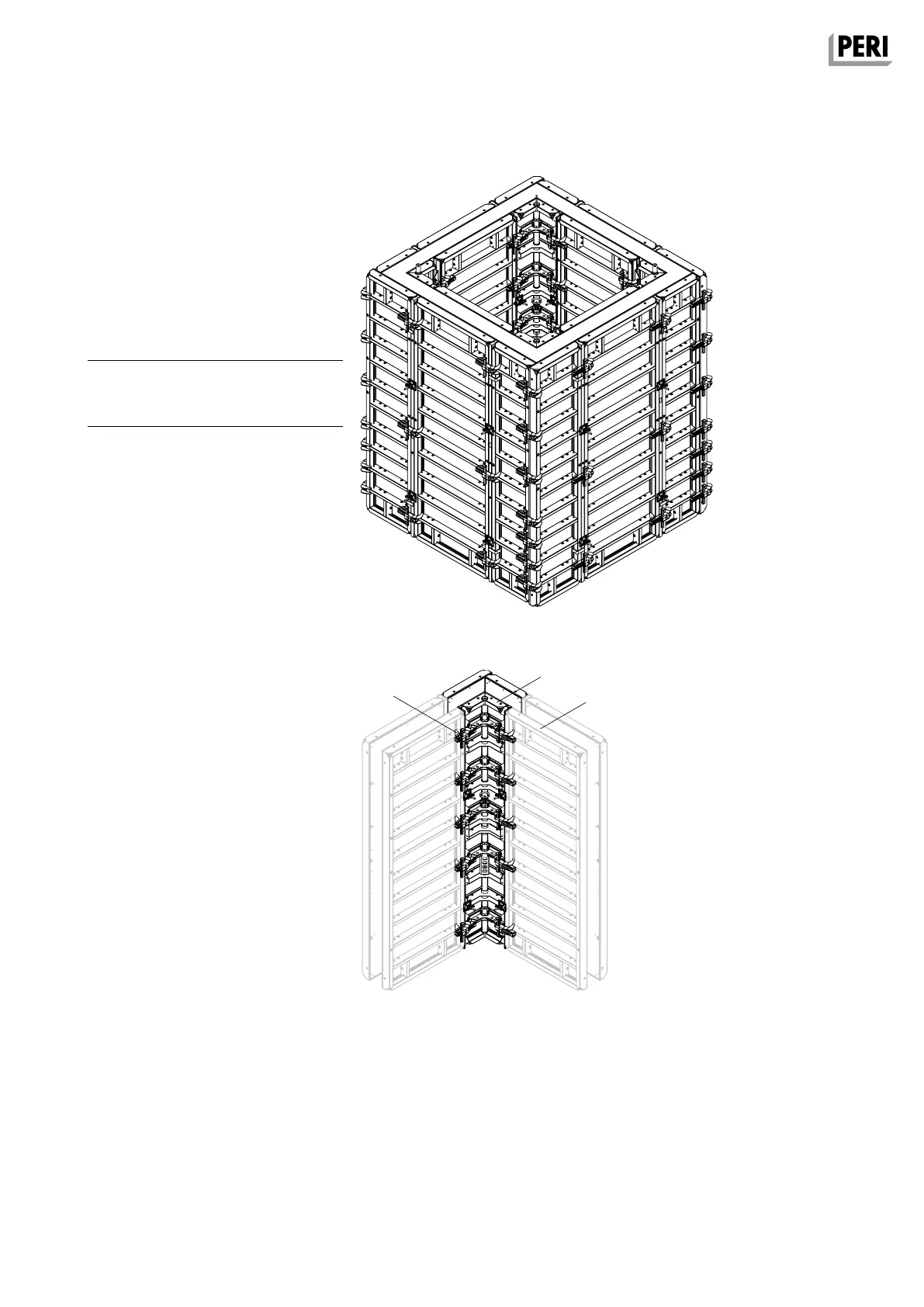

Arrangement of the Alignment
Couplers BFD
Shown:
– Shaft dimensions 2.50 m x 2.50 m
– Wall thickness 20 cm
(Fig. A17.13 + A17.13a)
Fig. A17.13
Fig. A17.13a
