LIFEPAK 500 automated external defibrillator Replacement Procedures
11-34
Reseating Main PCB Page 2 of 2
5. (LIFEPAK 500 Biphasic AED equipped with Readiness Display only): Check
the seating of the Readiness Display, making sure it is snug in the indexing
recess in the handle. Route the Readiness Display cable in the handle and
across the Main PCB. Reconnect P20 to J20 on the Main PCB.
6. Install the Main PCB onto the four PCB mounts.
After you have installed the Main PCB, jump to the Reassembling Case
procedure.

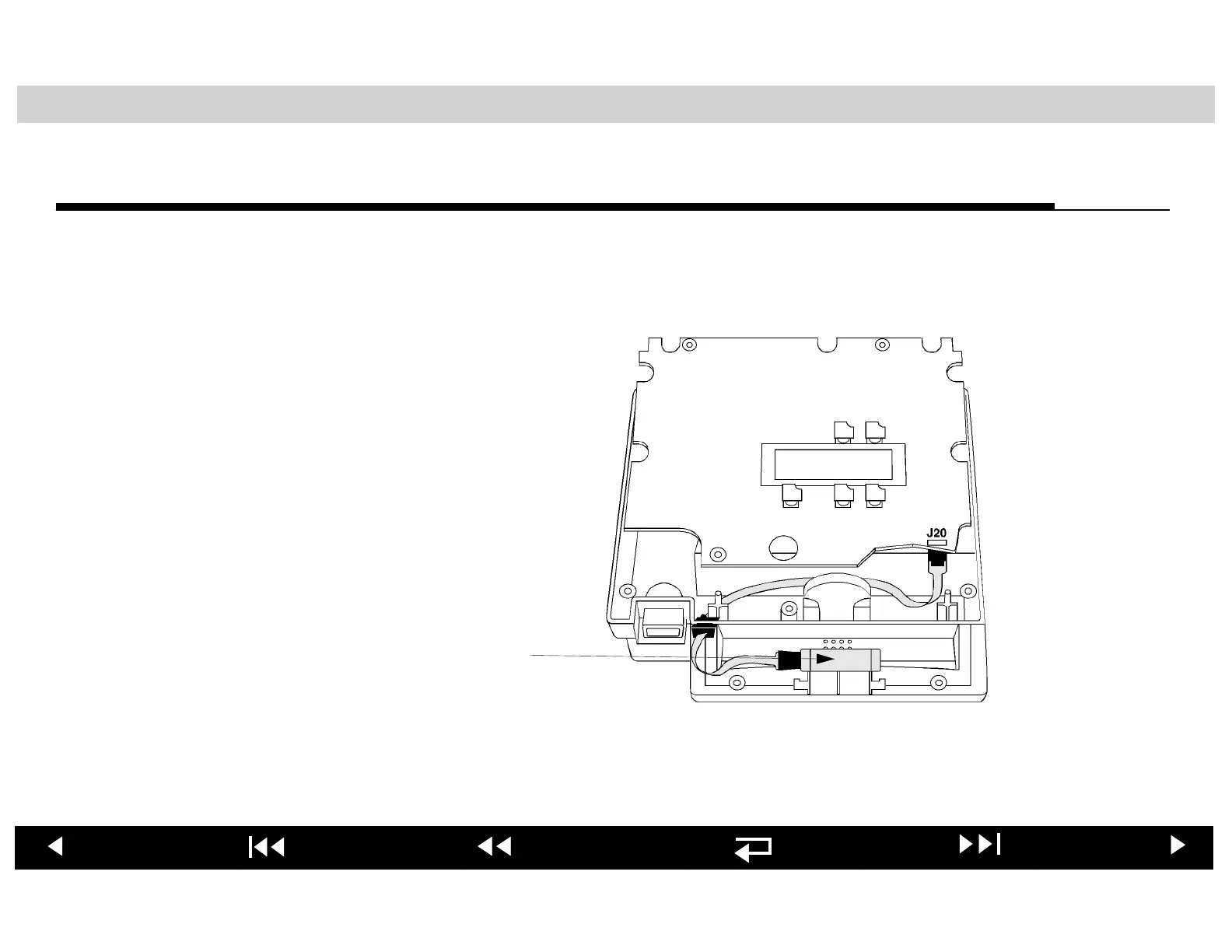

Readiness
Display
To Next Page
