LIFEPAK 500 automated external defibrillator Replacement Procedures
11-54
Replacing Battery Plate Wire Harness Page 1 of 3
Preparation Before replacing the Battery Plate Wire Harness, you must first follow these
procedures:
Removing Top Cover
WARNING!
Shock hazard. The Energy Storage Capacitor carries high voltage.
Remove the battery and discharge the capacitor before handling. See:
Discharging Energy Storage Capacitor
Removing Main PCB—Monophasic AED or Removing Main PCB—
Biphasic AED
To replace the Battery Plate Wire Harness:

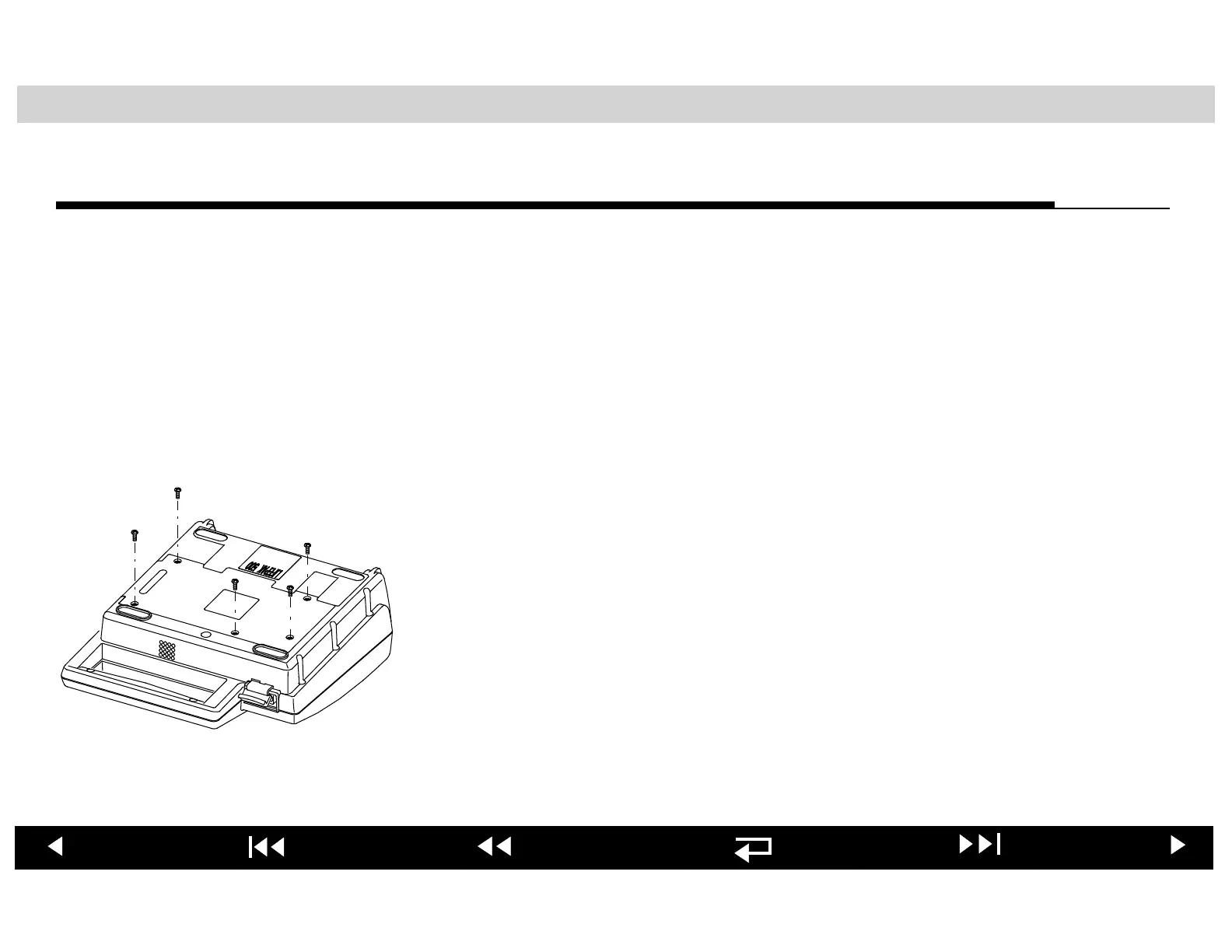

1. Remove and discard the five screws that attach the battery cavity plate to the
underside of the lower enclosure. Remove the battery cavity plate.
2. Remove the double-stick tape and clean away any double-stick tape residue
from the lower case and battery plate using isopropyl alcohol.
3. Identify the two connector pins in the battery cavity plate as shown on the
next page.
