LIFEPAK 500 automated external defibrillator Replacement Procedures
11-55
Replacing Battery Plate Wire Harness Page 2 of 3

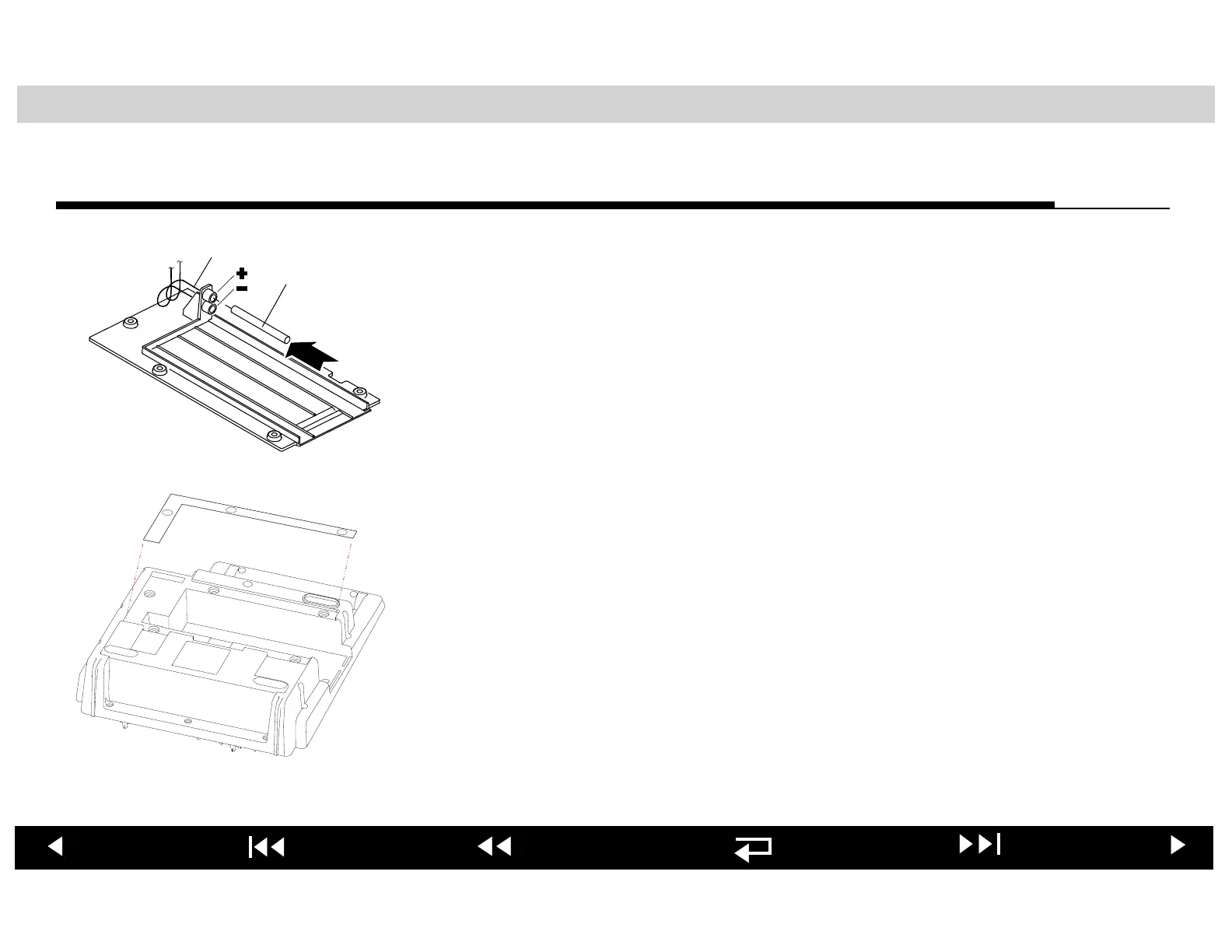

4. To extract a battery pin, slide a section of metal tubing with a 1/4-inch
nominal outside diameter and 7/32-inch nominal inside diameter over the
battery pin you wish to remove. The metal tubing defeats the connector pin
locks. Gently pull on the connector pin crimp barrel to remove the pin. Do not
pull on the battery harness wires.
5. Repeat the process for the other battery pin.
6. Use a blunt tool to gently push the harness grommet through the hole in the
lower enclosure.
7. Add the die-cut adhesive to seal the cavity as shown at the left.
8. Install a replacement battery plate wire harness and grommet into the lower
enclosure. It may be necessary to use a blunt tool to gently push the
grommet into place.
9. Insert the battery pins into their respective sockets in the battery cavity plate.
Make sure you insert the red wire connector pin into the positive pin socket
(indicated in the figure by a plus sign) and the black wire connector pin into
the negative pin socket (indicated by a minus sign).
Red
Wire
Metal
Tubing
