LIFEPAK 500 automated external defibrillator Replacement Procedures
11-69
Replacing Patient Connector Harness—Monophasic AED Page 1 of 4
Application Perform this procedure to replace the Patient Connector Harness on the
LIFEPAK 500 Monophasic AED. To replace the connector harness on the
LIFEPAK 500 Biphasic AED, jump to the Replacing Patient Connector
Harness—Biphasic AED procedure.
Preparation Before replacing the Patient Connector Harness, you must first follow these
procedures:
■ Removing Top Cover
WARNING!
Shock hazard. The Energy Storage Capacitor carries high voltage.
Remove the battery and discharge the capacitor before handling. See:
■ Discharging Energy Storage Capacitor
■ Removing Main PCB—Monophasic AED
To remove the Patient Connector Harness:
1. Carefully cut and remove tie-wraps #1, #2, #3, and #4.
2. Gently pull aside the perimeter seal over the top of the patient connector.
3. Lift the patient connector out of the lower enclosure.

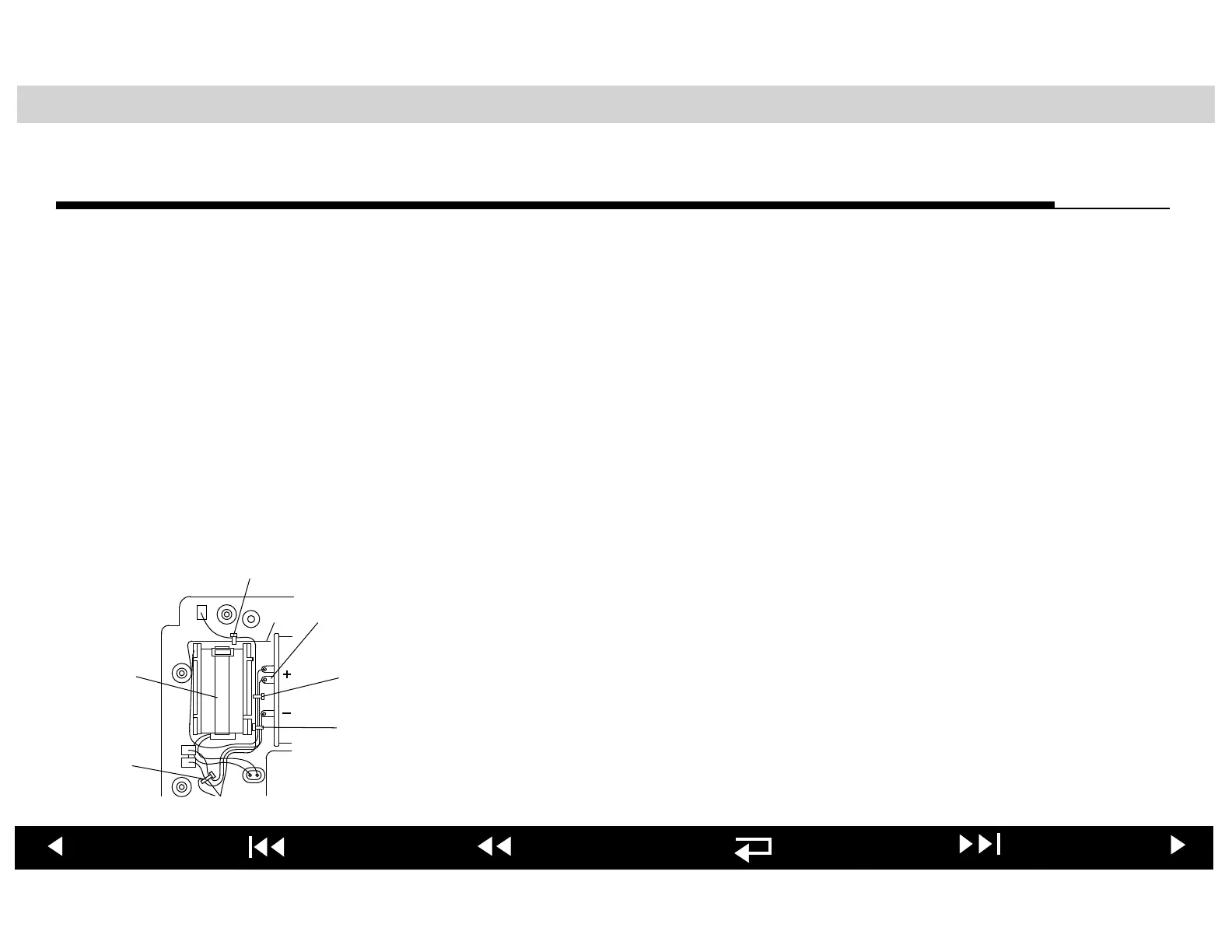

J4
J1
J2
J12
To J14
Tie-Wrap #1
Tie-Wrap
#2
P13
Tie-Wrap
#3
Tie-Wrap
#4
Inductor
Tie-Wrap
