LIFEPAK 500 automated external defibrillator Replacement Procedures
11-70
Replacing Patient Connector Harness—Monophasic AED Page 2 of 4
To install the new Patient Connector Harness:

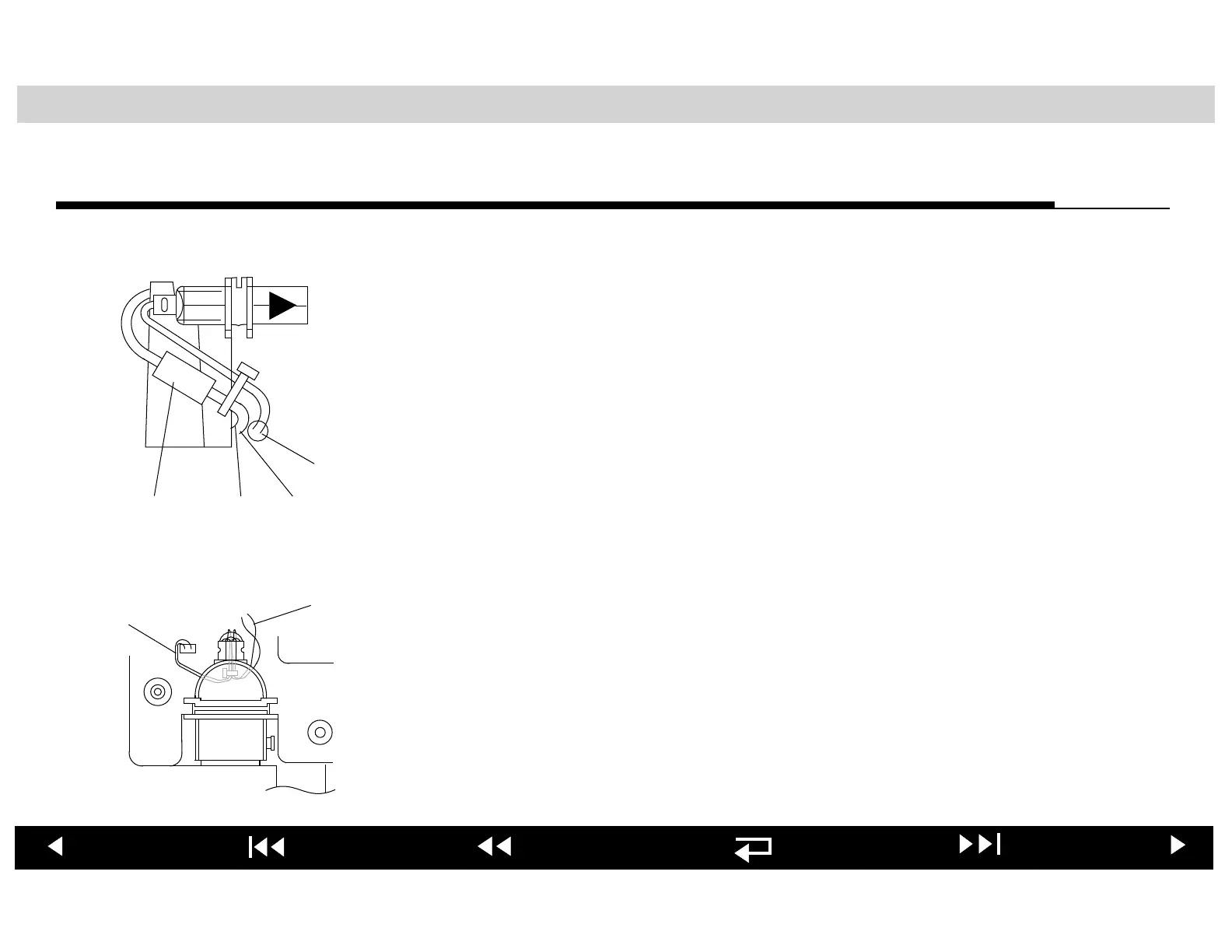

1. Bend the four patient connector wires 180 degrees under the patient
connector body as shown at left.
2. Securely tie-wrap the four wires emerging from the patient connector body
just below the ferrite bead.
3. Holding the wires under the connector body, slide patient connector into the
lower enclosure. The white wires exit to the left, the red wires exit to the right.
Refer to the diagram at the lower left.
4. Reinstall the perimeter seal along the top of the patient connector.
5. Complete the Patient Connector Harness installation as described on
the next page.
J3
Top View
White
to J3
Red
to J2
Red
to J4
Ferrite
Bead
Side View
Red
Wires
White
Wires
