LIFEPAK 500 automated external defibrillator Replacement Procedures
11-65
Replacing Wave Shaping Inductor—Monophasic AED Page 1 of 3
Application The Wave Shaping Inductor is a component of the LIFEPAK 500 Monophasic
AED only.
Preparation Before replacing the Wave Shaping Inductor, you must first follow these
procedures:
■ Removing Top Cover
WARNING!
Shock hazard. The Energy Storage Capacitor carries high voltage.
Remove the battery and discharge the capacitor before handling.
■ Discharging Energy Storage Capacitor
■ Removing Main PCB—Monophasic AED

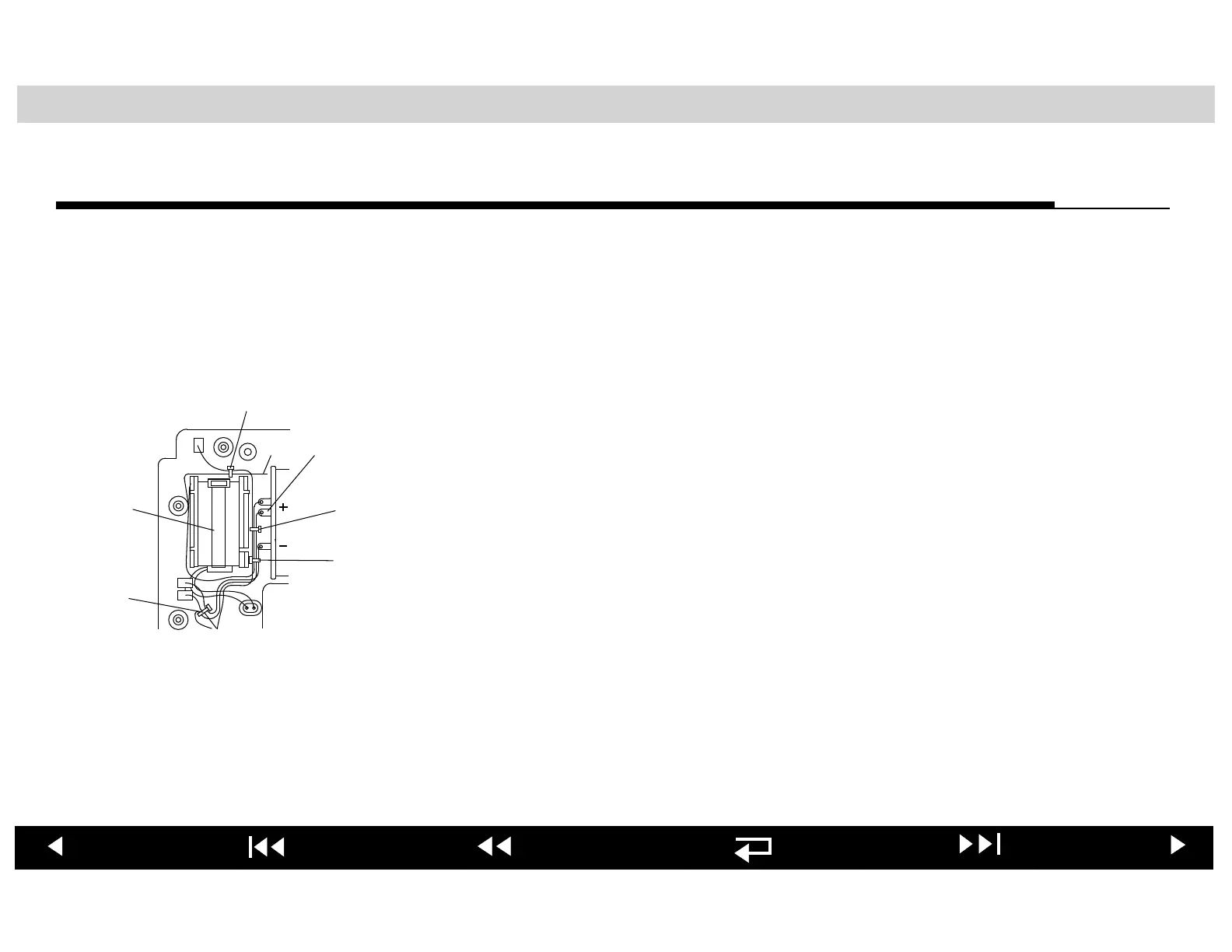

To remove the Wave Shaping Inductor:
1. Remove the inductor tie-wrap.
2. Carefully cut tie-wraps #1, #2, and #3.
3. Carefully remove the inductor and disconnect P13 from the capacitor.
J4
J1
J2
J12
To J14
Tie-Wrap #1
Tie-Wrap
#2
P13
Tie-Wrap
#3
Tie-Wrap
#4
Inductor
T
ie-Wrap
