LIFEPAK 500 automated external defibrillator Replacement Procedures
11-68
Replacing Inductive Resistor—Biphasic AED
Application The Inductive Resistor is a component of the LIFEPAK 500 Biphasic AED only.
Preparation Before replacing the Inductive Resistor, you must first follow these procedures:
■ Removing Top Cover
WARNING!
Shock hazard. The Energy Storage Capacitor carries high voltage.
Remove the battery and discharge the capacitor before handling. See:
■ Discharging Energy Storage Capacitor
■ Removing Main PCB—Biphasic AED
■ Replacing Biphasic PCB—Biphasic AED

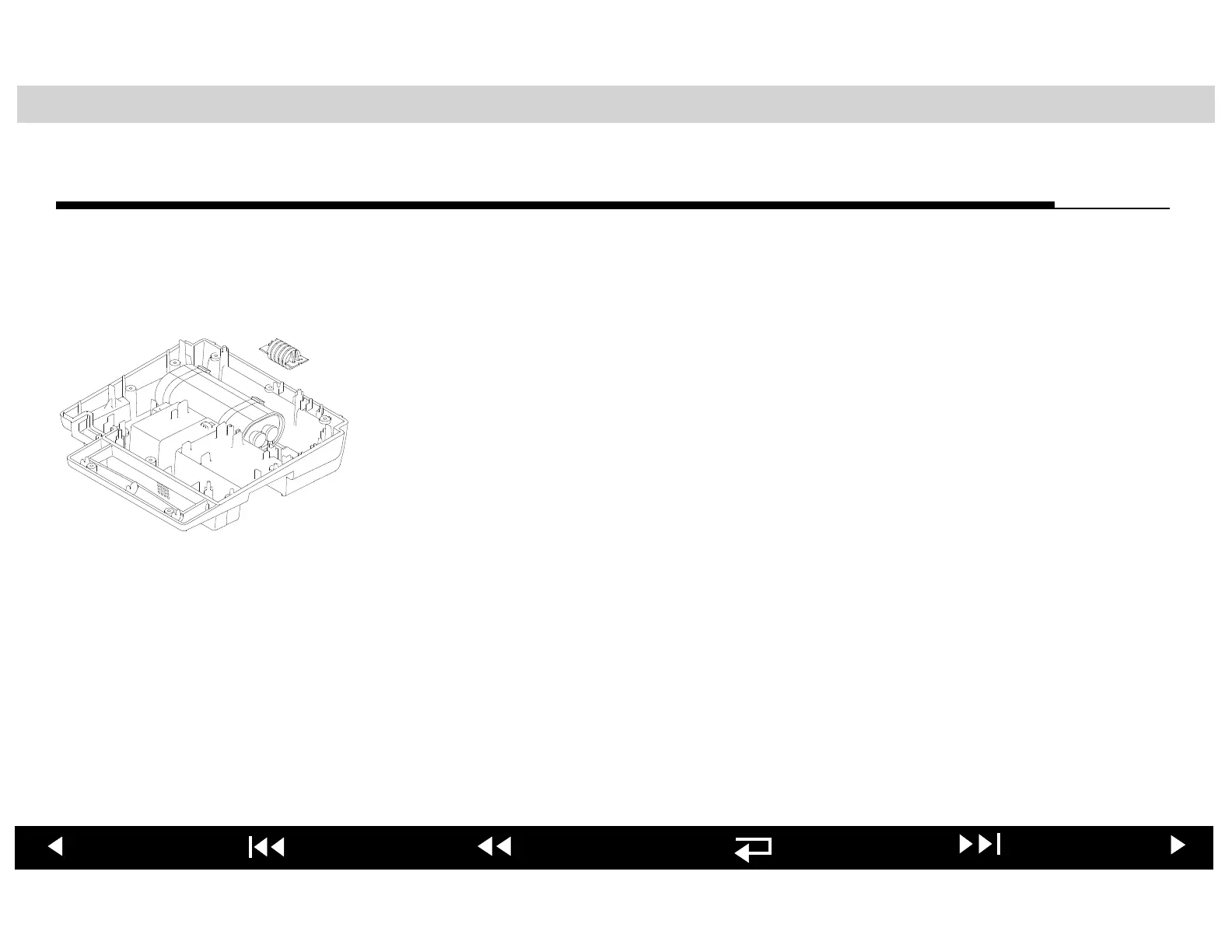

To replace the Inductive Resistor:
1. Carefully disconnect P102 and P108 from the Biphasic PCB, gently push the
retaining tab, and slide the Inductive Resistor straight up out of its cavity.
2. Seat the new Inductive Resistor such that the wire exits toward the bottom
side, and route the wire toward the rear of the case.
3. Connect spade-lug P102 to J102 and P108 to J108 on the Biphasic PCB.
To Next Page
