LIFEPAK 500 automated external defibrillator Replacement Procedures
11-67
Replacing Wave Shaping Inductor—Monophasic AED Page 3 of 3

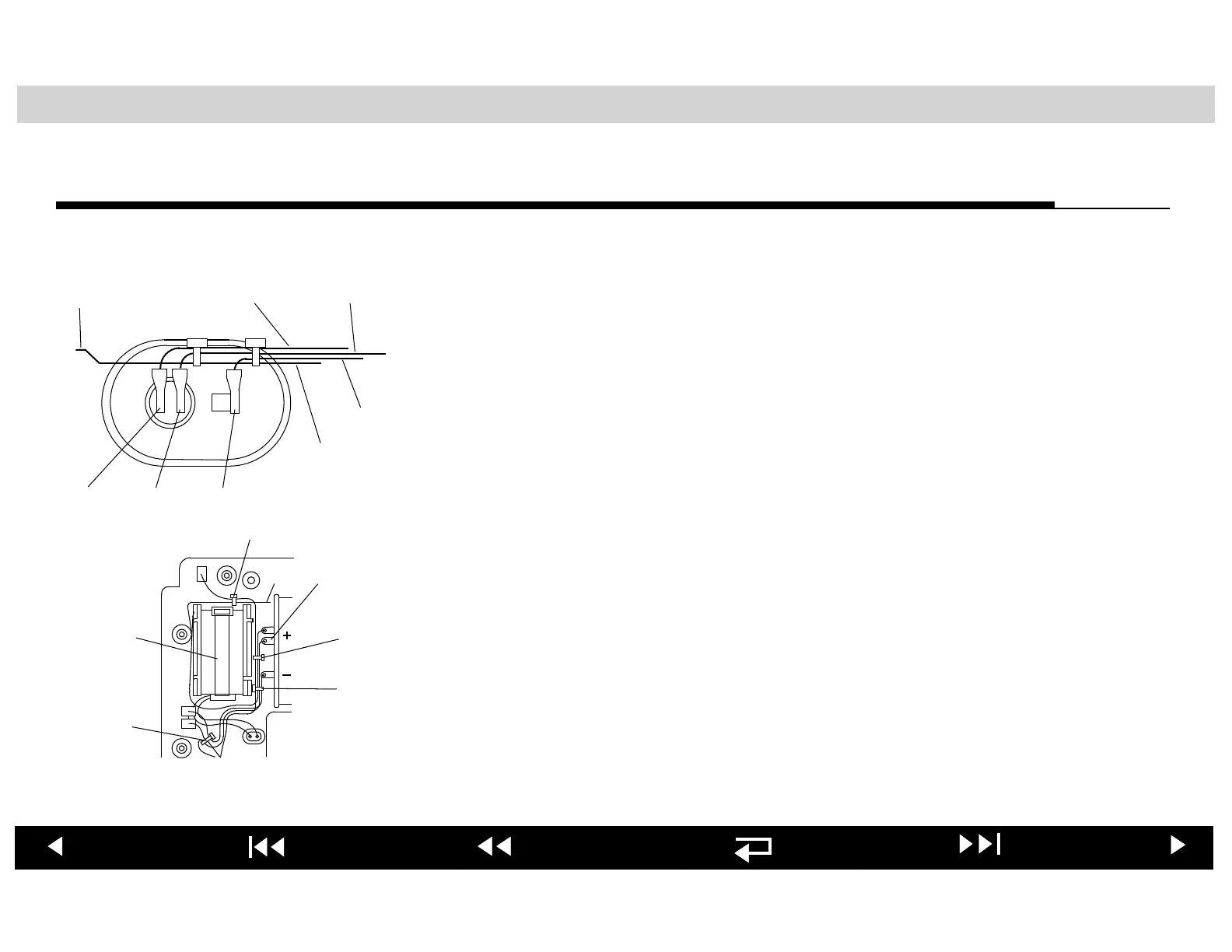

4. Route the wires over the capacitor terminals as shown at left.
5. Loosely install a new tie-wrap #3 as shown at the left.
6. Dress the wires as shown in the wire routing illustration at left. Tighten the
tie-wraps. Clip and discard the tie-wrap ends.
7. Loosely install a new tie-wrap #1.
Note: After completing the Installing Main PCB—Monophasic AED
procedure, tighten tie-wrap #1. Clip and discard the tie-wrap end.
8. Installation is complete. Jump to the Installing Main PCB—Monophasic
AED procedure and then to the Reassembling Case procedure.
To Inductor
To J5
To J1
To J2
To Patient
Connector
Pin 4
C1+
C1-
P13
J4
J1
J2
J12
To J14
Tie-Wrap #1
Tie-Wrap
#2
P13
Tie-Wrap
#3
Tie-Wrap
#4
Inductor
Tie-Wrap
