LIFEPAK 500 automated external defibrillator Replacement Procedures
11-41
Installing Main PCB—Monophasic AED
Application The following procedure describes the reinstallation of a Main PCB that was
removed to gain access to other AED assemblies. For installation of a new Main
PCB assembly in a LIFEPAK 500 Monophasic AED, follow the Replacing Main
PCB—Monophasic AED procedure.
To install the Main PCB:
1. Connect the five spade-lugs P1, P2, P4, P5, and P14 to the Main PCB J1,
J2, J4, J5, and J14.
Note: It is critical that the wire connected to J5 on the Main PCB is oriented so
that it exits the PCB and routes directly down toward the lower case cavity. It is
important that the wire does not loop back onto or near the PCB itself.
2. Connect P12 of the power cable to J12 of the Main PCB.
3. Connect P3 of the serial cable to J3 of the Main PCB.

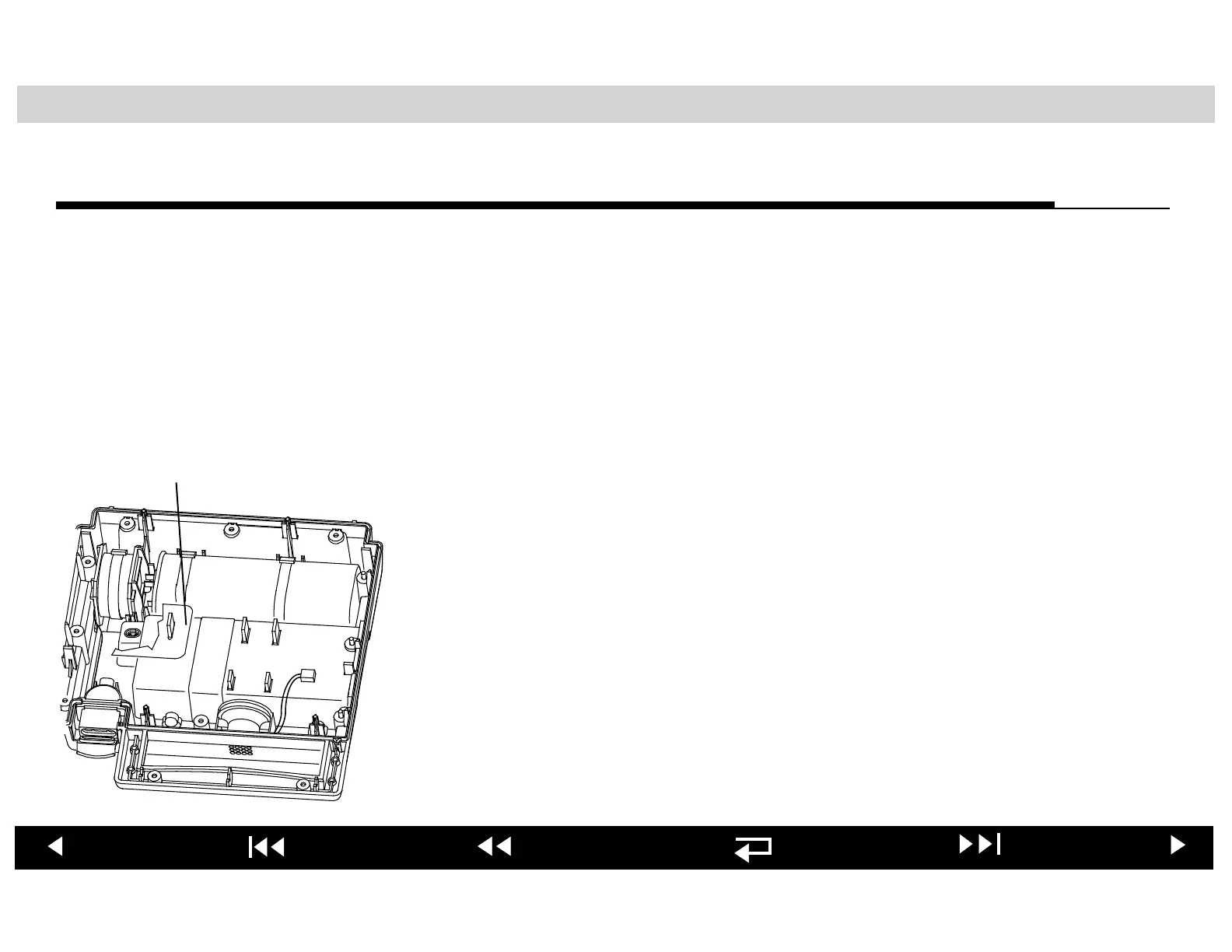

4. Install the wire harness shield as shown at the left.
5. Reposition the Main PCB over the four lower case PCB mounts.
6. Connect P9 of the speaker cable to J9 of the Main PCB.
7. Install the Main PCB onto the four PCB mounts.
After you instal the Main PCB, jump to the Reassembling Case procedure.
Wire Harness
Shield
