Fasten design frame

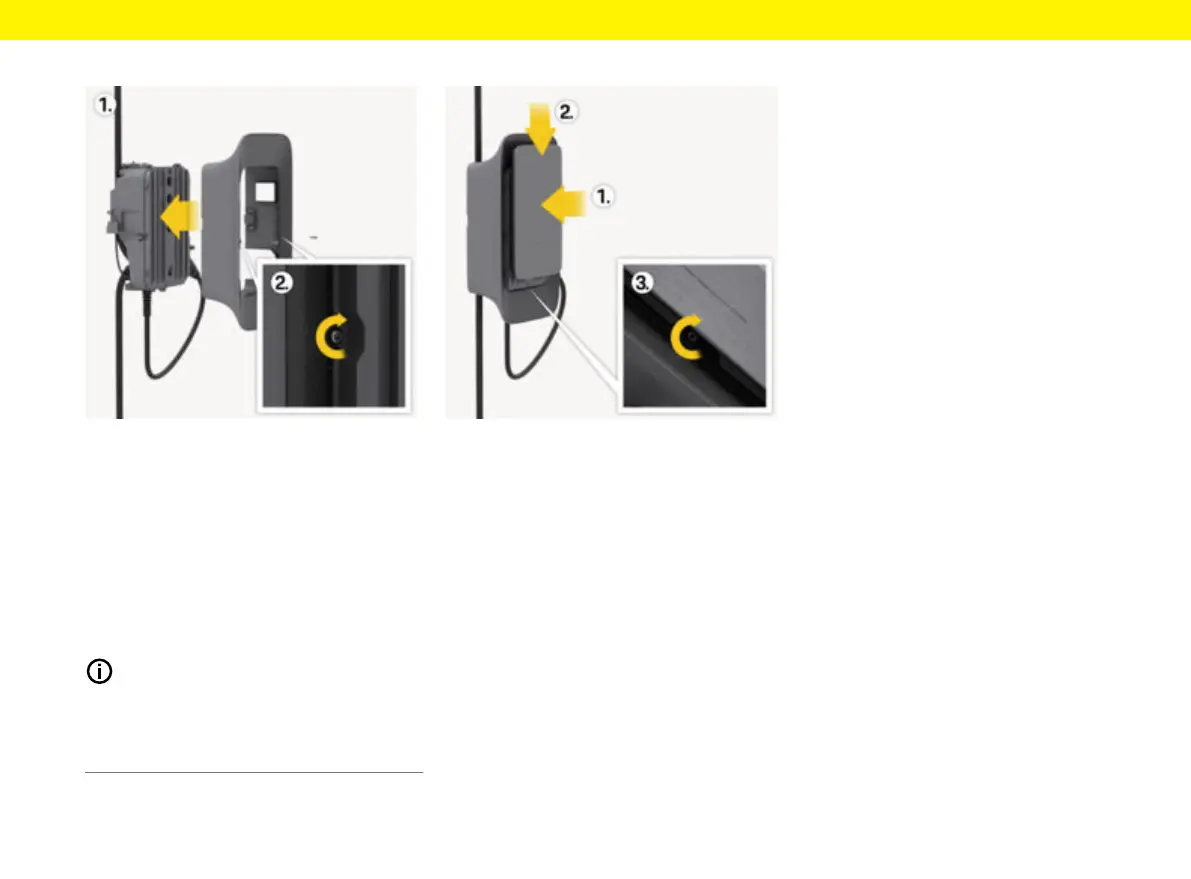

Fig.17: Fastening the design frame
1.
Push the design frame into the guide.
2.
Fasten le and right with one 5x20 T25 screw
each.
Attach user seal
Applies to: Porsche Wallbox in acc. w. the calibration
law
Seal one of the screws on the lid using the user seal
supplied.
Information
The round and the rectangular manufacturer's seals
as well as the user seal must not be broken. Other-
wise conformity of the unit with the calibration law
will be void.
Attach the design front
Fig.18: Fastening the design front
1.
Insert the design front into the lateral guide rails.
2.
Slightly push it downwards to secure it in the
guide.
3.
Secure it to the lower edge with a screw.
