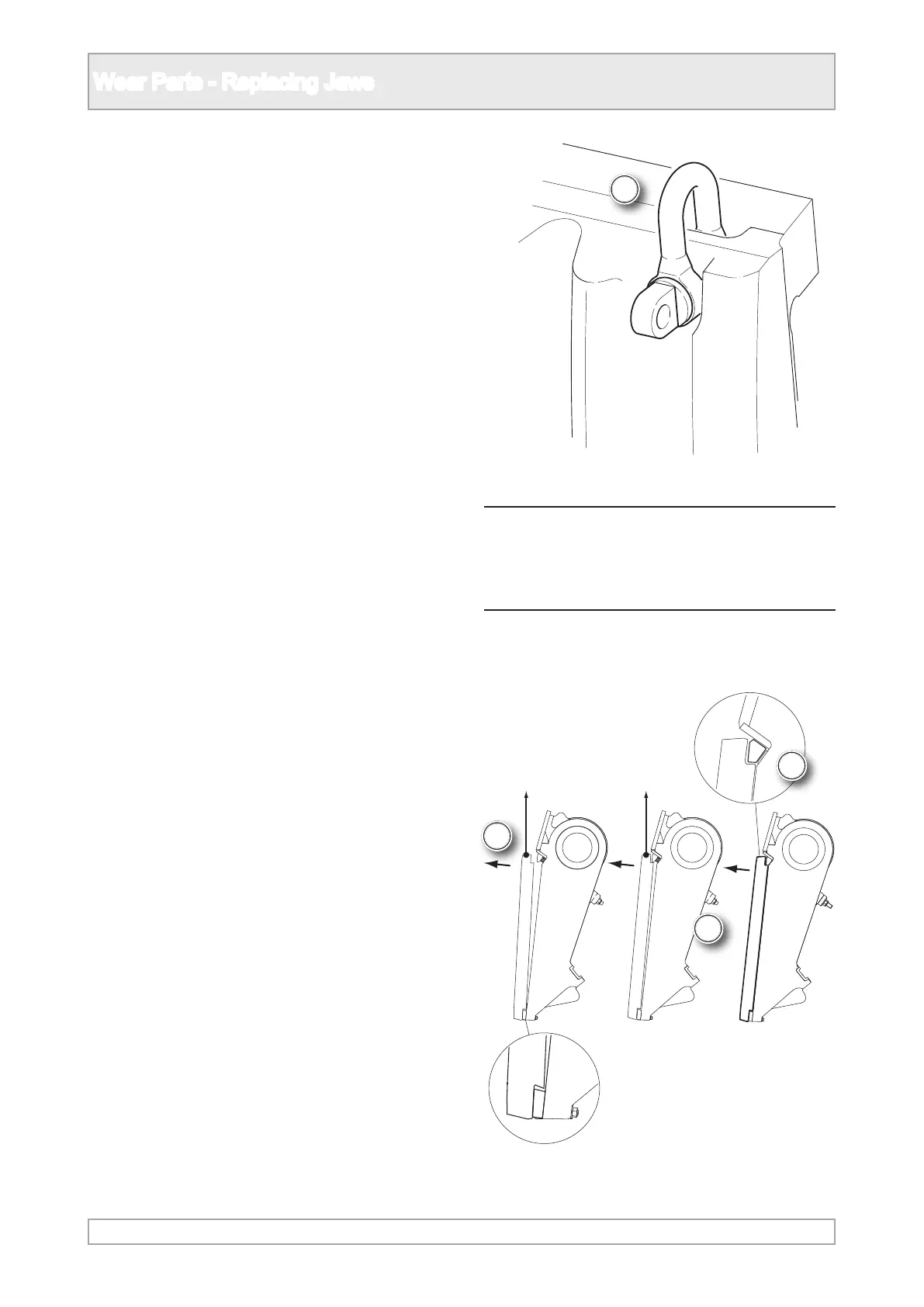

Wear Parts - Replacing Jaws
n DANGER
Only use lifting equipment suitable for the
work to be carried out.
9. Unscrew the jaw clamp nuts at the rear of the
jaw holder until they are level with the end of
the threads.
10. Protect the threads on the bolts and nuts and
strike the bolt to loosen the wedges.
11. Springs are tted below the bolt heads to help
release the wedges.
12. Move the top of the jaw forward using a
suitable winch and lift it out of the crusher
chamber.
Moving Jaw Removal
7. Fit suitable lifting shackles to the upper corners
of the jaw.
8. Fix suitable lifting equipment to the shackles
and support the weight using suitable lifting
equipment.
