Pro-face ST Series - Power Plug Specifications

ST Series User’s Manual
3-8

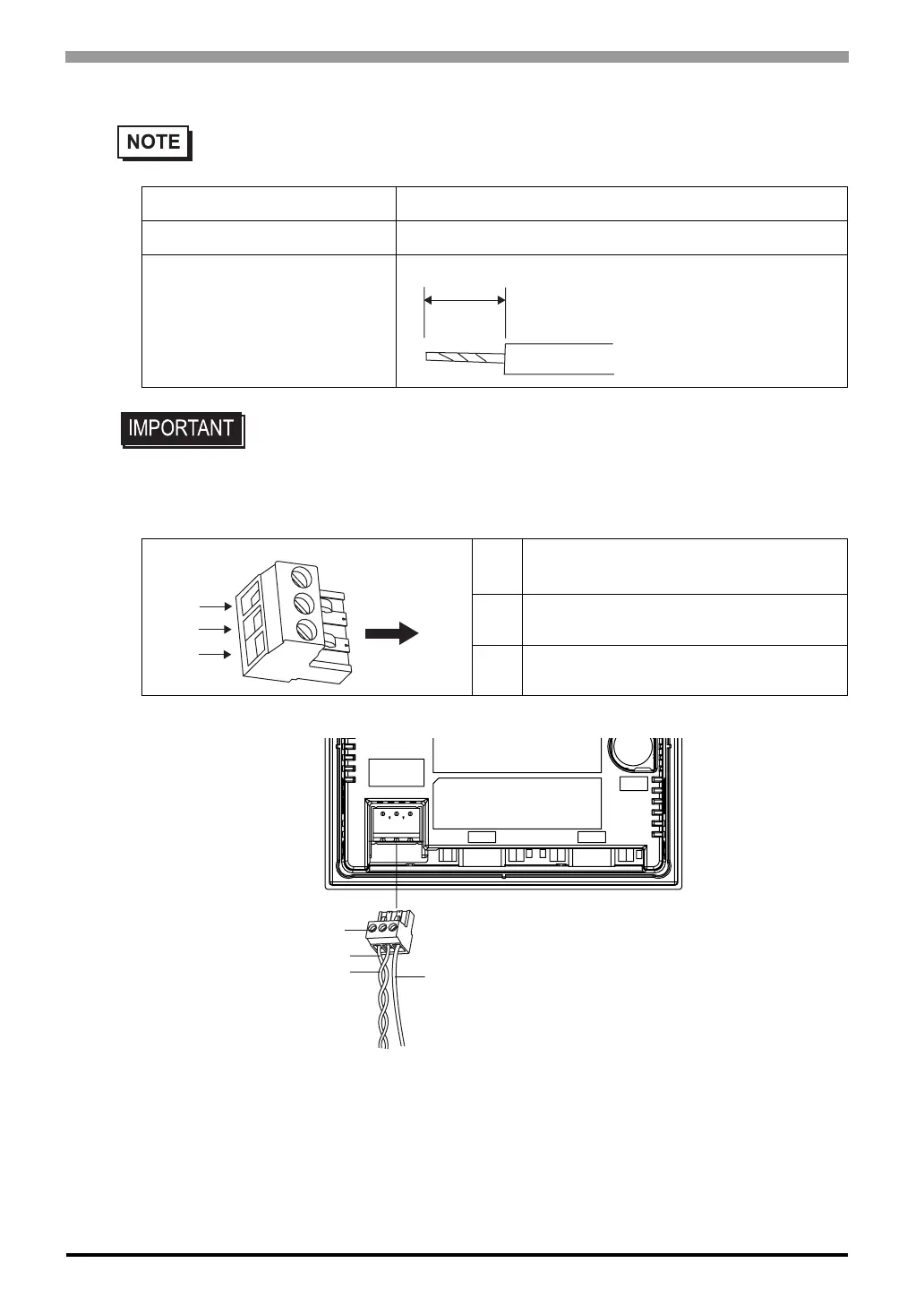

 Power Plug Specifications
(1) Be sure that the ST's power cord is not plugged in to the power supply.
(2) Remove the power plug form the ST unit.
(3) Insert each wire into the power plug’s wire hole.
(4) Replace the power plug.
• Power Cord Specifications
Power Cord Diameter 0.2 to 2.5 mm
2
(0.0001 to 0.0097 inch
2
) (24 to 12 AWG)
Conductor Type Simple or Twisted Wire
Conductor Length
• If the Conductor's end (individual) wires are not twisted correctly, the end wires
may either short against each other, or against an electrode.
+24V
-0V
FG Grounding Terminal connected to the ST.
7mm
+
-
FG
Insertion Direction
Terminal block
wire set screws
+
FG
-
Rear face of ST
