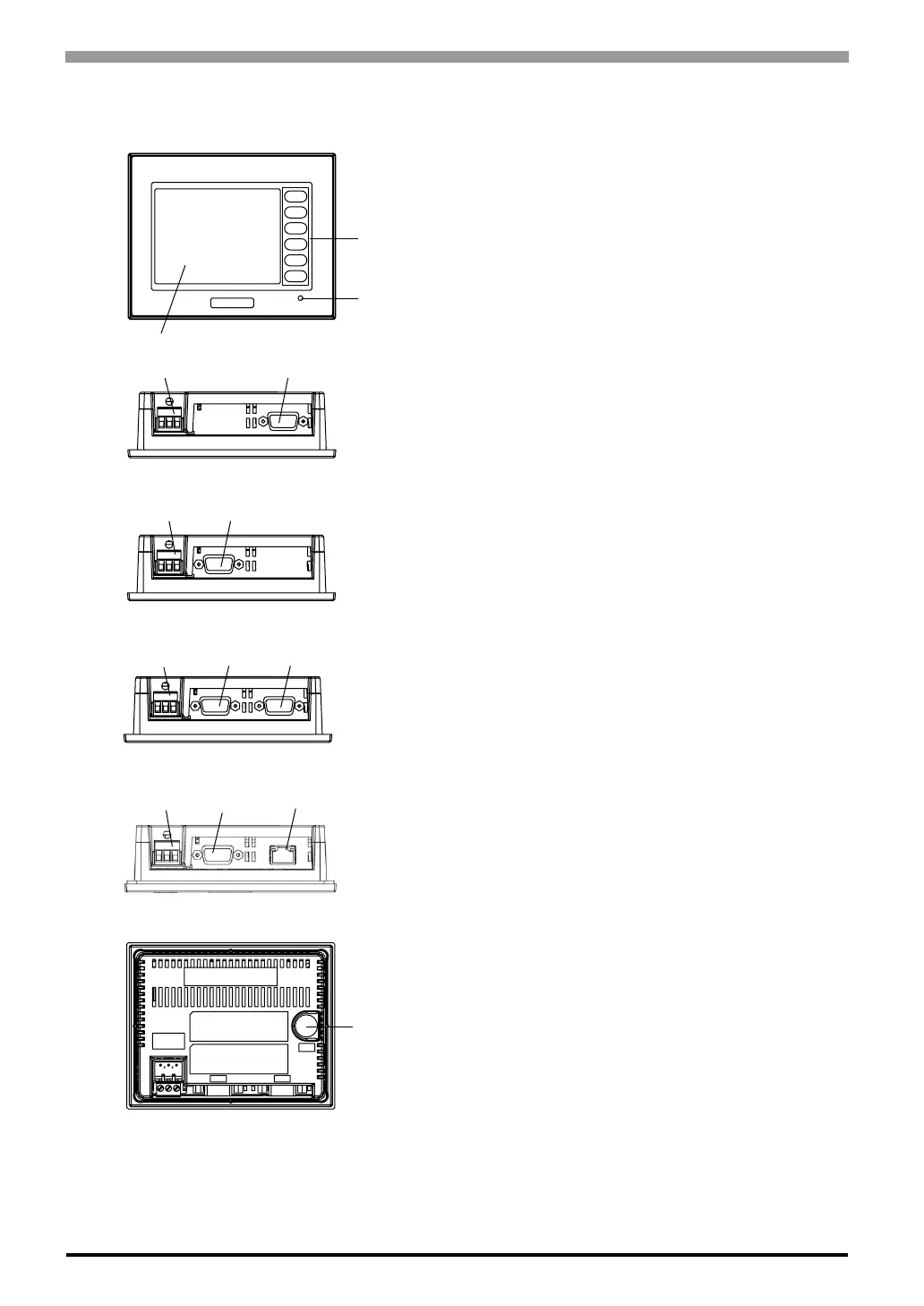

2.4 Part Names and Functions
L
Rear
ST400-AG41-24V Bottom
E
F
ST401-AG41-24V Bottom
E
G
ST402-AG41-24V Bottom
E
I H
C
D
A, B
Front
F1
F1
F2
F2
F3
F3
F4
F4
F5
F5
F6
F6
ST403-AG41-24V Bottom
J
K
E
A: Display
B: Touch Panel
C: Function Switch (F1 to F6)
D: Power Lamp
E: Power Plug
F: RS-422 Interface (X)
G: RS-232C Interface (Y)
H: RS-485(MPI) Interface (X)
I: RS-422 Interface (Y)
J:Ethernet Interface (X)
K:RS-232C/RS-422 Interface (Y)
L: Tool Connector (TOOL)
