The following overviews familiarize you with the specific screen elements in Route mode.

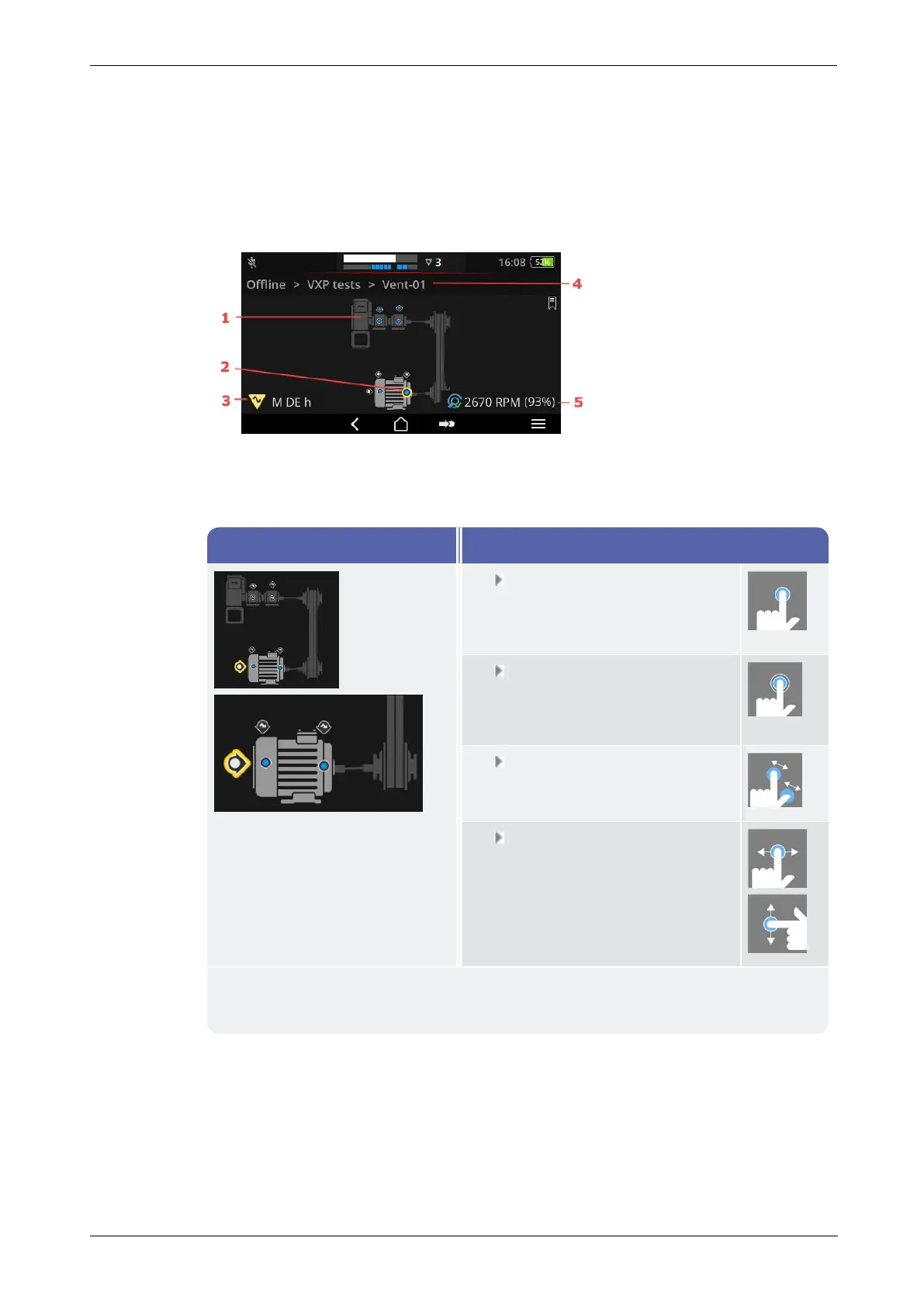

Machine image view
The machine image view is the main screen in route mode. The following elements are rel-
evant in the display field:
o
1: Machine image
o
2: Measurement loc-
ation icon
o
3: Measurement loc-
ation information
o
4: Navigation path
o
5: Speed information
1: Machine image Operation
Select the first unmeasured
measurement location on the
machine.
Zoom into the machine image
by a factor of 2 and center it
(double tap)
Zoom in/zoom out the ma-
chine image continuously.
Move the display area.
o
Realistic presentation of the machine configuration and measurement location
layout on the machine.
36 Edition: 11.2017
3 - Operation
